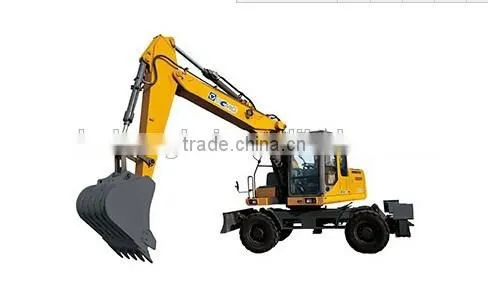

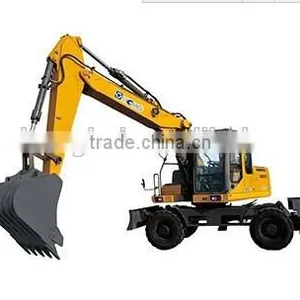

XCMG XE150W Hydraulic Wheel Excavator With 0.58 M3 Bucket

Name: XCMG XE150W Hydraulic Wheel Excavator With 0.58 M3 Bucket
Brand: XCMG
SKU: 112296789

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Model Number:

XE150W

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHINA PORT

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XE150W

Condition New

Moving Type Wheel Excavator

Operating Weight 15318 kgs

Bucket capacity 0.58

Maximum Digging Height Max. digging height

Maximum Digging Depth Max. digging depth

Rated Speed 30/11 km/h

XCMG XE150W hydraulic wheel excavator with 0.58 M3 bucket

item	unit	parameter
operater weight	kg	15318
bucket capacity	m³	0.58
engine model
model		QSB4.5
engine model	kW/ r/min	104/2000
Max. torque/speed	N.m	586
displacement	L	4.5
Fuel tank capacity	L	250
hydraulic system
main pump		2 plunger pumps
Rate flow of main pump	L/min	2×160
relief valve pressure	MPa	31.4/34.3
hydraulic oil tank capacity	L	135
The main performance
Swing speed	r/min	13.7
Max.Bucket digging force	kN	90
Max.arm crowd force	kN	65
Max.traction force	kN	136
Travel speed	km/h	30/11
Max. gradeability		30
Overall dimensions
A Overall length	mm	6482
B Overall width	mm	2552
C Overall height	mm	3158
D Clearance under counter weight	mm	1230
E Ground clearance	mm	359
F Min.tail swing radius	mm	2300
G Track length on ground	mm	2800
H Crawler gauge	mm	1920
I Overall width of undercarriage	mm	2495
the length from front axle to the rotary centers	mm	1700
K Clearance under engine hood	mm	2430
Working range
Max. digging reach	mm	8296
Max. digging height	mm	9150
Max. dumping height	mm	6684
Max. digging depth	mm	5040
8inch horizonal digging depth	mm	4825
