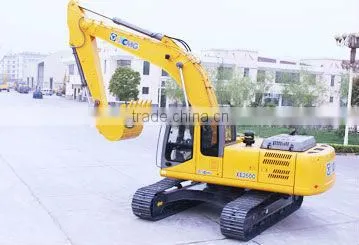

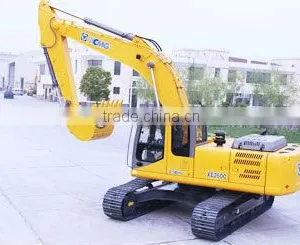

XCMG Crawler Excavator XE260C
Feature:
- The imported Isuzu engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve s the use security of the machine.
Advanced hydraulic system
- High-end configuration: The parts such as hydraulic pump, main valve, slewing motor, travel motor, cylinder, pilot control valve, etc. adopt international famous brands (KPM+KYB), guaranteeing the product quality.
- Integrate the latest research achievements, reducing the energy consumption, improving the design, and responding faster.
- Lock function of boom and arm: Prevent the boom and arm from falling, and prolong the time in neutral position.
- Oil return regeneration of arm: It can make the arm withdraw quickly and stably.
- Strong and precise slewing control: Improve the vibration absorption to ensure the slewing stop action more precise and stable.
Parameter:
| Model | XE260C | ||
| Bucket capacity | m3 | 1.1 | |
| Standard bucket width | mm | 1,356 | |
| Operation weight | kg | 24,670 | |
| Dimension(in transportation) | Overall length | mm | 10,160 |
| Overall width | mm | 2,990 | |
| Overall height | mm | 3,050 | |
| Min. clearance | mm | 485 | |
| Engine | Model | CC-6BG1TRP | |
| Total displacement | L | 6.494 | |
| Rated output power | KW/rpm | 125/2100 | |
| Digging Preformance | Max. digging height | mm | 9,670 |
| Max. dumping height | mm | 6,795 | |
| Max. digging depth | mm | 6,920 | |
| Max. vertical digging depth | mm | 6,165 | |
| Max. digging radius | mm | 10,270 | |
| Boom deflection angle | ° | ||
| Min. slew radius | mm | 3,870 | |
| Min. rear slew radius | mm | 2,940 | |
| Bucket digging force | kn | 163 | |
| Track type | Steel | ||
| Track width | mm | 600 | |
| Travel System | Track length | mm | 4,640 |
| Wheel base | mm | 3,842 | |
| Track gauge | mm | 2,590 | |
| Travel speed (Gear I/II) | km/h | 5.5/3.5 | |
| Gradeability | % | 70 | |
| Slew speed | rpm | 12.1 | |
| Bulldozing plate | Bulldozing plate width | mm | |
| Bulldozing plate height | mm | ||
| Lifting distance | mm | ||
| Hydraulic pump type | Variable pump×2 | ||
| Slew motor type | Piston hydraulic motor | ||
| Travel motor type | Piston hydraulic motor | ||
| Fuel tank capacity | L | 400 | |
| Hydraulic oil tank capacity | L | 240 | |
