XCMG Crawler Excavator XE230C1.Strong configuration, great performance, strong power, high efficiency
2.Advanced hydraulic

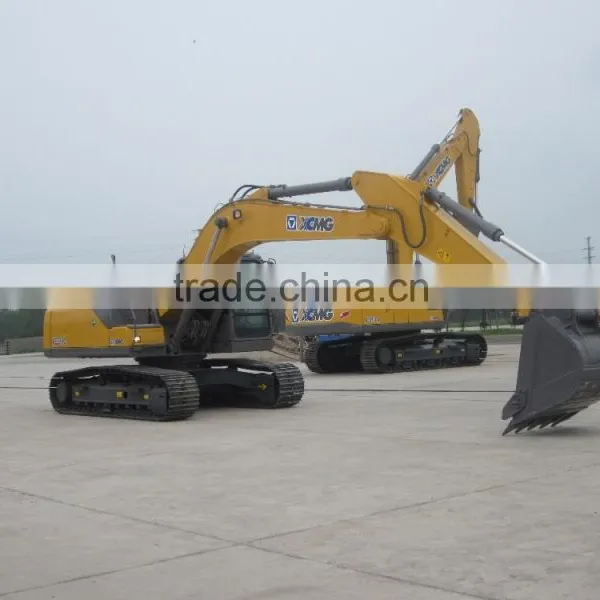

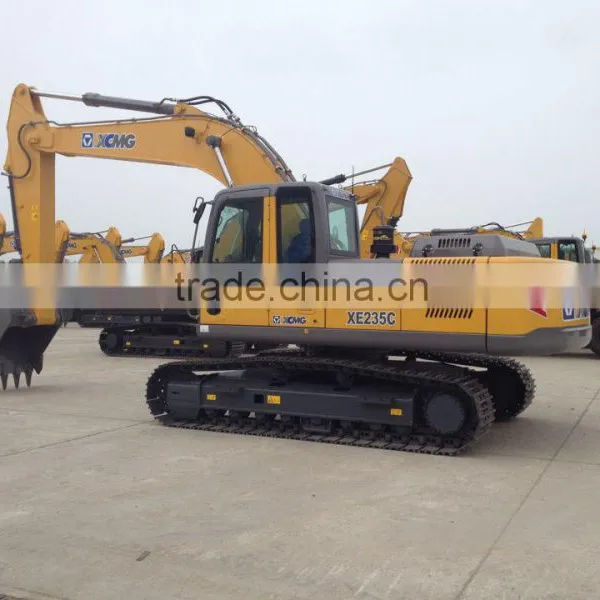

XCMG Crawler Excavator XE230C
Feature:
- The imported Isuzu engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve s the use security of the machine.
Advanced hydraulic system
- High-end configuration: The parts such as hydraulic pump, main valve, slewing motor, travel motor, cylinder, pilot control valve, etc. adopt international famous brands (KPM+KYB), guaranteeing the product quality.
- Integrate the latest research achievements, reducing the energy consumption, improving the design, and responding faster.
- Lock function of boom and arm: Prevent the boom and arm from falling, and prolong the time in neutral position.
- Oil return regeneration of arm: It can make the arm withdraw quickly and stably.
- Strong and precise slewing control: Improve the vibration absorption to ensure the slewing stop action more precise and stable.
Parameter:
Model |
XE230C |
||
Bucket capacity |
m3 |
1.0 |
|
Standard bucket width |
mm |
1,260 |
|
Operation weight |
kg |
23,520 |
|
Dimension(in transportation) |
Overall length |
mm |
10,160 |
Overall width |
mm |
2,990 |
|
Overall height |
mm |
3,050 |
|
Min. clearance |
mm |
485 |
|
Engine |
Model |
CC-6BG1TRP |
|
Total displacement |
L |
6.494 |
|
Rated output power |
KW/rpm |
125/2100 |
|
Digging performance |
Max. digging height |
mm |
9,670 |
Max. dumping height |
mm |
6,795 |
|
Max. digging depth |
mm |
6,920 |
|
Max. vertical digging depth |
mm |
6,165 |
|
Max. digging radius |
mm |
10,270 |
|
Boom deflection angle |
° |
|
|
Min. slew radius |
mm |
3,870 |
|
Min. rear slew radius |
mm |
2,940 |
|
Bucket digging force |
kn |
163 |
|
Track type |
Steel |
||
Track width |
mm |
600 |
|
Travel System |
Track length |
mm |
4,255 |
Wheel base |
mm |
3,462 |
|
Track gauge |
mm |
2,390 |
|
Travel speed (Gear I/II) |
km/h |
5.5/3.5 |
|
Gradeability |
% |
70 |
|
Slew speed |
rpm |
12.1 |
|
Bulldozing plate |
Bulldozing plate width |
mm |
|
Bulldozing plate height |
mm |
|
|
Lifting distance |
mm |
|
|
Hydraulic pump type |
Variable pump×2 |
||
Slew motor type |
Piston hydraulic motor |
||
Travel motor type |
Piston hydraulic motor |
||
Fuel tank capacity |
L |
400 |
|
Hydraulic oil tank capacity |
L |
240 |
|
