Specifications
Welding Rotator1. Pressure vessels
2. Pipe manufacturing industries
3. Wind power fabrication

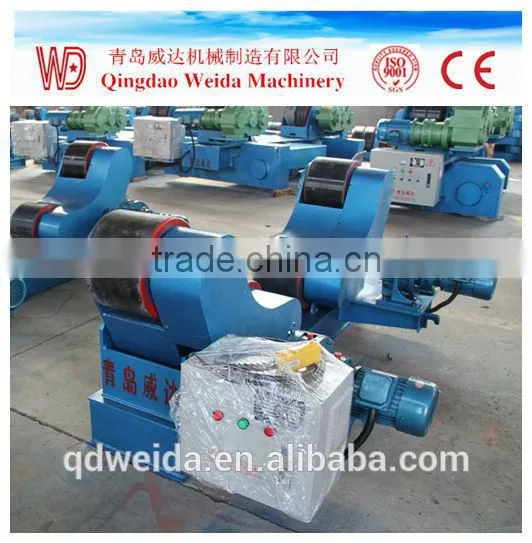

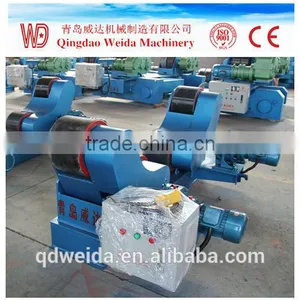

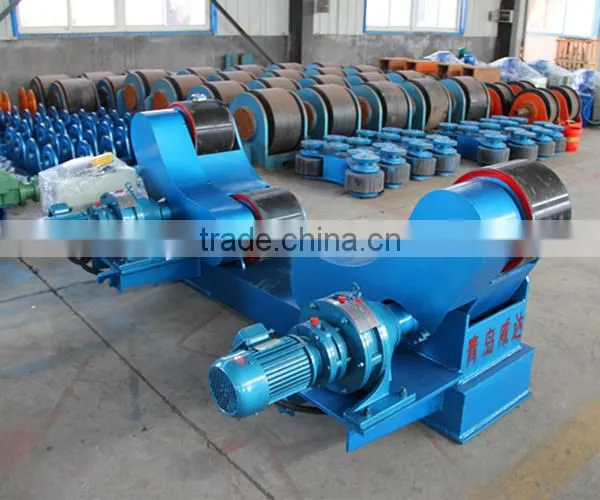

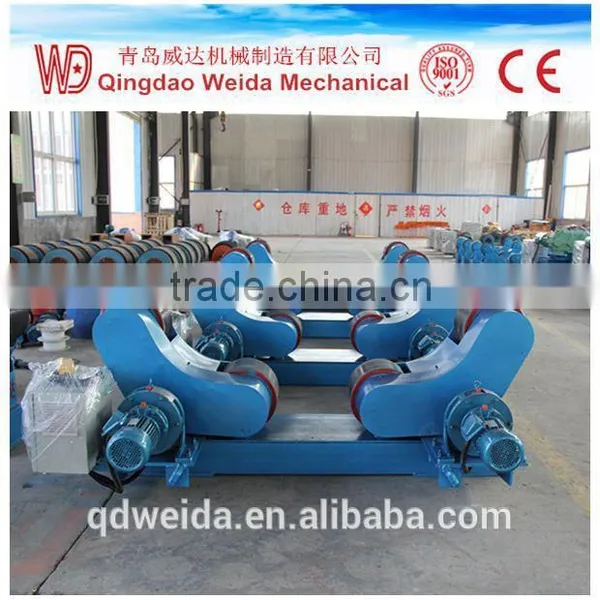

Good Peice Pipe Welding Rotator With CE and ISO9001
Our self-alignment welding rotator is mainly used for handing and automatic welding circular metal containers, and can be widely applied to the oil industry, press vessel field, wind power production line, pipe line production, and many other round workpiece.
Our self-alignment welding rotator is designed and produced to better satisfy the growing demands for the pressure vessel manufactures both domestically and internationally. It can deal with a wide range of diameters, and it adopts frequency conversion setting and stepless speed regulation mode.
In standard configuration, each machine composed of a driving part and the driven part .the active rotator has one driving system ,it mainly consists of AC frequency motor , reducer, coupling and connecting shaft. Through the AC motor and two sets of worm gear reducers working together, which ensures to make the rollers run.
We have advanced processing equipment and skilled workers
packing According to export standardensure product quality.
| Carrying Capacity(T) | Roller Diameter(mm) | Roller width(mm) | Roller speed(m/h) | Adaptation welding Rotator(mm) | Speed control mode |
| 2 | 180 | 100 | 6-60 | 220-1200 | frequency speed control |
| 5 | 200 | 130 | 6-60 | 250-2200 | |
| 10 | 300 | 150 | 6-60 | 320-3500 | |
| 20 | 300 | 200 | 6-60 | 450-3500 | |
| 30 | 350 | 250 | 6-60 | 500-4500 | |
| 50 | 400 | 300 | 6-60 | 500-4500 | |
| 70 | 400 | 300 | 6-60 | 600-5000 | |
| 100 | 500 | 300 | 6-60 | 700-5500 | |
| 150 | 500 | 300 | 6-60 | 800-6000 | |
| 200 | 600 | 300 | 6-60 | 800-6000 | |
| 250 | 600 | 320 | 6-60 | 800-6000 | |
| 300 | 800 | 320 | 6-60 | 1000-6500 | |
| 350 | 800 | 350 | 6-60 | 1000-6500 | |
| 400 | 800 | 350 | 6-60 | 1000-7000 | |
| 450 | 800 | 350 | 6-60 | 1000-7000 | |
| 550 | 800 | 350 | 6-60 | 1000-8000 |
If you want more details about our welding machine,please contact us
Add:NO.1 Weida Road Ducun Eastern Industrial District,Jiaozhou Qingdao,Shandong
Tel:0532-85239588
Fax:0532-85239566
Http://
