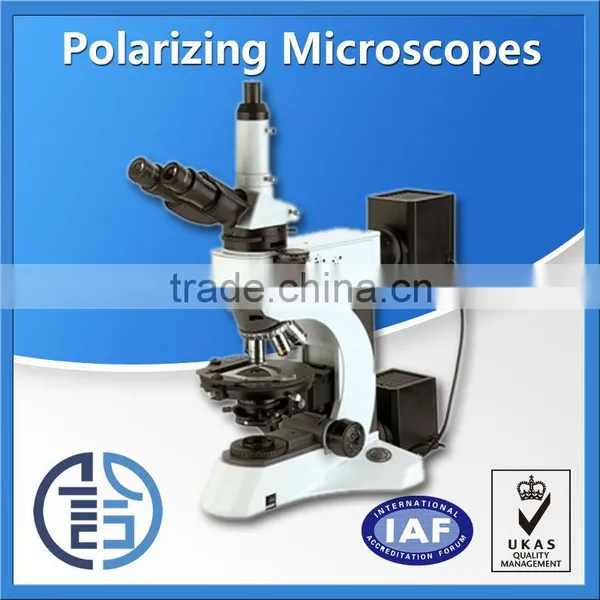

NP-800RF/TRF Trinocular Polarization Microscope Price Phase Contrast Microscope
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
YanHe
Model Number:
NP-800RF,NP-800TRF
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PM6000 Polarization Microscope Price Cheap Polarizing Microscope SaleUS$ 1,581 - 1,739MOQ: 1 Set -
XPL-2 Binocular Polarizing Microscope Optical Microscope for PcbUS$ 1,494 - 1,565MOQ: 1 Set
-
XP-221 Polarizing Microscope Best Student Microscope for Kids Lab MicroscopeUS$ 1,328 - 1,391MOQ: 1 Set
-
XP-213 Polarizing Microscope for Inspection and Education Usb Digital Microscope China MadeUS$ 916 - 948MOQ: 1 Set
-
XPT-7 Monocular Microscope Digital Eyepiece Camera Student MicroscopeUS$ 663 - 711MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
YanHe
Model Number
NP-800RF,NP-800TRF
Theory
Other, Polarizing Microscope
Drawtube
Trinocular
Features
· Supply high quality and contrast image with special strain free objective.
· Single polarization, othorgonal polarization and conoscopic observationon.
· Transmitted light and reflect light, 24V/100W long life halogen lamp.
· Stage with 45°located, attachable mechanical stage with large moving range, high efficiency by no interference when turning objectives.
Specification
| NP-800RF | NP-800TRF | ||
| Optical System | Infinite optical system | A | A |
| Viewing Head | Seidentopf trinocular head inclined at 30°, Interpupilary 48-75mm | A | A |
| Eyepiece | Plan eyepiece EW10X/22 | A | A |
| Plan eyepiece with scale of crosshair, Plan eyepiece with cross, Plan eyepiece with gridding | A | A | |
| Strain-Free Plan | 5X/0.12/∞/- WD 15.5mm | A | A |
| Achromatic Objective | 10X/0.25/∞/- WD 10.0mm | A | A |
| 20X/0.4/∞/0 WD 5.8mm | A | A | |
| 50X/0.75/∞/0 WD 0.32mm | A | A | |
| 100X/0.8/∞/0 WD 2mm | A | A | |
| 40X/0.65/∞/0.17 WD 0.54mm | A | ||
| 100X/1.25/∞/0.17 WD 0.13mm | A | ||
| Nosepiece | Backward quintuple nosepiece, Center adjustable | A | A |
| Analyzer | 360° dial rotation Minimum scale reading:0.1°(Vernier scale) | A | A |
| Conoscopic observation | Switch between orthoscopic and conoscopic observation, Bertrand lens position adjustable | A | A |
| attachment | |||
| Optical Compensator | First-order red plate, Guarter-wave plate, Quartz wedge | A | A |
| Polarizing Rotatable | Diameter Φ170mm, Center adjustable, 360° scale, Minimum divison 1°, Minimum reading 6 by means of vernier scale ,45° Click stop knob | A | A |
| Stage | |||
| Attachable Stage | Moving range 30mmX40mm | O | O |
| Condenser | Strain-free swing condenser NA0.9/0.25 | A | |
| Focusing | Coaxial coarse & fine adjustment, Range 32mm, Fine division 0.001mm, Coarse stroke | A | A |
| 37.7mm per rotation, Fine stroke 0.1mm per rotation | |||
| Polarizer | Transmitted: 360° Rotatable 0° position adjustable | A | |
| Reflected: Fixed | A | A | |
| Illumination | 24V/100W Halogen lamp, Brightness adjustable | ||
| Reflected light: 24V/100W Halogen lamp, Brightness adjustable | A | A | |
| Transmitted light: 24V/100W Halogen lamp, Brightness adjustable | A | ||
| Filter | Blue filter Φ45mm | A | |
| ND6 Neutral density filter Φ45mm | O | ||
| ND25 Neutral density 25 filter Φ45mm | O | ||
| Blue filter Φ25mm | O | O | |
| ND6 Neutral density filter Φ25mm | O | O | |
| ND25 Neutral density filter Φ25mm | O | O | |
| Attachment | Video attachment | O | O |
| 0.01mm Micrometer | O | O | |
| Note: "A" Standard Outfit, "O" Optional | |||
