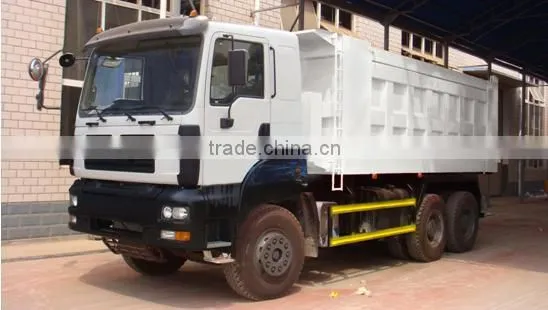

Tipper Truck

Name: Tipper Truck
Brand: Qixing
SKU: 113966529

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Drive Wheel:

6x4

Capacity (Load):

11 - 20t

Horsepower:

351 - 450hp

Hubei Qixing Vehicle-Body Limited Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Wuhan

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Capacity (Load) 11 - 20t

Horsepower 351 - 450hp

Condition New

Transmission Type Manual

Fuel Type Diesel

Gross Vehicle Weight 26

Place of Origin Hubei, China

Brand Name Qixing

Model Number M2633

Dimensions (L x W x H) (mm) 6800*2500*3138

tipper truck

BASIC SPECIFICATIONS TIPPER TRUCK DRIVING TYPE 6×4
Engine	Engine model: Steyr WD12.336
	Type: Diesel, 4-stroke, direct injection engine
	6-cylinder in-line with water cooling, turbocharged & intercooled
	Maximum output according to DIN: 247 KW at 2200 rpm
	Maximum torque: 1350 N.m at 1100~1600 rpm
	Displacement criterion: EUR
Clutch	Model: φ430, diaphragm spring , Single-plate dry clutch, France Valeo made in China
	Type: Hydraulic operating, compressed air assisted
Transmission	Model: Fuller RT-11509C
	Operating type: Manual shift with hydraulic assistant
Front axle	Model: Steyr 6.5T, Rear 13T, Ratio: 5.73
Steering system	Model: ZF8098, (Germany ZF ,made in China)
	Type: Steering with total power assisted
Braking system	Service brake: Dual circuit compressed air brake
	Parking brake: Spring energy compressed air brake
	Auxiliary brake: Engine exhaust brake, with MAN WEVB Tech
Electrics	Operating voltage: 24V, negative grounded
Dimensions in mm	Wheelbase	3600 +1350 mm
	Approach angle	(14°)
	Departure angle	(42°)
	Overall length* width* Height(mm)	680025003138
Weight in kg	Maximum loading capacity	15000 kg
	Dead weight	11000 kg
Performance	Maximum driving speed (km/h)	92
	Fuel tank capacity (L)	380
	Maximum grade ability (%)	38
	Minimum ground clearance (mm)	360
	Fuel consumption (L/100km)	29
	Min. turning radius(m)	19.2
