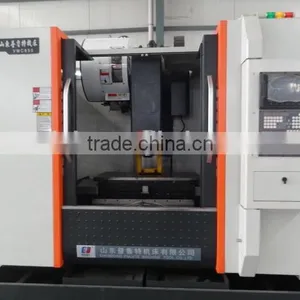

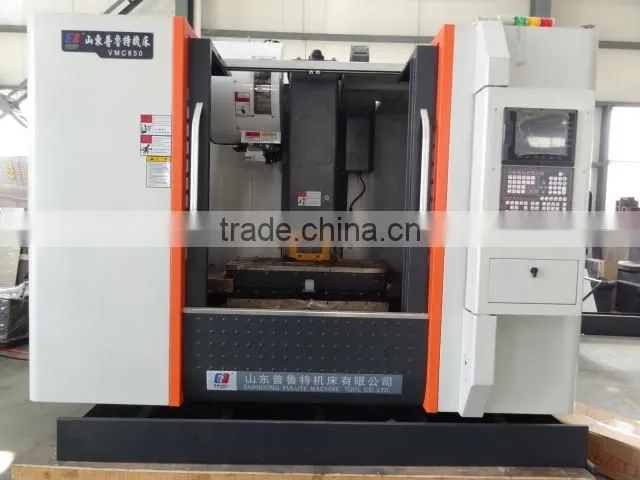

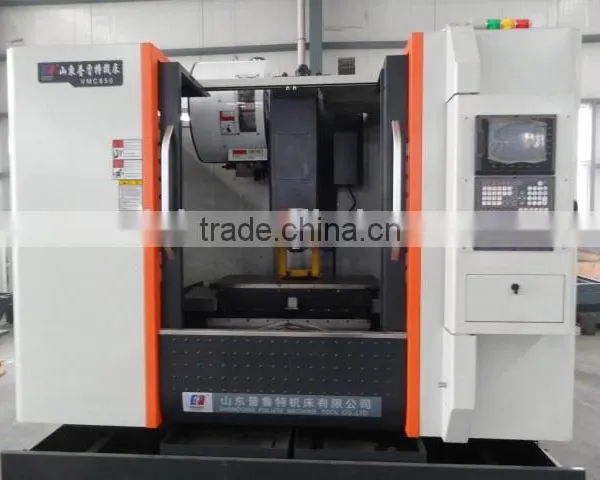

VMC850 VERTICAL MACHINE CENTER
1. SPECIFICATION
|
VMC850 |
Table size |
1050*500 mm |
X axis travel |
800 mm |
Y axis travel |
500 mm |
Z axis travel |
550 mm |
Distance between spindle center and column |
550 mm |
Distance between spindle nose and table |
105-655 mm |
T-slot (No.* slot width *spacing) |
3-18*150 qty-mm |
Spindle taper |
BT40 |
ATC type |
24-pcs tools, disk type |
Speed speed |
8000 rpm |
Spindle motor |
7.5/11 kw |
X.Y.Z axis servo motor |
2.0/2.0/2.0 kw |
Max.load capacity of work table |
600 kg |
X.Y.Z rapid feed speed |
20/20/20 m/min |
X.Y.Z cutting feed speed |
1-10 m/min |
X.Y.Z axis position accuracy |
±0.005/300 mm |
X.Y.Z axis reposition accuracy |
±0.003 mm |
Dimension (L*W*H) |
2700×2250×2700 mm |
N.W. |
5 Tons (5000kg) |
2. FEATURES
High quality resin-coated sand casting |
Taiwan spindle |
Taiwan ball screw and locking nut |
Taiwan pressure cylinder |
Japan NSK bearing |
Germany R+W coupling |
Automatic lubrication system |
Chip conveyor optional |
3. Standard/Optional
Boxway guideways, Linear x3/2/1 optional
24 pcs disc type magazine, 16 pcs hat ( umbrella ) type optional
Chip conveyor optional
12000rpm spindle optional
4th/5th axis optional
KND 1000M system standard, (KND 2000M,GSK, Siemens, Fanuc, etc OPTIONAL).
4. Custom-making, OEM services avail
Shandong Pulute Machine Tool Co., Ltd.
Tel: +86-632-5855081 Fax: +86-632-5855089
Cell: +86-155-8829-3266
Add: West Beixin Rd., Tengzhou City, Shandong Prov., China 277599
Packing in standard export in wood cases, ply wood cases, or per customers, LCL or FCL
We're professional manufacturer of CNC Lathes, CNC machine centers since 2008. High quality at much competitive prices.
One year warranty. After one year, cost rate for parts and services.
