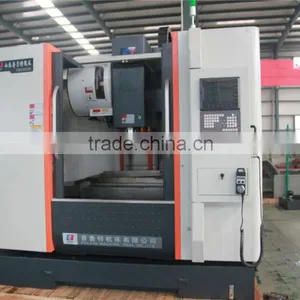

5 axis table cnc 5 axis machine 5 axis machinery
1. VMC7135 5 axis table cnc 5 axis machine 5 axis machinery specification
5 axis table cnc 5 axis machine 5 axis machiner |
VMC850 |
Capacity | |
table size |
1050x500mm |
Max. table load |
600kg |
T slot qty-width*distance |
5-18x90 |
Spindle | |
spindle speed |
8000 rpm |
spindle nose to table surface |
105-655mm |
Spindle center to Column surface |
550mm |
Spindle taper |
BT40 |
Main motor power |
7.5/11kw |
Three-axis servo motor power |
2.0/2.0/2.0kw |
box way | |
X axis travel |
800mm |
Y axis travel |
500mm |
Z axis travel |
550mm |
X/Y/Z axis rapid feed |
15/15/12m/min |
Cutting feed speed |
8m/min |
Automatic tool changer | |

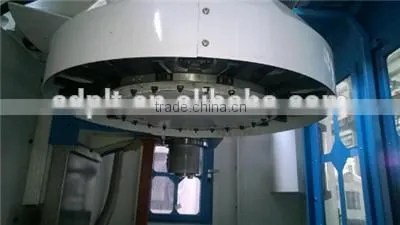

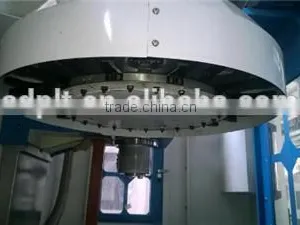

Tool changer type |
drum/ hat type (arm type optional ) |
Max. tool length |
350mm |
|
Max. Tool diameter
|
φ100(adjacent tool)/φ150(not adjacent tool) |
Max.tool weight |
8kg |
Tool changing time(tool-to-tool) |
1.8sec |
Accuracy | |
Positioning accuracy |
±0.008/±0.006/±0.006mm |
X/Y/Z axis repeatability |
±0.004/±0.004/±0.004 mm |
Net Weight |
5000 kg |
Overall Dimension |
2780×2450×2700 |
2. VMC7135 5 axis table cnc 5 axis machine 5 axis machinery standard accessories
High quality boned/coated sand casting
Taiwan Royal,Taiwan POSA,Taiwan KENTURN
Taiwan HIWIN ball screw and precision locking nut C3 standard
Pressure cylinder
XYZ axis stainless protecting cover for guide way
Domestic brand electric lubrication system including lubrication pump
Domestic brand water coolant system
Domestic brand air coolant pipe and cable
Electric cabinet heat ex-changer
3. VMC7135 5 axis table cnc 5 axis machine 5 axis machinery optional accessories
16 pcs arm type tool magazine
Z axis height increases 100mm
block way changing into linear guide way
Oil coolant
Water-cooled spindle
Higher pressure Taiwan water pump
Chain type chip conveyor,
universal chain type chip conveyor ,
oil water separator
125 standard 4th axis
Yantai brand dividing / indexing function 4th axis, 125 standard 200standard, 250standard
Taiwan Xvyang brand dividing/indexing function 4th axis, 125 standard , 200standard, 250standard
