fanuc vmc machine price
| fanuc vmc machine price | VMC1060 |
Capacity | |
table size |
1300x600mm |
Max. table load |
800kg |
T slot qty-width*distance |
5-18x120 |
Spindle | |
spindle speed |
8000 rpm |
spindle nose to table suraface |
180-700mm |
spindle center to Column surface |
600mm |
Spindle taper |
BT40 |
Main motor power |
11/15kw |
Three-axis servo power motor |
2.5/2.5/2.5kw |
guide way | |
X axis travel |
1000mm |
Y axis travel |
600mm |
Z axis travel |
600mm |
X/Y/Z axis rapid traverse rate |
20/20/15m/min |
Cutting feed speed |
10m/min |

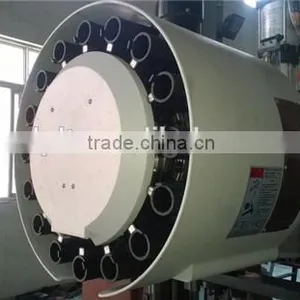

Automatic tool changer | |
Tool changer type |
24(arm type) |
Max. tool length |
350mm |
|
Max. Tool diameter
|
Φ80(adjacent tool)/φ125(not adjacent tool) |
Max.tool weight |
8kg |
Tool changing time(tool-to-tool) |
1.8sec |
Accuracy | |
Positioning accuracy |
±0.005 |
X/Y/Z axis repeatability |
±0.004 |
Weight |
7000kg |
Overal Dimension |
3340×2500×2700mm |

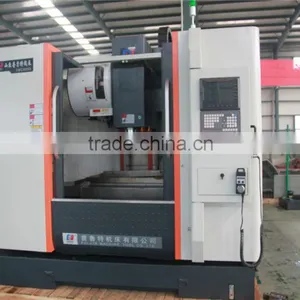

1. VMC 1060 fanuc vmc machine price feature
1.VMC series Vertical Machining Center is the machine of a new generation produced by Pulute
Machine Tool Company with introduction of the advanced technology.
2.The distinctive hardening plastic coated hard rail guide way of the machine is not only suitable for
processing of precision parts like plate, disc and shell, but also applicable for mould process.
3.It has the ATC system, fully enclosed protective shield, automatic lubrication system, cooling system,
automatic chip removal device, manual spray gun and portable MPG.
4. The parts after the first time clamping can complete many machining processes including milling,
probing, expending, hinging and tapping
5.Featured by the advantages of highest degree of automation, high reliability, easy and pleasant
operation, nice overall shape, as well as high degree mechanical and electrical integration.
2. VMC 1060 fanuc vmc machine price configuration
| High quality boned/ coated sand casting |
| Taiwan Royal spindle |
| Taiwan ball screw and locking nut C3 standard |
| Taiwan pressure cylinder |
| Japanese NSK bearing |
| Germany R+W coupling |
| Automatic lubrication system including pump |
| coolant system |
Steel-less cover for X Y Z axis guide |
| electric cabinet and heat exchanger |
| high quality boned/coated sand casting |
| coolant pipes and cables |
3. VMC 1060 automatic machine center " href="https://img13.fr-trading.com/productgrouplist-212944587/Horizontal_machining_center.html" target="_blank"> fanuc vmc machine price optional accesspries
BT50 spindle
24 tool arm tool changer
chip conveyor
4th axis
spindle direct connected
air conditioner for electric cabinet
4. VMC 1060 fanuc vmc machine price warranty
1. engineers are available to do oversea machinery service. In some countries, we have oversea
agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered
with machine for customer convenience.
5.We offer best agent price and distributer price.
Should learn more about our products, please feel free to inquiry or talk on trademanager face to face.
Please click the following send, to learn more details.
