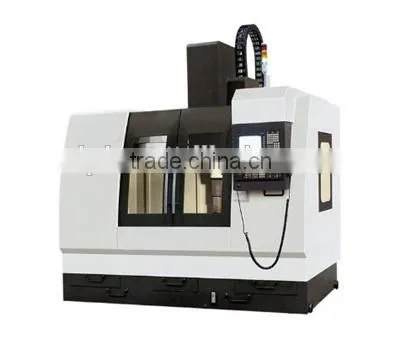

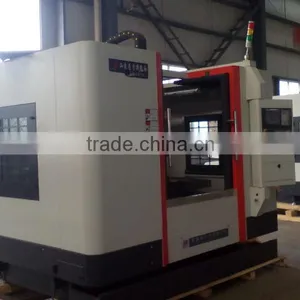

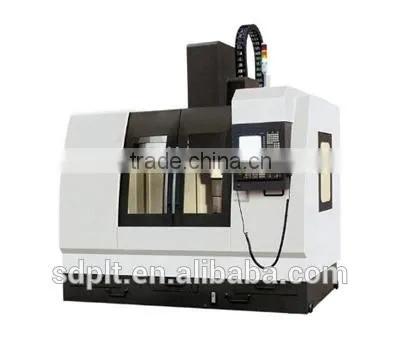

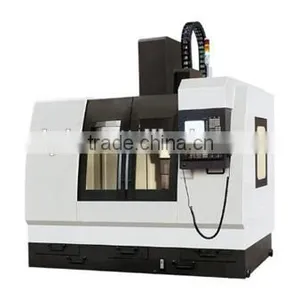

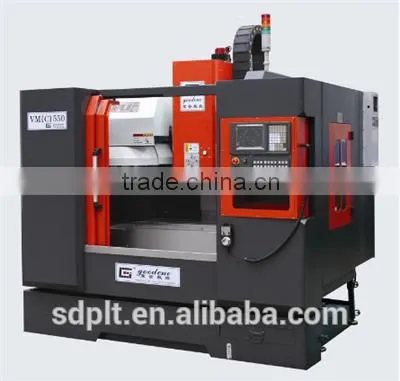

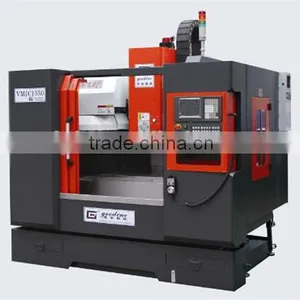

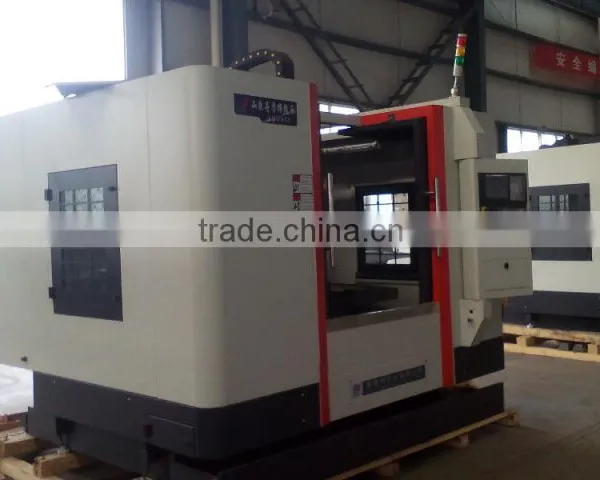

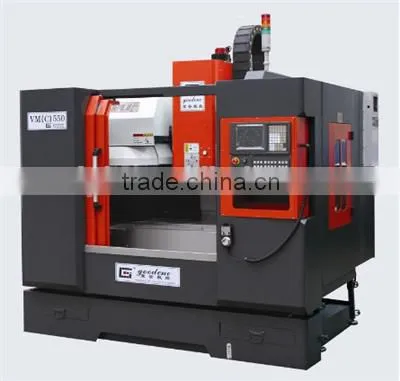

Cnc machine hht-3000 auto tools
1. VMC850 Cnc machine hht-3000 auto tools specification
Cnc machine hht-3000 auto tools |
VMC850 |
Capacity | |
table size |
1050x500mm |
Max. table load |
600kg |
T slot qty-width*distance |
5-18x90 |
Spindle | |
spindle speed |
8000 rpm |
spindle nose to table surface |
105-655mm |
Spindle center to Column surface |
550mm |
Spindle taper |
BT40 |
Main motor power |
7.5/11kw |
Three-axis servo motor power |
2.0/2.0/2.0kw |
box way | |
X axis travel |
800mm |
Y axis travel |
500mm |
Z axis travel |
550mm |
X/Y/Z axis rapid feed |
15/15/12m/min |
Cutting feed speed |
8m/min |

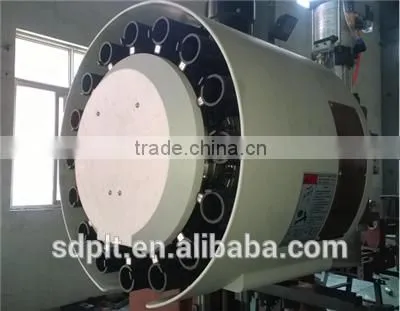

Automatic tool changer | |
Tool changer type |
drum/ hat type (arm type optional ) |
Max. tool length |
350mm |
|
Max. Tool diameter
|
φ100(adjacent tool)/φ150(not adjacent tool) |
Max.tool weight |
8kg |
Tool changing time(tool-to-tool) |
1.8sec |
Accuracy | |
Positioning accuracy |
±0.008/±0.006/±0.006mm |
X/Y/Z axis repeatability |
±0.004/±0.004/±0.004 mm |
Net Weight |
5000 kg |
Overall Dimension |
2780×2450×2700 |
2. VMC850 Cnc machine hht-3000 auto tools standard accessories
High quality boned/coated sand casting
Taiwan Royal,Taiwan POSA,Taiwan KENTURN
Taiwan HIWIN ball screw and precision locking nut C3 standard
Pressure cylinder
XYZ axis stainless protecting cover for guide way
Domestic brand electric lubrication system including lubrication pump
Domestic brand water coolant system
Domestic brand air coolant pipe and cable
Electric cabinet heat ex-changer
3.VMC850 Cnc machine hht-3000 auto tools optional accessories
24 pcs arm type tool magazine
Z axis height increases 100mm
box way changing into linear guide way
Spindle speed 12000 rpm,
Spindle speed 10000 rpm,
Oil coolant
Water-cooled spindle
Higher pressure Taiwan water pump
BT50 spindle
Chain type chip conveyor,
universal chain type chip conveyor ,
oil water separator
125 standard 4th axis
Yantai brand dividing / indexing function 4th axis, 125 standard 200standard, 250standard
Taiwan Xvyang brand dividing/indexing function 4th axis, 125 standard , 200standard, 250standard
4. Cnc machine hht-3000 auto tools warranty
1. engineers are available to do oversea machinery service. In some countries, we have oversea
agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered
with machine for customer convenience.
5.We offer best agent price and distributer price.
