turning center machine

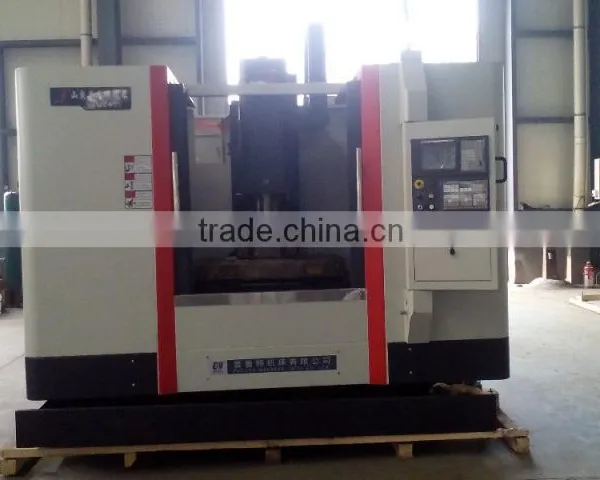

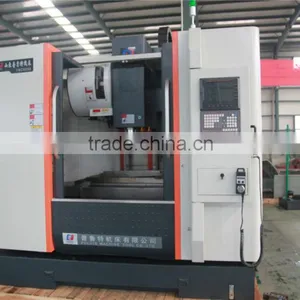

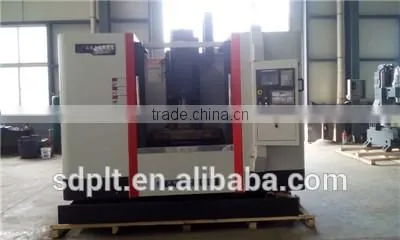

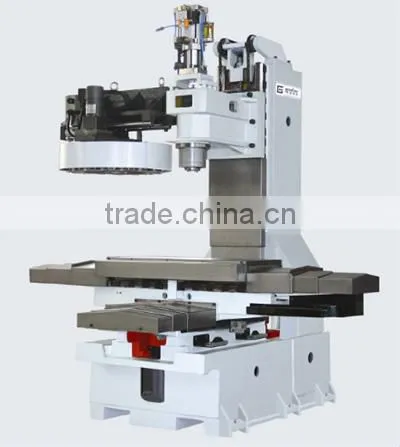

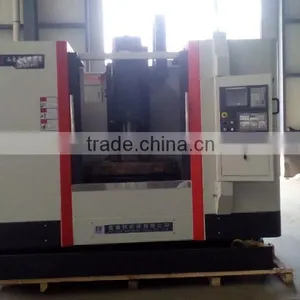

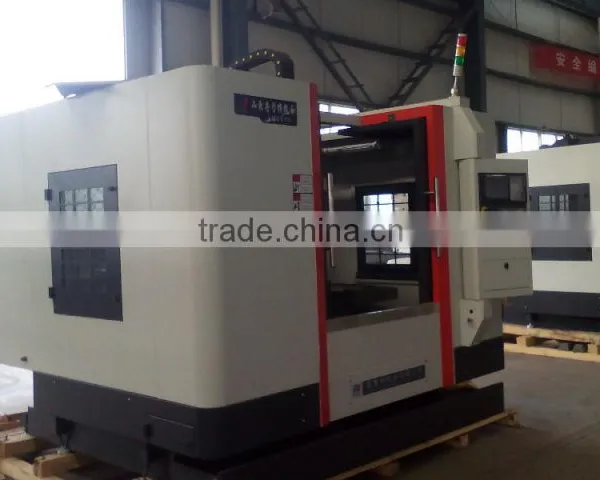

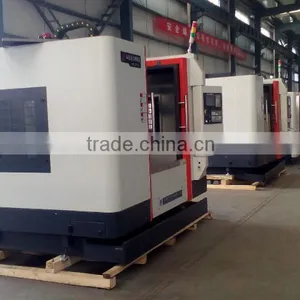

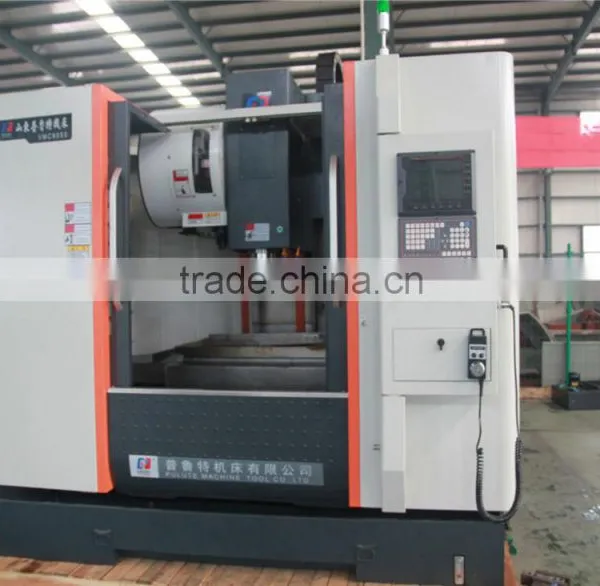

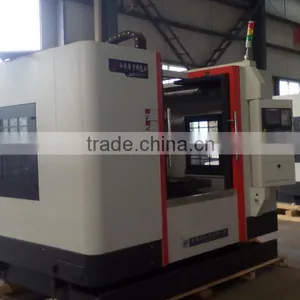

1.VMC1580 turning center machine feature
1.VMC series Vertical Machining Center is the machine of a new generation produced by Pulute
Machine Tool Company with introduction of the advanced technology.
2.The distinctive hardening plastic coated hard rail guide way of the machine is not only suitable for
processing of precision parts like plate, disc and shell, but also applicable for mould process.

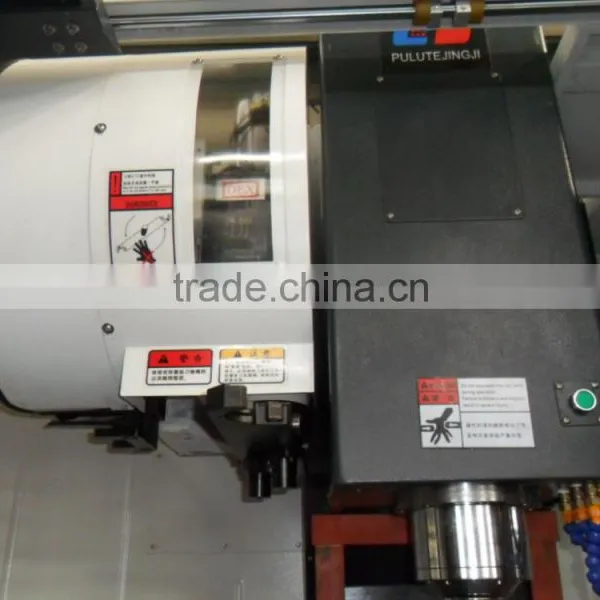

3.It has the ATC system, fully enclosed protective shield, automatic lubrication system, cooling system,
automatic chip removal device, manual spray gun and portable MPG.
4. The parts after the first time clamping can complete many machining processes including milling,
probing, expending, hinging and tapping
5.Featured by the advantages of highest degree of automation, high reliability, easy and pleasant
operation, nice overall shape, as well as high degree mechanical and electrical integration.
2. VMC1580 turning center machine usage
1.Widely used in machine work and mould making ,
2.Could meet processing requirements from the roughing to the finishing ,
3.Has various function of milling, drilling, tapping, boring and many other processes.
3. VMC1580 turning center machine specification
| VMC1580 turning center machine specification | |
table size |
1700*800mm |
| Max. table load | 1500kg |
| T-slot quantity | 5 pieces |
| T-slot width and distance | 22*135mm |
| X/Y/Z axis travel | 1500/800/700mm |
| spindle nose to work table | 170-870mm |
| Spindle taper | BT50 |
| Spindle speed | 8000rpm |
| Spindle power | 3.7-5.5kw |
| Three axes motor connecting | direct connection |
| Cutting feed speed | 10 m/min |
| Rapid feed speed | 15m/min |
| X position accuracy | 0.005mm |
| Y position accuracy | 0.005mm |
| Z position accuracy | 0.005mm |
| X repeatability | 0.004mm |
| Y repeatability | 0.004mm |
| Z repeatability | 0.004mm |
| Overall dimension | 4260*3545*3200mm |
| Net weight | 12000kg |
4. VMC1580 turning center machine warranty
1. engineers are available to do oversea machinery service. In some countries, we have oversea
agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered
with machine for customer convenience.
5.We offer best agent price and distributer price.
5.Customer and delivery
accept ODM, OEM,
accept FOB, CFR, CIF, EXW price,
T/T 30% as deposit and the balance before machine tools leave our factory.
normal products with standard configuration manufacturing time is 7-15 working days.
