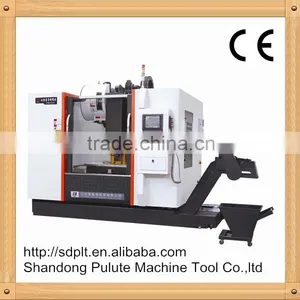

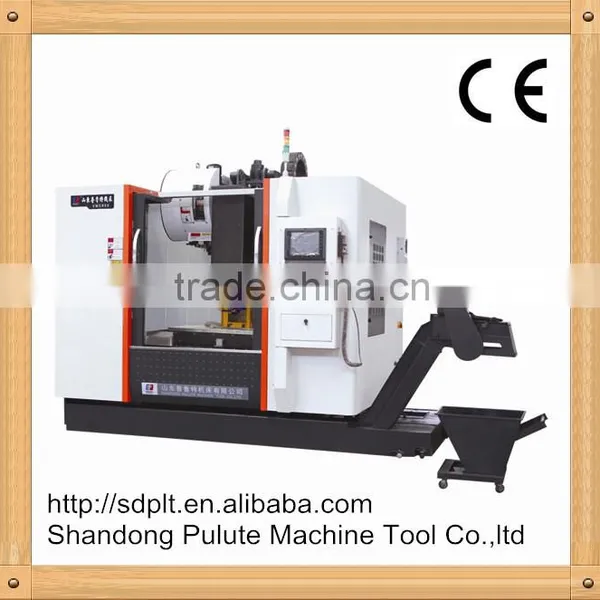

Help Center2015 Latest Design VMC650 Small Vertical Turning Machine Center
Related Products
-
Hot Sale! VMC7135 3 Axis Small Cnc Vertical Machining CenterNegotiableMOQ: 1 Set -
Hot Sale! VMC850 China Competitive Price Large Cnc Vertical Machining CenterNegotiableMOQ: 1 Set
-
VMC1580 VERTICAL MACHINE CENTERNegotiableMOQ: 1 Set
-
Mini Vmc Machine Manufacturer PulutekNegotiableMOQ: 1 Set
-
Mini VMC420 Vertical Machine CenterNegotiableMOQ: 1 Set
small vertical turning machine center
1. 2014 Latest design, VMC650 small vertical turning machine center specification
small vertical turning machine center |
VMC650 |
Capacity | |
table size |
900x400mm |
Max. table load |
450kg |
T slot width-distance |
3-18x125 |
Spindle | |
spindle speed |
8000 rpm |
spindle nose to table surface |
150-650mm |
spindle center to Column surface |
496mm |
Spindle taper |
BT40 |
Main motor power |
5.5/7.5kw |
Three-axis servo motor power |
1.0/1.0/1.5kw |
guide way | |
X axis travel |
650mm |
Y axis travel |
400mm |
Z axis travel |
500mm |
X/Y/Z axis rapid traverse rate |
25/15/20m/min |
Cutting feed speed |
10m/min |
Automatic tool changer | |
Tool mangazine type |
16 drum |
Max. tool length |
250mm |
|
Max. Tool diameter
|
Φ80(adjacent tool)/φ125(not adjacent tool |
Max.tool weight |
7kg |
Tool changing time(tool-to-tool) |
1.8sec |
Accuracy | |
Positioning precision |
±0.0105 |
X/Y/Z axis repeatability |
±0.004 |
N.W. |
4500kg |
Overall dimension |
2700×2250×2700mm |
2.VMC650 small vertical turning machine center feature
1.VMC series Vertical Machining Center is the machine of a new generation produced by Pulute
Machine Tool Company with introduction of the advanced technology.
2.The distinctive hardening plastic coated hard rail guide way of the machine is not only suitable for
processing of precision parts like plate, disc and shell, but also applicable for mould process.
3.It has the ATC system, fully enclosed protective shield, automatic lubrication system, cooling system,
automatic chip removal device, manual spray gun and portable MPG.
4. The parts after the first time clamping can complete many machining processes including milling,
probing, expending, hinging and tapping
5.Featured by the advantages of highest degree of automation, high reliability, easy and pleasant
operation, nice overall shape, as well as high degree mechanical and electrical integration.
3. VMC650 small vertical turning machine center usage
1.Widely used in machine work and mould making ,
2.Could meet processing requirements from the roughing to the finishing ,
3.Has various function of milling, drilling, tapping, boring and many other processes.
4. VMC650 small vertical turning machine center standard accessories
| High quality boned/ coated sand casting |
| Taiwan Royal spindle |
| Taiwan ball screw and locking nut C3 standard |
| Taiwan pressure cylinder |
| Japanese NSK bearing |
| Germany R+W coupling |
| Automatic lubrication system including pump |
| coolant system |
Steel-less cover for X Y Z axis guide |
| electric cabinet and heat exchanger |
| high quality boned/coated sand casting |
| coolant pipes and cables |
5. automatic machine center " href="https://img13.fr-trading.com/productgrouplist-212944587/Horizontal_machining_center.html" target="_blank"> VMC650 small vertical turning machine center optional accessories
BT50 spindle
24 tool arm tool changer
chip conveyor
4th axis
spindle direct connected
air conditioner for electric cabinet
