Help CenterFoshan Atex Pressure Control Switch SPDT NC NO 614
Related Products
-
Ex-proof Pressure Controller (618)US$ 30 - 100MOQ: 1 Box -
Explosion Proof Pressure Controller (619)US$ 45 - 115MOQ: 1 Box
-
R1/2'' Explosion Proof Water Pressure Switch 601US$ 35 - 120MOQ: 25 Pieces
-
China Foshan Explosive Proof Pressure Switch 602US$ 60 - 150MOQ: 10 Pieces
-
Atex Explosion Proof Pressure Control Switch 603US$ 50 - 130MOQ: 10 Pieces
Specifications
Used in explosive hazardous places, explosion-proof electrical equipment used in suppor.Pressure range: -14.5 to 3600PSI
Ex-proof pressure switches
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPDT NC+NO, Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: M20X1.5-6g Male.
3, Electrical connection: M20x1.5-6g Male , UL 2517 3X22AWG,
Lead wire length: 1000mm & 2000mm & 3000mm & 4000mm & 5000mm( Selectable ).
4, Voltage & Resistance load : DC24V 3A; 50Hz AC250V 3(1.5)A.
5, Fluid media: water, steam, hydraulic oil, compressed air,
industrial gases, air, sea water, tap water, river water, well water,
corrosive fluids, chemical agents, hydrogen,acetylenegas,etc .
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP65.
8, Ambient temperature: -40°C~125°C(Selectable),
Medium temperature: -40°C~180°C(Selectable). .

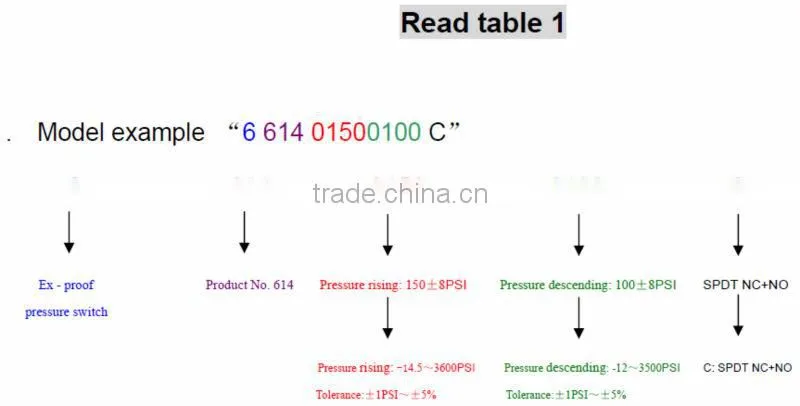

9, Model: ( Selectable, Read table 1).
10,Working pressure: -14.5 to 3600PSI (Selectable, Read table 2).
11, Explosion-proof grade: Exd Ⅱ CT6 , Explosion-proof certificate Certificate No.: CNEx11.2271
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free
Certificate:

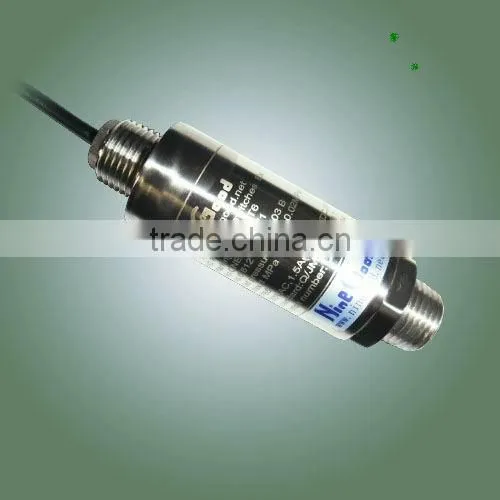

Production Photo:

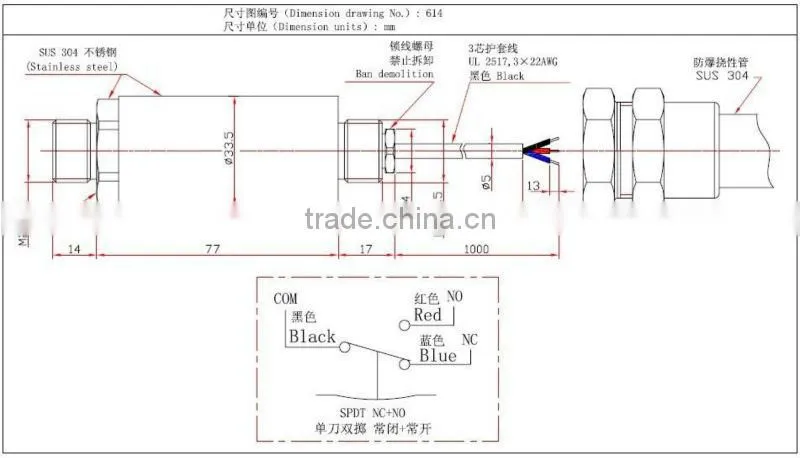

Dimension Drawing:
