Help CenterWater Pump Pressure Control Switch
Related Products
Specifications
water pump pressure control switchSuitable for
Corrosive fluid air water vacuum
selectable switch model
easy installatin
water pump pressure control switch
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPDT NC+NO , Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: 1/8"-27NPT, Thread (Male ).
3, Electrical connection: DIN 43650 Linker .
4, Voltage: 5-110VDC, 5-250VAC;
Resistance load : 0.1A to 3A,
Inductive load : 0.1A to 1A.
5, Fluid media: Air pressure & Water pressure & Vacuum & Oil & Corrosive fluids,etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP65.
8, Ambient temperature: -40°C~85°C, Medium temperature: -40°C~120°C.

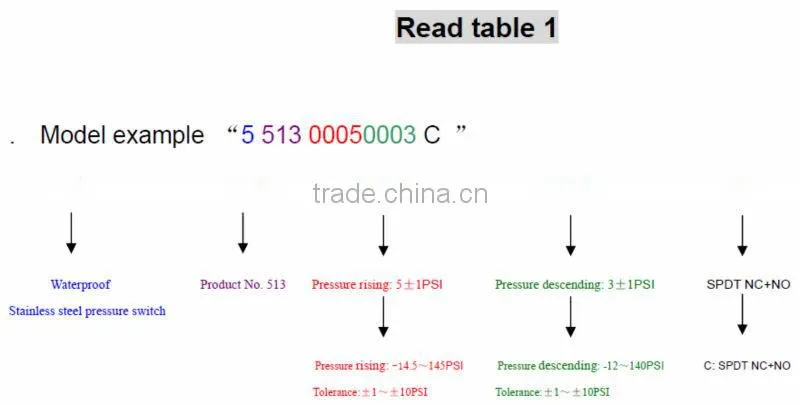

9, Model: (Read table 1).

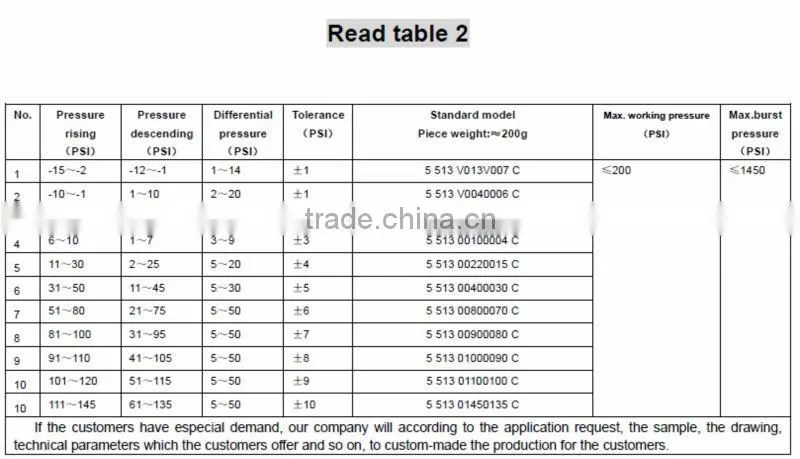

10,Working pressure: Vacuum -14.5PSI to +145PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free
Certificate:

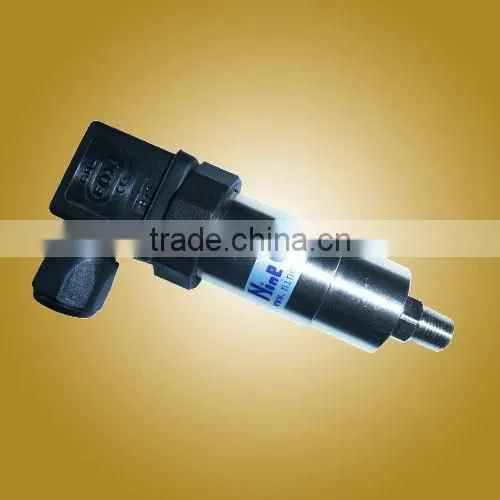

Production Photo:

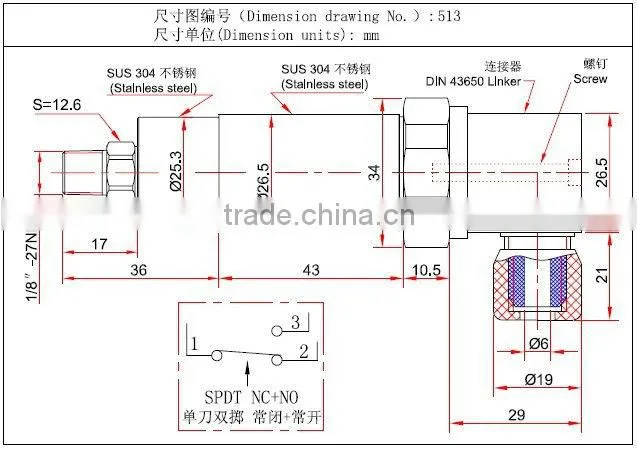

Dimension Drawing:
