Specifications
1.Powerful rotating system2.Centralized operating system
3.Powerful push &rotating system
4.Safe&stable traveling system

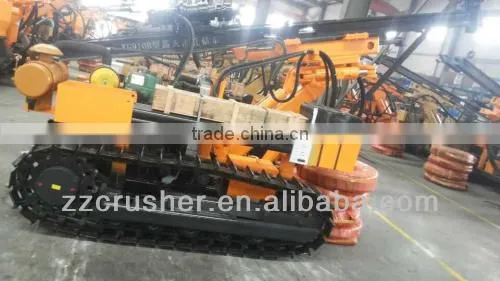

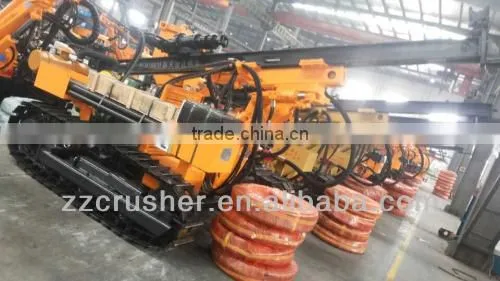

2014 New Hydraulic Crawler Mounted Drilling Rig Manufacturer
Crawler mounted drilling rig KC140 is specially designed drilling equipments, which can be widely used for surface drilling such as quarry, railway construction, road construction, small to medium mining operation and etc. High performance features higher penetration rate with lower fuel consumption. Compressed air is used to operate drilling rig hammer for blast holes drilling, bench hole drilling, grout hole drilling, anchor hole drilling etc.
Feature of Crawler Mounted Drilling Rig

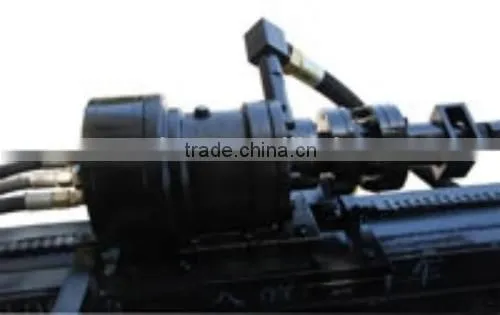

Powerful rotating system

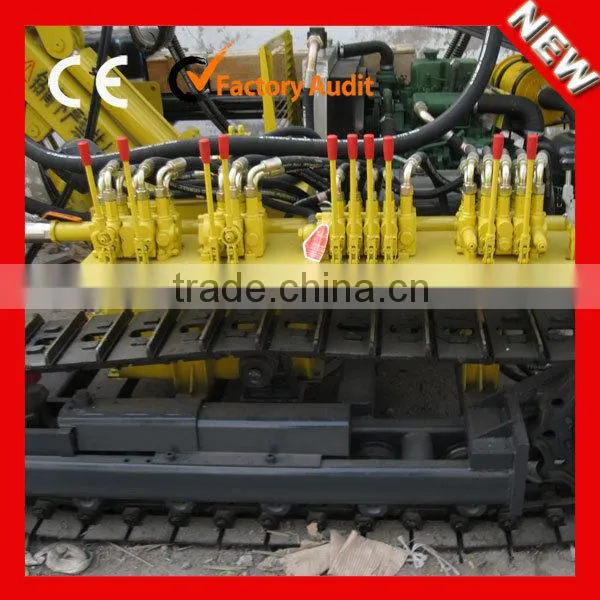

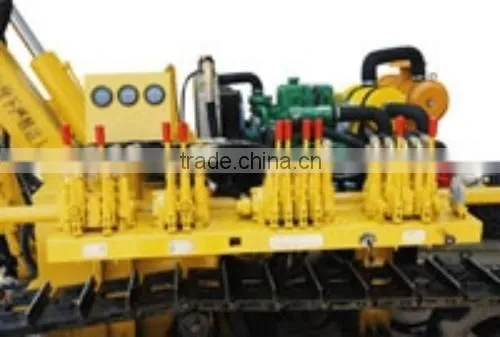

Centralized operating system
Powerful push &rotating system

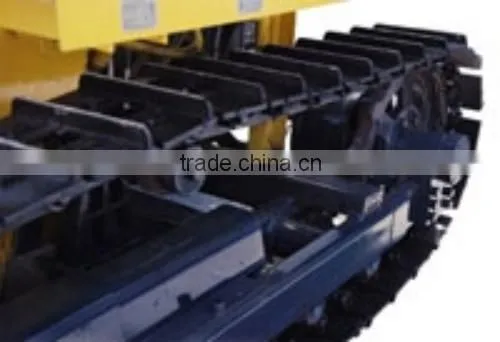

Safe&stable traveling system

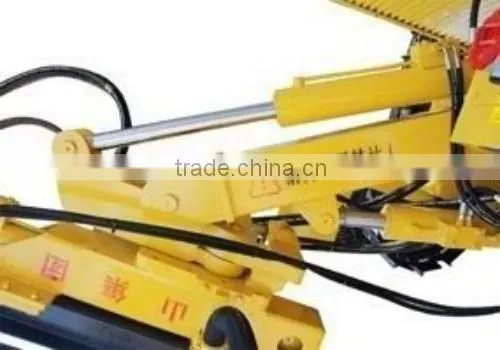

Multi-angle operation
Reliable pump set
Model: KC140 Crawler Mounted Drilling Rig
KC140 |
|
Rock rigidity |
f=6-20 |
Dia.of hole |
105-140mm |
Optium drilling depth |
25m |
Working pressure |
10-24 bar |
Air consumption |
≥ 26 m³/min |
Rotating speed |
0-76rpm |
Torque |
2100N.M |
Lift power |
13.6KN |
Dimension |
6000*2300*1800 |
Weight |
5900kg |
Drive system |
Pneumatic motor |
Standard Components |
|
1.Hammer |
HCD45A/KQG45A/HD55 |
2.Rod |
Φ76*3000 |
3.Bit |
Φ115 |
4.Air hose |
Φ51*2P*20 |

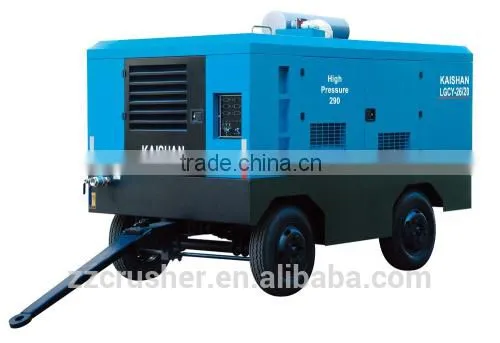

Recommonded |
LGCY-26/20 |
Specifications subject to change without notice |
|
New hydraulic crawler mounted drilling rig for sale, Zhengzhou Zoonye Mining Machinery Co., Ltd is a reliable manufacturer of hydraulic crawler mounted drilling rig.
