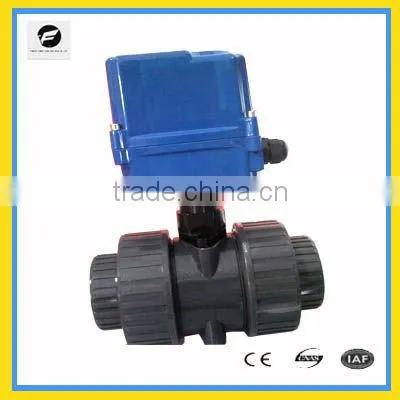

CTF-010 Actuator valve AC220V,UPVC
characteristic and performance
1/2'' to 2.5'' UPVC
New alloy material shell
Metal gear, large output torque
Active and Passive signals output
Voltage : AC 220V / 50Hz
With manual function, with open/clsoe indicator.
Power : alternating current: 14W
Working current: 500mA
Ourput torque : 100NM
Working pressure : 0 1.6Mpa
Temperature : 0 60 degree celsius
Open/close time: 18-25 seconds
Protection : IP67
Actuator code: CTF series
Voltage:DC12V,DC24V, AC220V,
Torque output: 25 NM- 100NM
Working Pressure: 0-1.6 Mpa(16bar)
Temperature:0 to 100 Degree Celsius
Size Scope: ball valve,15-65(mm); butterfly valve 40-125(mm)
Open/Close time: 10 -- 25sec
Number of wires: 2-5 wires
Protection class : IP67
Series CTF actuators with its smart design, wonderful shape, are suitable for many kinds of vavles. It has proved its superior quality for its stable nature, and good quality. These actuators are return type and suitable to DC or AC (will be set in the factory), can be controlled by outside cut off. This actuator run low cost and does not need to be maintained.
DC or AC (should be set in the factory), control mode is flexible, convenient to microprocessor and realize the automatic control by PLC.
Manual/electrically operated integrated design, Simply to operate.
Large output torque, inner protecting overheated device, working stable and reliable.
Low noise, good leak-proof. Through the coupling, the valve will be installed and operated easily.
