Home > Industrial Equipment & Components > Valve > Ball Valve > Electric Three-eccentric Metal-Seal BUtterfly Valve

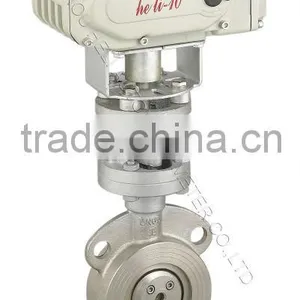

Electric Three-eccentric Metal-Seal BUtterfly Valve
US$ 1 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Wafter ButterflyvalveUS$ 1 - 1,000MOQ: 1 Set -
HL-05 Wafer Butterfly Valve for UPVCUS$ 1 - 500MOQ: 1 Set
-
Wafer PTFE Butterfly Valve With ActuatorUS$ 1 - 500MOQ: 1 Set
-
Hard Seal Butterfly Valve With Electric ActuatorUS$ 1 - 1,000MOQ: 1 Piece
-
Wafer PN16 Electric Butterfly Valve With CEUS$ 1 - 500MOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Butterfly
Pressure
Medium Pressure
Power
Other, electromotion
Material
Casting
Temperature of Media
Medium Temperature
Media
Water
Port Size
DN50~DN600
Place of Origin
Zhejiang, China
Brand Name
HELI
Product Description
Model |
HL-20 |
||||||||||
Voltage |
DC24V |
DC220V |
AC24V |
AC110V |
AC220V |
AC380V |
|||||
Motor Power |
40W |
||||||||||
Rated current |
8.0A |
0.35A |
5A |
0.9A |
0.48A |
0.25A |
|||||
Output Torque |
200N.m |
80N.m/100N.m/150N.m/200N.m |
|||||||||
Action Time |
10S |
9S/15S/20S/30S/60S |
|||||||||
Rotary angle |
0~90° |
||||||||||
Weight |
7kg |
||||||||||
Voltage-with standing valve |
500VAC/1minute |
1500VAC/1minute |
|||||||||
Insulated resistance |
100 MΩ/300VDC |
100 MΩ/500VDC |
|||||||||
Protection Class |
IP67 |
||||||||||
Surrounding temperature |
-25°C~60°C(The other temperatures can be customized) |
||||||||||
Installation angle |
Any angle |
||||||||||
Case material |
Aluminium-casting components |
||||||||||
Optional function |
Overload protection function, Heater |
||||||||||
For valve
| nominal diameter | DN50~DN600 | ||||
| nominal pressure | PN1.0MPa | PN1.6MPa | |||
| Nominal pressure | Strength test | PN1.5MPa | PN2.4MPa | ||
| Seal test | PN1.1MPa | PN1.76MPa | |||
| Materials/ode namec | C | P | R | ||
| Major parts | Valve body | FB | 304(CF8) | 316(CF8M) | |
| Valve disc | WCB | 304(CF8) | 316(CF8M) | ||
| Valve stem | WCB'stainless Steel | ||||
| O-ring | PTFE'stainless steel | ||||
| Packing | PTFE'flexible graphite | ||||
| Applicable Operating Mode | Applicable medium | watersteamoils | nitrose | acetic acid | |
| Suitable temperature | WCB:-29~425°C Stainless steel:-40~600°C | ||||
