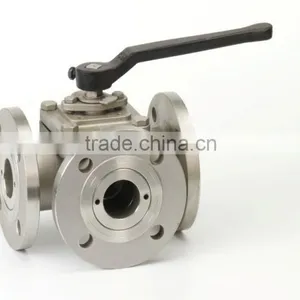

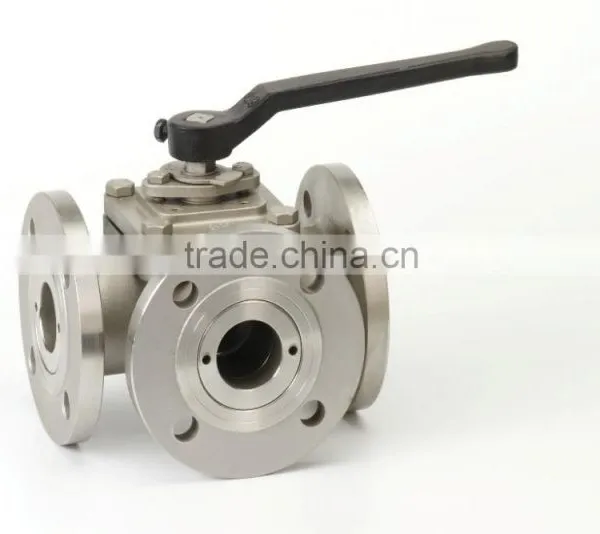

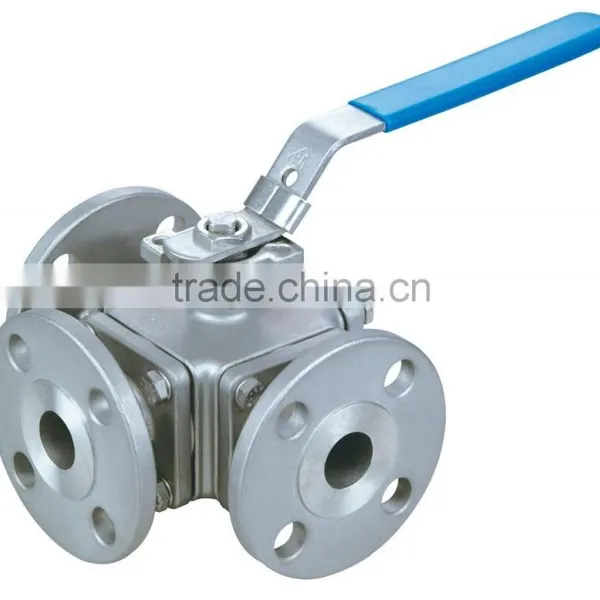

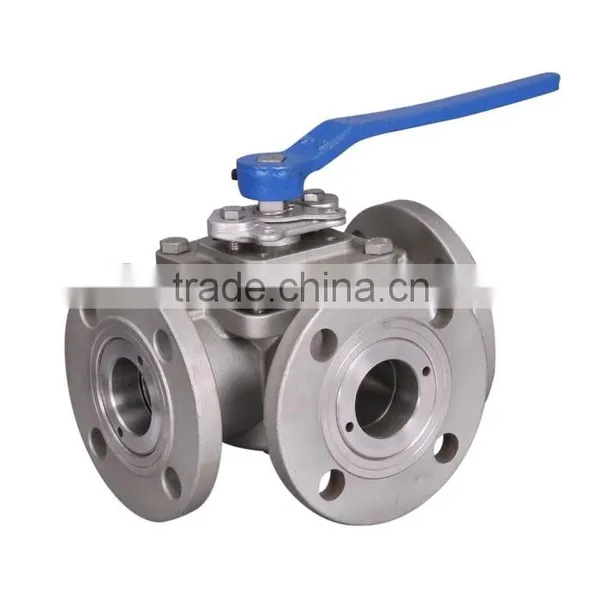

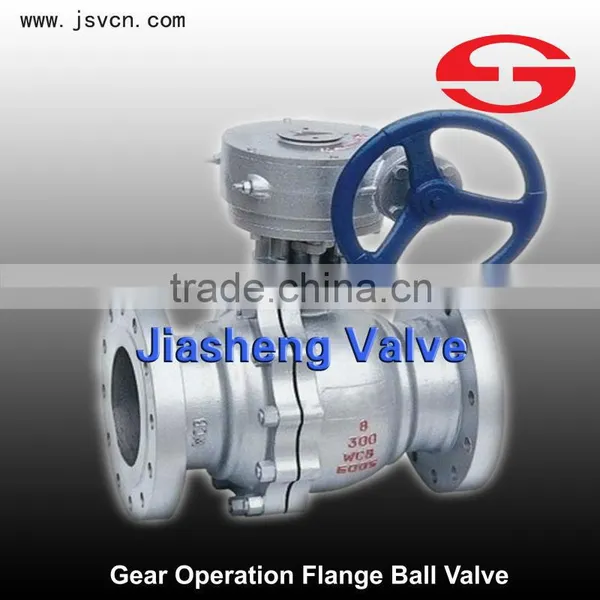

Help CenterGear Operation WCB Flange Ball Valve PN16
Related Products
-
API Manual Flange End Ball Valve for Water Oil GasUS$ 10 - 1,000MOQ: 1 Piece -
RF End Stainless Steel Ball ValveUS$ 10 - 2,000MOQ: 1 Piece
-
Board Brass Ball ValveUS$ 15 - 70MOQ: 10 Pieces
-
API WCB Stainless Steel Manual Ball ValveUS$ 10 - 1,000MOQ: 1 Piece
-
ANSI B16.5 Stainless Steel High Pressure Ball Valve for GasUS$ 10 - 1,000MOQ: 1 Piece
Standards:
| Design & Manufacture | BS5351, GB12237 |
| Face to Face | ANSI B16.10,GB12221 |
| Flange End | ANSI B16.5,JB/T79-94 |
| Test& Inspection | API 598,GB13927 |
Material Specification:
| Description | WCB | CF8 | CF3 | CF8M | CF3M |
| Body & Body Cap | A216-WCB | A315-CF8 | A35-CF3 | A351-CF8M | A351-CF3M |
| Ball | A105-1025, A216-WCB | A182-F304L, A315-CF8M | A182-F304L, A351-CF3 | A132-F316, A351-CF8M | A182-F316L, A351-CF3M |
| Stem | A182-F6a | A182-F304 | A182-F304L | A182-F316 | A182-F316L |
| Seat | RPTFE, PTFE, NYLON | RPTFE, PTFE, NYLON | RPTFE, PTFE, NYLON | RPTFE, PTFE, NYLON | RPTFE, PTFE, NYLON |
| Seat Retainer | A105-1025 | ||||
| Spring | 3yc-7, 17-49H | 3yc-7, 17-49H | 3yc-7, 17-49H | 3yc-7, 17-49H | 3yc-7, 17-49H |
| O-ring | NBR | VITON | VITON | VITON | VITON |
| Stud | A193-B7 | A193-B8 | A193-B8 | A193-B8 | A193-B8 |
| Nut | A194-2H | A194-8 | A194-8 | A194-8 | A194-8 |
Packing: plywood box or according to specific customer needing .
We can produce special valves according to the requirement of clients.
Wenzhou Jiasheng Valve Co., Ltd, is a professional valve manufacturer since 1995. Our main products include high temperature regulating metal to metal butterfly valves, rubber sealing butterfly valves, hydraulic butterfly valves, telescopic butterfly valves, ball valve, gate valve and etc. At present, we mainly produce/manufacture "ISO, API, ANSI, DIN, BS, EN, GB, JB" standard valves, also special valves according to the requirement of clients.
We have own factory :
Every product is under stringent detection and operation.
In 2015 , we had joined the Carton Fair .
If you interested , pls feel free to contact me .
