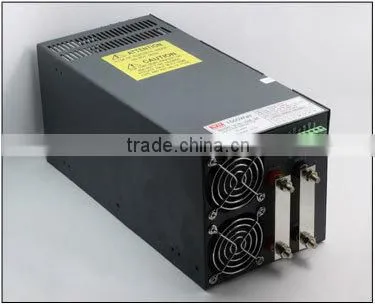

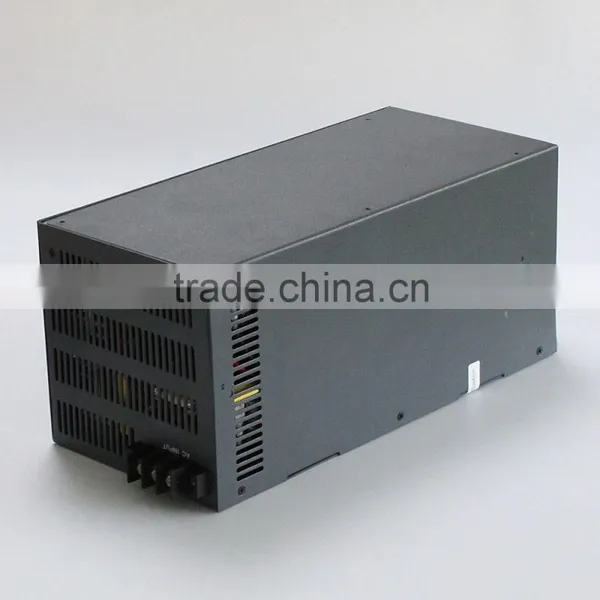

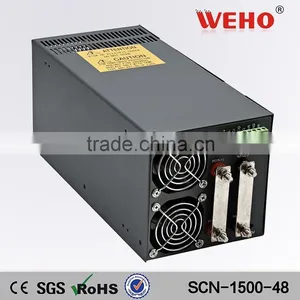

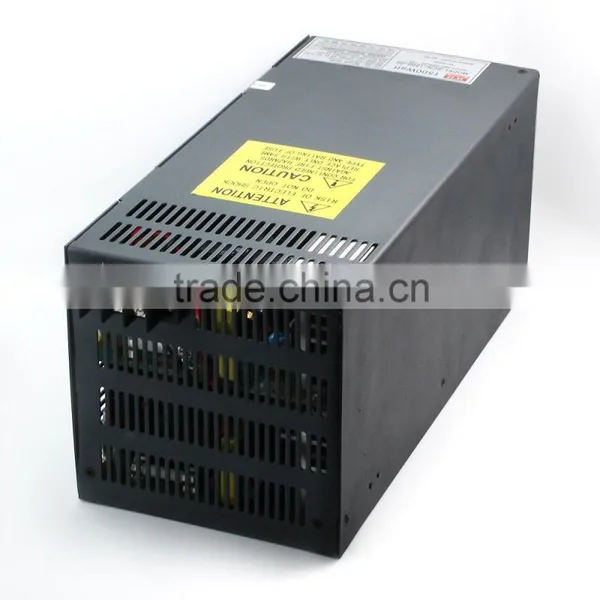

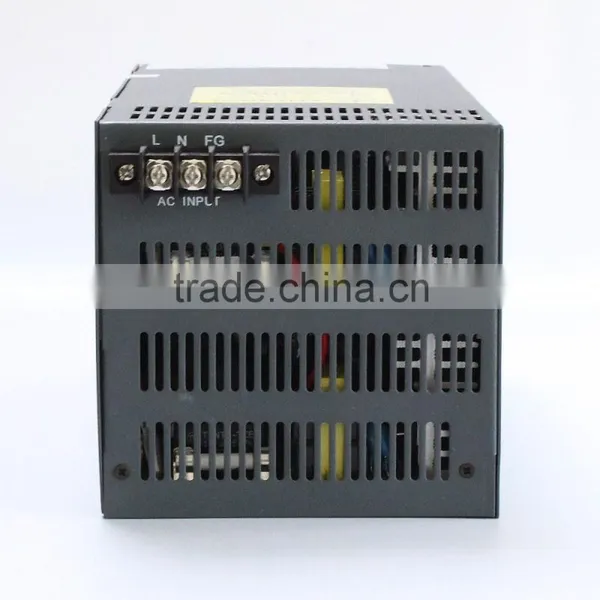

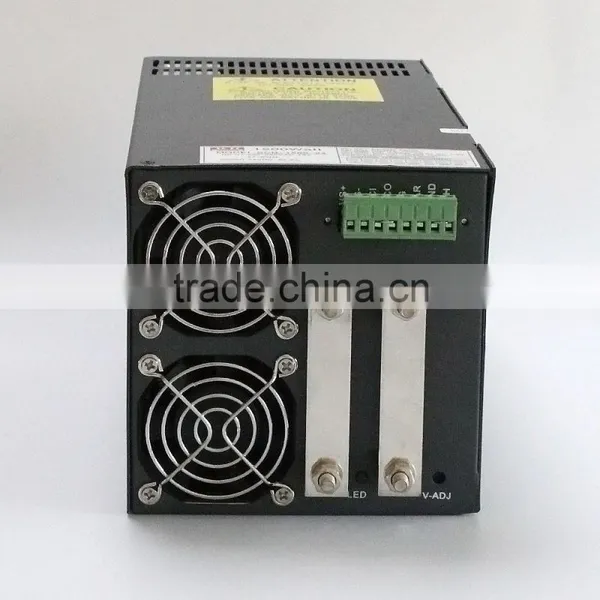

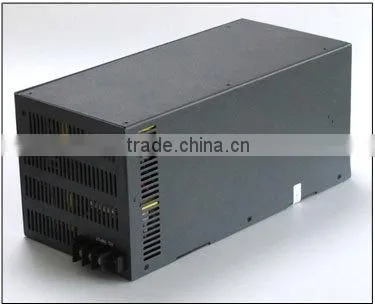

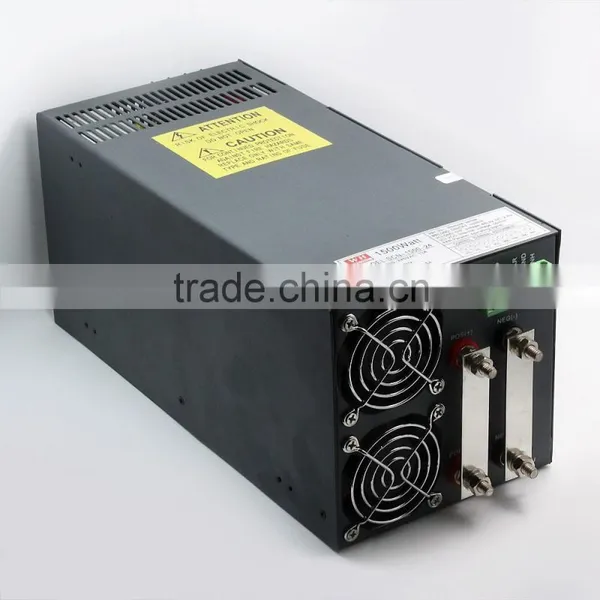

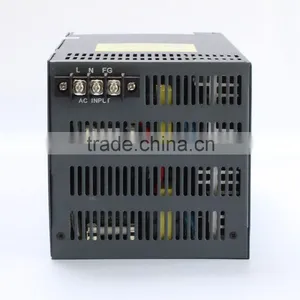

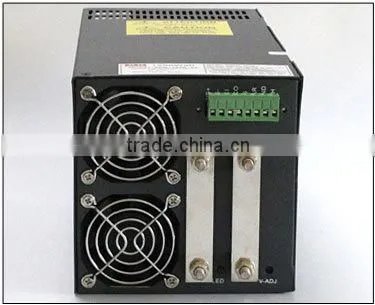

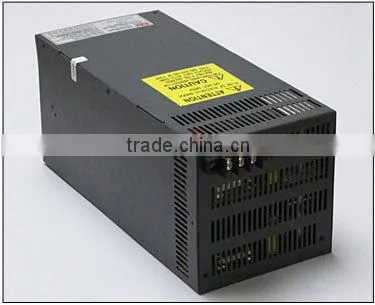

DC voltage single output 1500w power supply 24v 62.5a smps
|
Model Specification |
SCN-1500-5 |
SCN-1500-12 |
SCN-1500-15 |
SCN-1500-24 |
SCN-1500-48 |
DC output voltage |
5V |
12V |
15V |
24V |
48V |
Output voltage error (Note2) |
±2% |
±1% |
±1% |
±1% |
±1% |
Rated output current |
217.5A |
112.5A |
90A |
56.4A |
28.5A |
Output current rage |
0-217.5A |
0-112.5A |
0-90A |
0-56.4A |
0-28.5A |
Wave and noise(Note3) |
150mVp-p |
150mVp-p |
150mVp-p |
240mVp-p |
480mVp-p |
Inlet stability(Note4) |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
Load stability(Note5) |
±1% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
DC output power |
1000W |
1500W |
1500W |
1500W |
1500W |
Efficiency |
77% |
83% |
85% |
85% |
87% |
Adjustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
±10% |
AC input voltage range |
190~240VAC 47~63Hz |
||||
Input current |
12A/230V |
||||
AC impulse current |
150A/230V |
||||
Leakage current |
<3.5mA/240VAC |
||||
Overload protection |
105%~150%TypeTOLDBACK Reset auto recovery |
||||
Over-voltage protection |
.. |
||||
High-temperature protection |
.. |
||||
Temperature coefficient |
±0.03%°C(0~50°C) |
||||
Setup rise hold up time |
800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC |
||||
Vibration |
10~500Hz,2G 10min./1cycle,Period for 60min,Each axes |
||||
Withstand voltage |
Input and output interval1.5KvAC Input and enclosure1.5KvAC Output and enclosure0.5KvAC |
||||
Isolation resistance |
Input and output intervalInput and enclosure,Output and enclosure500VDC/100MΩ |
||||
Working temperature and humidity |
-10°C~+60°C,20%~90%RH |
||||
Store temperature and humidity |
-20°C~+85°C,10%~95RH |
||||
Overall dimension |
291*132*132mm |
||||
Weight |
4.75Kgs |
||||
Safety standards |
UL1012 TUV 60950(IEC950,UL1950) |
||||
EMC standards |
CLSPR22(55022),IEC801-2,3,4,IEC555-2 |
||||
We devote ourselves to offering humanized serving for each customer! No matter the business is big or small, we are always doing our best to offer our best services to our customers, and developing together
1. Two years warranty for each Item switching Power supply
2. strict quality control inspection before shipment
3. shockproof & high quality blister packing to protect the item from damaging during shipment
4. OEM design & OEM packing welcome
5. Strong production ability
6. Top 5 Global E-business Company of Alibaba
7. Service online,reply to you within 6 hours
8. Quality is the heart of our factory and service is the soul!
>MOQ:We support sample order. (1~5 pieces)
>More than 500 pieces, can print logo on the products.
>OEM/ODM welcome.
>24 months warranty.
>Shipping methods : by sea, by air, by express.
