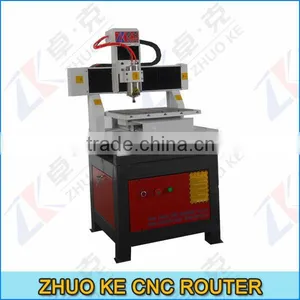

Engraving Machine for PCB 400*400 (ZK-4040)

US$ 2,000 - 5,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan Zhuoke CNC Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name ZK

Model Number 4040

Voltage 220V

Power(W) 1.5kw

Dimension(L*W*H) 90*92*160cm

Weight 155KG

Certification CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. PCB CNC Router 400*400
2. also for wood metal stone acrylic
3. Ncstudio control
4. Round guide rail & ballscrew
5.CE

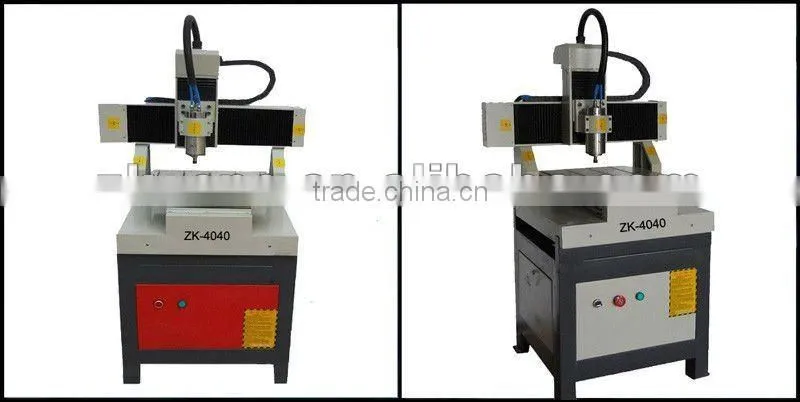

PCB CNC Router Machine 400*400mm (ZK-4040)

Machine features

Not only for the single sided board, but also for the double sided, and the processing are very simple.
Engraving speed is adjustable, possibly to forming the very slimsy circuit board, any time stopping in the processing progress.
Adjusting the Z-axis height in the processing processing.
Using the universal G code processing file, such as Power PCB, Protel 99 all can use for the circuit designing, better adaptability.
The estimation of the processing time, avoiding the long time meaningless waiting.
Isolation function, just needing 1-2 minutes, achieving the insulation for the circuit board and the surrounding copper.

Technical data

Items	Description	Items	Description
Working area	400*400mm	Working speed	adjustable
Transmission	high precision ball screw for X Y Z-axis	Driving mode	Stepper motor
Spindle power	1500w water cooling or higher	Spindle speed	0-24000rpm
Minimum processing line diameter	6-8mil	Minimum processing line distance	8mil
Minimum stepping distance	0.003125mm	Milling speed	5000mm/min
Processing panel	Single/double sided	Line isolation	Yes
Compatible software	PowerPCB, protell 99, etc	Operating system	Windows 2000/XP
Working humidity	30%-75%	Power supply	AC 220V 50/60Hz,or AC110V 50/60Hz
