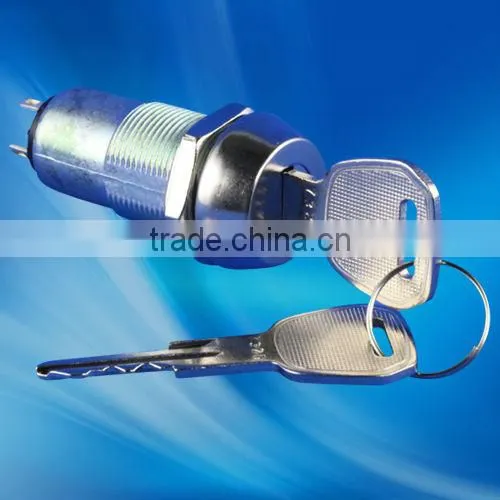

Large Full Size Switch Lock

Large Full Size Switch Lock thumbnail-1
Large Full Size Switch Lock photo-1
Negotiable MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
JINTAY
Model Number:
S246-3C
Contact Supplier Request Quote Chat Now
Jin Tay Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TAIWAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name JINTAY
Model Number S246-3C

Specifications

1. key switch lock.
2. zinc alloy die casting housing and cylinder
3. switch function on-on
4. 25 combinations available

Switch Lock, Key Switch Lock, Power Switch Locks, Rotary Switch, Padlock and Computer Lock, Security Locks, Security Products,


No.: S246-3C

Product Name: Key Switch Lock

DESCRIPTION:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • Stainless steel capped bezel, dust shutter mechanism.
  • 5 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and terminals.
  • 2 position (off-on) 3 terminals.
  • Hex nut mounted.
  • All keyed alike or 25 combinations standard.
  • 100 combinations available.

SPECIFICATIONS:
  • Contact Rating: 4A 125VAC, 2A 250VAC
  • Contact Resistance: 10 Milli-Ohms Max.
  • Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
  • Dielectric Strength: 1500 VAC - 1 Minute.

KEY-PULL FIGURES :

-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull



Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn     Type
1 S246-3C-2 1 2 3 1 90 ° On On SPDT
2 S246-3C-2 1 2 3 2 90 ° On On SPDT
