F&C FF-12 high quality fiber optical amplifier with potentionmeter
Specification
| F&C FF-12 high quality fiber optical amplifier with potentionmeter | |
| Model | FF-12 |
| Output Mode | NPN |
| Operating Voltage | 12~24V DC |
| Reaction Time | 200us |
| Timer Function | 40ms OFF Delay timer |
| Current Consumption | 100mA Max |
| Load Current | 10mA Max @24V DC |
| Short-circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Output Indicator | Red LED |
| Power Indicator | Green LED |
| Isolation Resistance | 20M Ω @500V DC |
| Insulation Strength | 60 seconds @500V AC 60HZ |
| Operating Temperature | -10~50℃ |
| Operating Humidity | 35~85%RH |
| Waterproof Grade | IP64 |
| Material |
Shell: heat-resistant ABS, cover: polycarbonate fiber optic sensor fixed rod: PPS |
| Weight | 65g |
| Accessory | Mounting Bracket |
| Connecting Method | Pre-wired wires |
FF-12 High Speed Fiber Optic Amplifier w/ potentionmeter

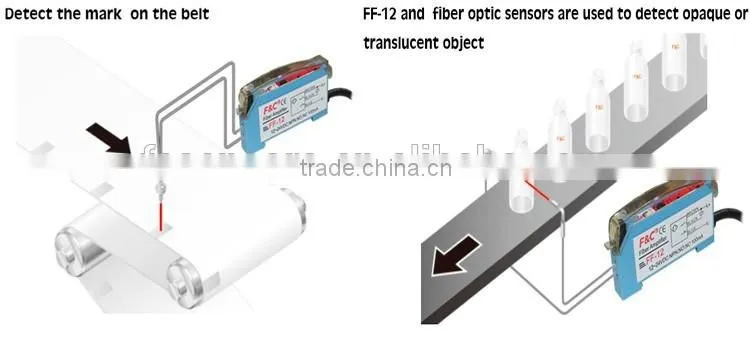

Application
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to customers all over the world. Our products cover 14 series and 3000 specification.
Our main products include fiber optic sensor, fiber optic amplifier, Fiber Optic Lens, Proximity sensor, Photoelectric sensor,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor,
Magnetic Switch,M8 M12 Female Connector, Laser Sensor, Color Sensor,Rail Power Supply,
Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new
application, Our Target is “Sensors you need can be found in F&C Sensing Technology”
Welcome to contact with us, I can be reached by cellphone:86-13809275350 and Skype:lynn_liu123.
