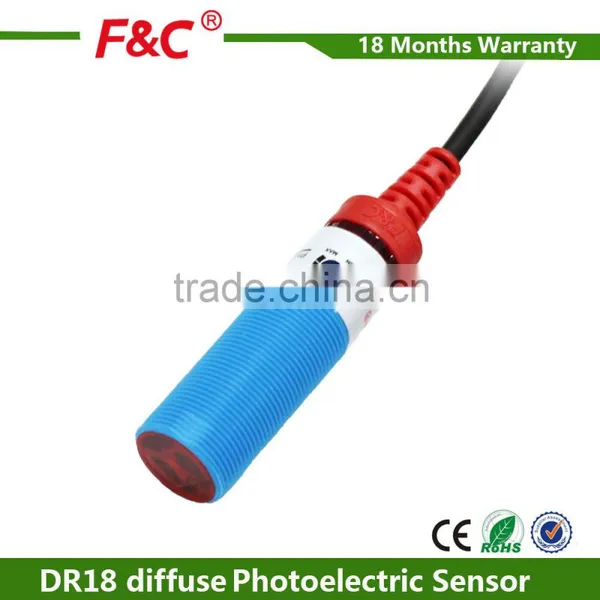

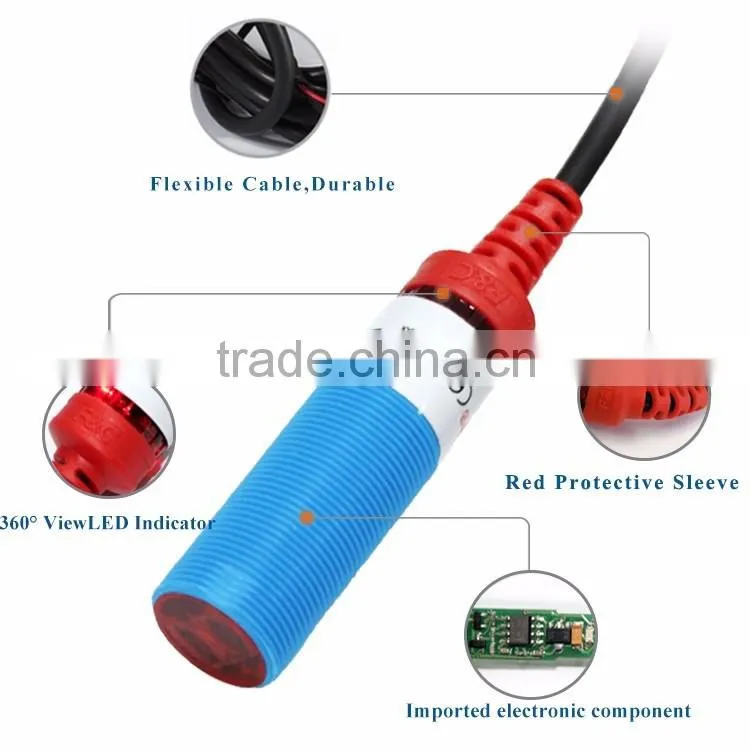

M18 10-30v dc NPN diffuse photoelectric sensor with CE
Application
M18 diffuse photoelectric sensors are widely used on the automation flow, conveyor system to insepct the goods etc.
Advantage
1. Integrated structure, waterproof grade can reach IP66.
2. Through-beam, retro-reflective, diffuse photoelectric sensor for option
3. Standard sensing distance:10cm,40cm,2M, 5M, 10M and detection distance can be customized
4. 90 degree connecting and direct connecting are available.
Specification
| M18 10-30v dc NPN diffuse photoelectric sensor | |
| Model | DR18RI-S10N R2M |
| Output Method | NPN NO |
| Detection Type | Diffuse |
| Standard Detection Object | 10cm*10cm(White Paper) |
| Detection Distance | 10cm |
| Light Source | 850nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.3ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
| Weight | 107g |

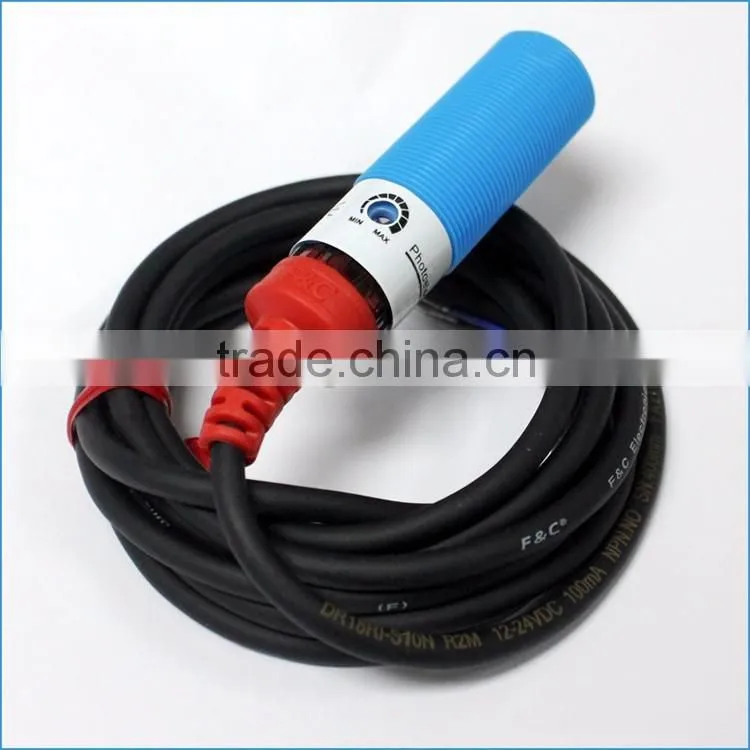

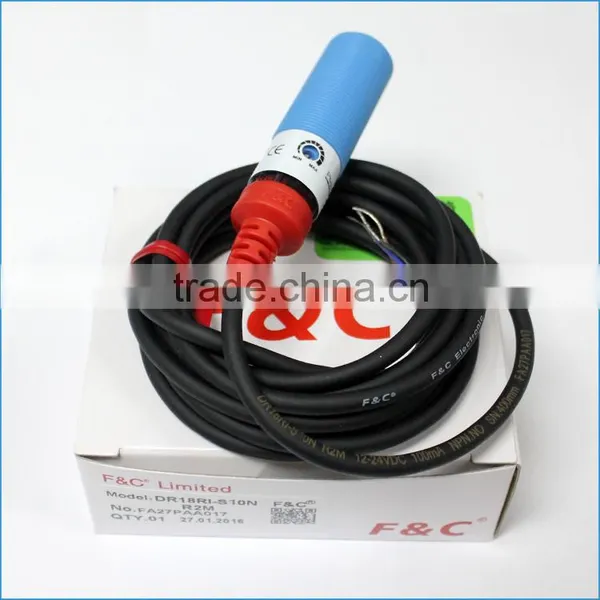

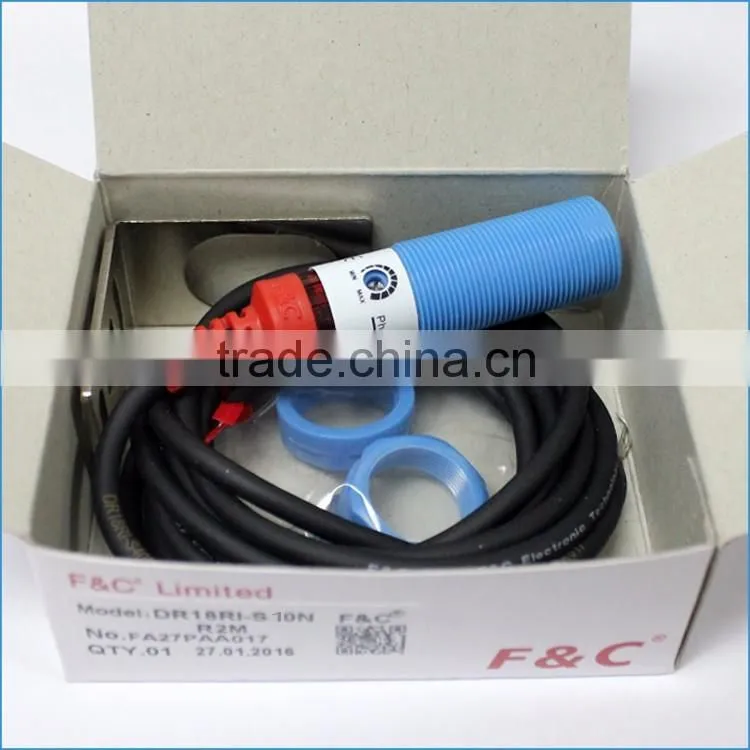

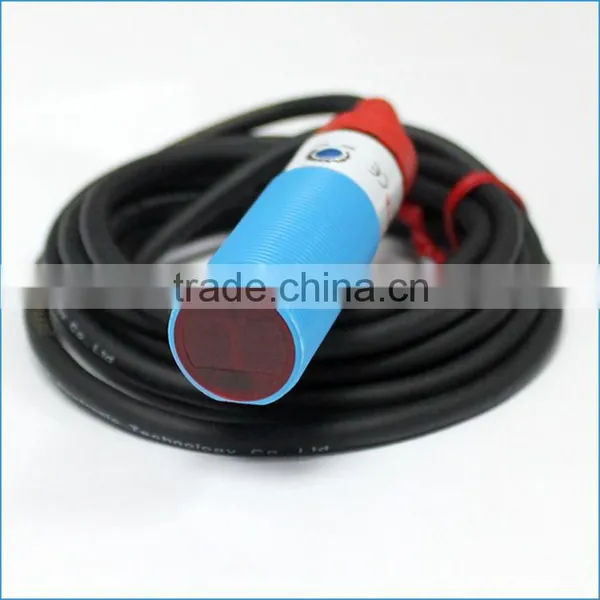

Product Display
M18 10-30v dc 10cm diffuse reflective photoelectric sensor can be adjusted by end-user, each photoelectric sensor has one screw driver for end-user to do some micro adjustment.
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and Changsha factory in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to all over the world.Its products cover 14 series and 3000 specification. Our main product include Fiber Optic Sensor, Fiber Optic Amplifier, Fiber Optic Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new application,. Our Target is “What you need can be found in F&C Sensing Technology”
