F&C DR18 series M18 40cm sensing Diffuse photoelectric sensor
Feature of DR18 series photoelectric switch sensor
1. Integrated structure, waterproof grade can reach IP66
2. Through-beam, retro-reflective, diffuse photoelectric switches for option
3. Detection distance is adjustable.
4. 90 degree connecting and direct connecting are available.

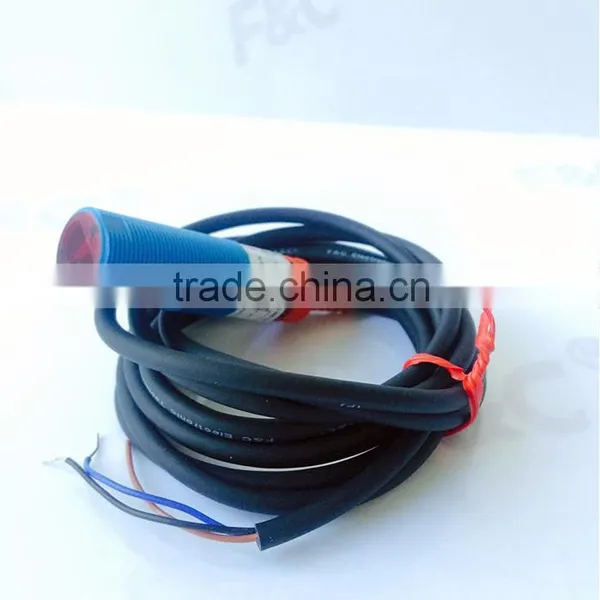

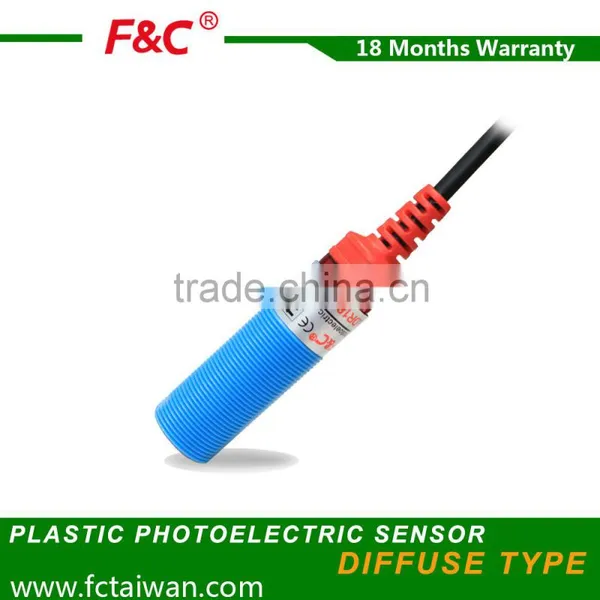

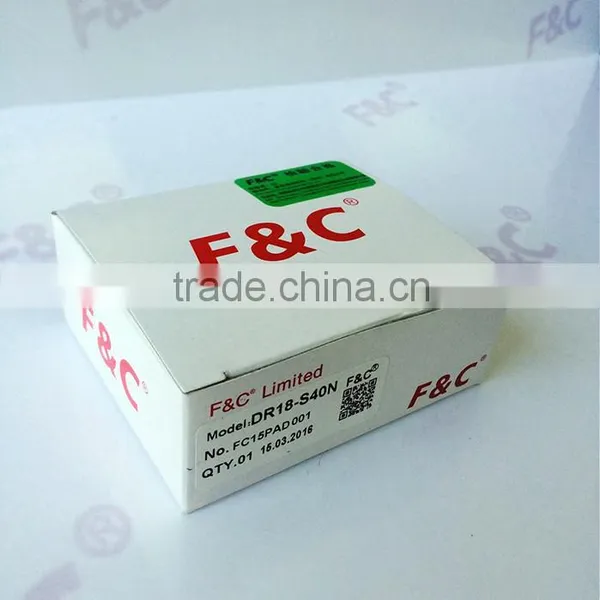

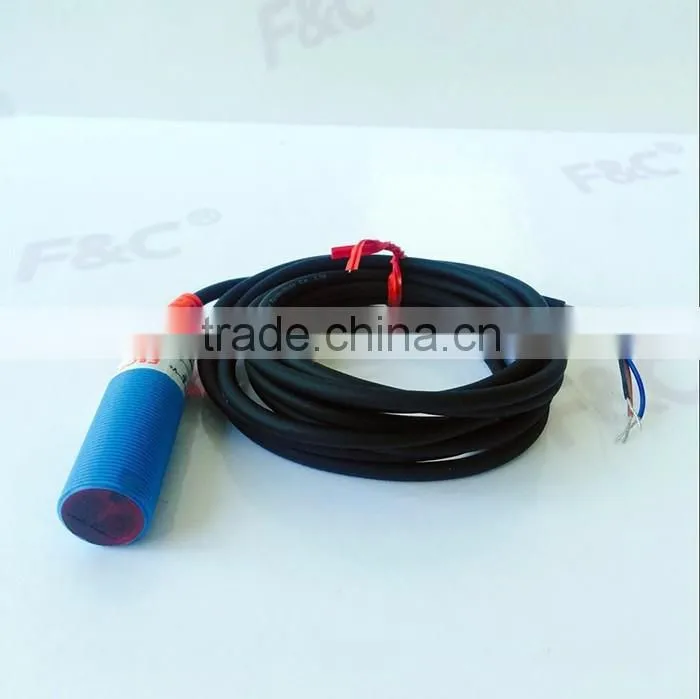

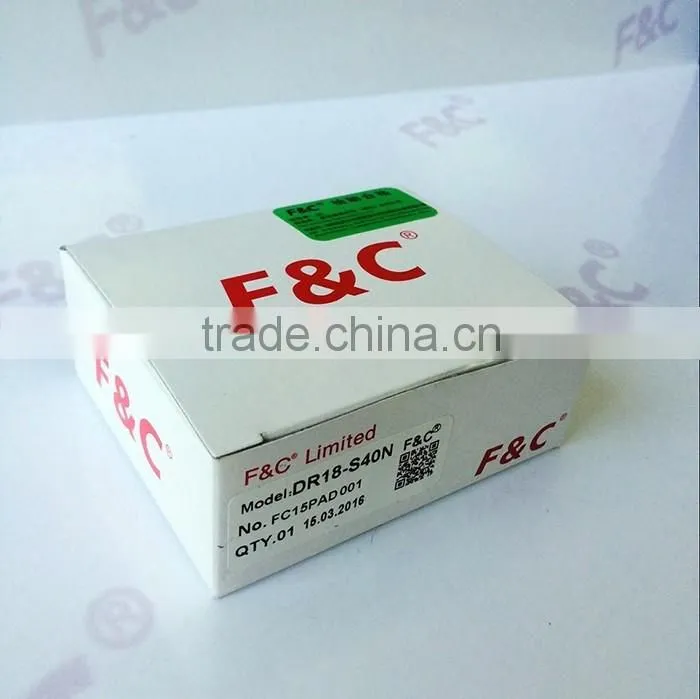

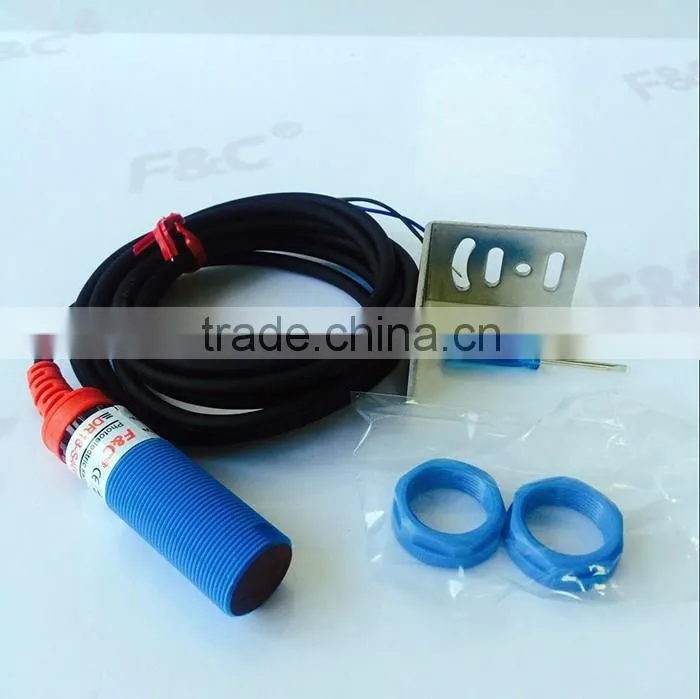

Product display
M18 40cm detection Diffuse type photoelectric switch sensor
Product specification
| Model | DR18RI-S40N R2M |
| Output Method | NPN NO |
| Detection Type | Diffuse |
| Standard Detection Object Size | 10cm*10cm(White Paper) |
| Detection Distance | 40cm |
| Light Source | 850nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.3ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
| Weight | 107g |
Dimension Drawing
Order information
140 kinds of regular sensors have stock, it cut lead time obviously.
Sample is available and welcome.
Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are available.
Lead time: 3 working days for sample order, 7 working days for mass order.
