Help CenterF&C Most Cheapest U Shape Photoelectric Sensor
Related Products
-
0-5V Voltage Analog Output Diffuse Photoelectric SensorUS$ 23.52 - 38.81MOQ: 1 Piece -
1500mm Sensing NPN NO 12V dc Through-beam Mini Photoelectric SensorUS$ 10 - 20MOQ: 1 Piece
-
F&c 10mm NPN PNP 10-30V DC TOP INDUCTION Photoelectric Sensor for GlassUS$ 5.68 - 9.38MOQ: 10 Pieces
-
HR Series Waterproof Retro-reflective Photoelectric Sensor With ReflectorUS$ 12.07 - 18.11MOQ: 1 Piece
-
F&C 100cm Detection Distance Rectangular NPN NO Diffuse Photoelectric SensorUS$ 10.65 - 15.98MOQ: 1 Piece
Dear customer,
Welcome to visit our products.
We are a professional manufacturer. Our factory gets involved in sensor industry in 2003.
Our main products are fiber optic amplifier, fiber optic tube, proximity switch, photoelectric switch, label sensor, light curtain, laser alignment, pressure sensor, magnetic switch, connector, laser sensor, color mark sensor, rail din power supply, solid state ray.
Hope you will find that is suitable for your products. If not,pls contact me
skype:lynn_liu123 ,we’ll find solutions for you.
Feature of Small slot photoelectric switch
1.No effect by external light
2.6 kind of shape for 5mm width slot photoelectric sensor
3.lead line can be extended as you want(3m,5m,20m even 50m)
4.All slot photoelectric switch is waterproof , oil-proof and dust-proof
5.5VDC photoelectric switch can be customized
Product display

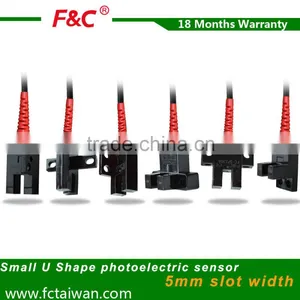

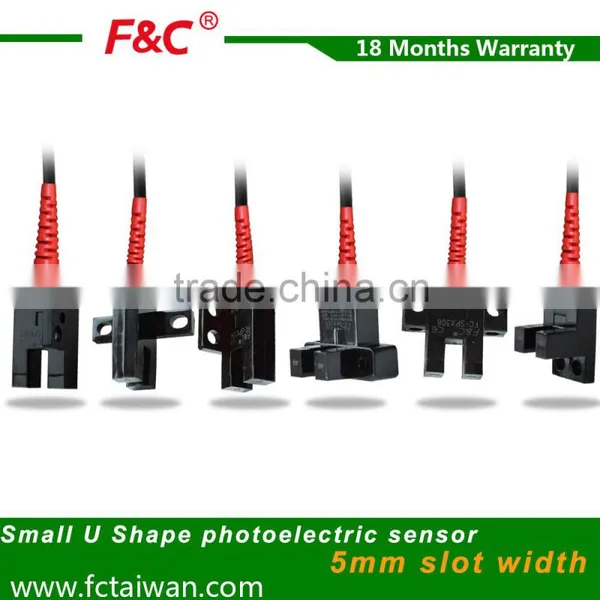

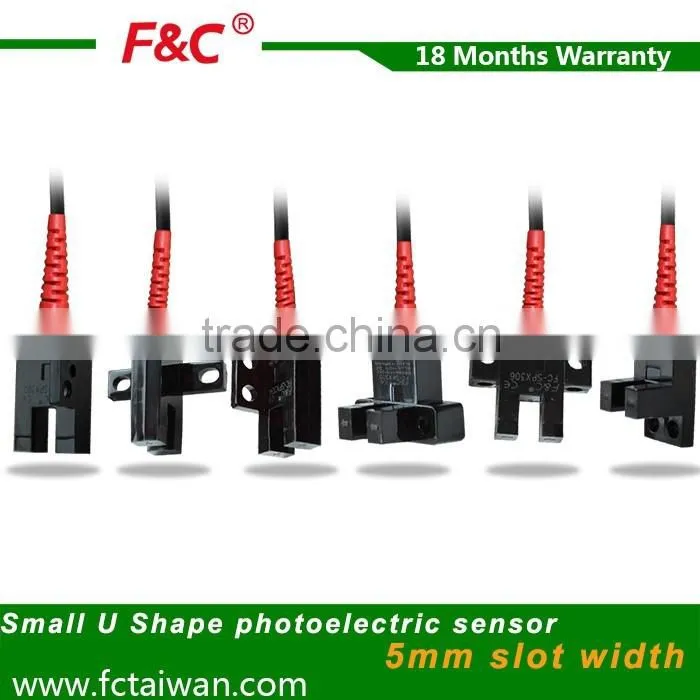

U shape 5mm slot width photoelectric switch sensor
Product specification for U shape 5mm slot width photoelectric switch sensor
| Model | FC-SPX304 |
| Output Method | NPN NO+NC |
| Standard Detection Object Size | diameter 1mm opaque objects |
| Repeat accuracy | 0.02mm |
| Detection Distance | 5mm |
| Light Source | 940 nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.3ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP64 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | Prewired diameter 3mm*2M/- 4wires |

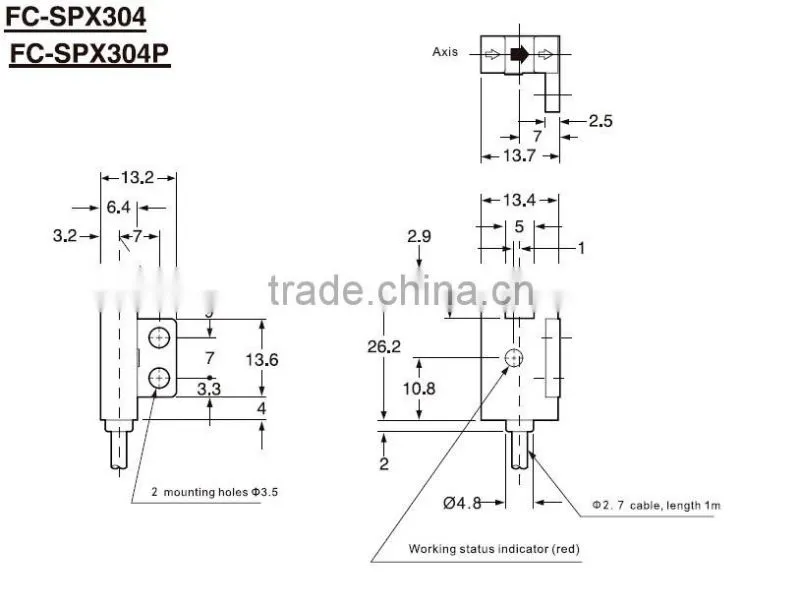

Dimension drawing for U shape 5mm slot width photoelectric switch sensor with CE certificate
Our service
About product: All our sensors use high quality material and we accept customization of all kinds of sensors
About warranty: we promise replacement within 18 months if any quality problems are found.
About lead time: For sample, 3work days only.
For mass production order, 7 days after deposit.
About price: The most favorable price in the same quality products.
Our factory
F&C Sensing Technology(Hunan)Co.,Ltd ,specialized in researching ,developing,producing and marketing high quality industrial automating sensors, located in Building 1, Luguyuyuan,No#27 Wenxuan Road, High-Tech Development Zone, Changsha, Hunan.
F&C has become a famous brand at home and aboard.
Looking into the future, our company will continuously adhere to the quality policy of “Being innovative and perfect to pursue flawlessness; Keeping improving to satisfy customer needs”.
F&C Sensing Technology History
F&C Sensing Technology was established in Taiwan in 1996
Establish branch office in Dongguan in 2003.
Establish factory in Dongguan 2006.
Establish factory in Changsha in 2013
Order information
140 kinds of regular sensors have stock, it cut lead time obviously.
Sample is available and welcome.
Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are available.
Lead time: 3 working days for sample order, 7 working days for mass order.
Contact information
Skype:lynn_liu123
Tel/ Wechat:+86 13809275350
