Dear customer,
Welcome to visit our products.
We are a professional manufacturer. Our factory gets involved in sensor industry in 2003.
Our main products are fiber optic amplifier, fiber optic tube, proximity switch, photoelectric switch, label sensor, light curtain, laser alignment, pressure sensor, magnetic switch, connector, laser sensor, color mark sensor, rail din power supply, solid state ray.
Hope you will find that is suitable for your products. If not,pls contact me
skype:lynn_liu123 ,we’ll find solutions for you.
Feature of Small slot photoelectric switch
1.FC-SPX308 and FC-SPX309 can detect transparent object such as glass.
2.5VDC photoelectric switch can be customized
3.Wires can be extended as you want(3m,5m,20m even 50m)
Product display
Product specification
| Model | FC-SPX309 |
| Output Method | NPN NO+NC |
| Standard Detection Object Size | diameter 1mm opaque objects |
| Repeat accuracy | 0.02mm |
| Detection Distance | 10mm |
| Light Source | 940 nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.3ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP64 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | Prewired diameter 3mm*2M/- 4wires |

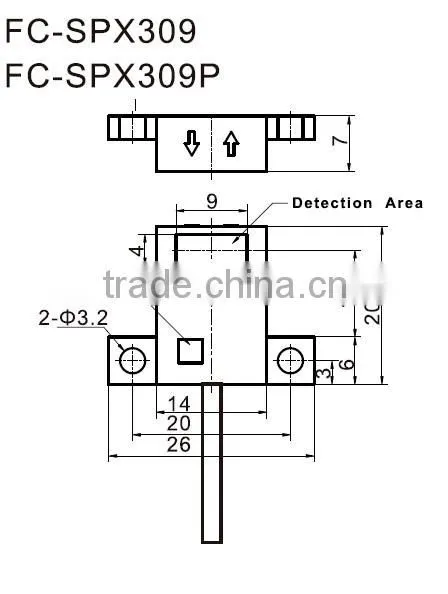

Dimension drawing for
Order information
140 kinds of regular sensors have stock, it cut lead time obviously.
Sample is available and welcome.
Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are available.
Lead time: 3 working days for sample order, 7 working days for mass order.
Contact information
Skype:lynn_liu123
Tel/ Wechat:+86 13809275350
