M18 NPN NO Through-beam waterpoof photoelectric sensor with CE
Feature of DR18 series Through-beam waterpoof photoelectric sensor
1. Integrated structure, waterproof grade can reach IP66
2. Through-beam reflection
3. 10m detection distance
4. 90 degree connecting and direct connecting are available.
DR18 Series Product Information
DR18TI-S1000N R2M NPN NO
DR18TI-S1000N2 R2M NPN NC
DR18TI-S1000P R2M PNP NO
DR18TI-S1000P2 R2M PNP NC
DR18TI-S1000NC R2M NPN NO+NC
DR18TI-S1000PC R2M PNP NO+NC
Product specification for Through-beam photoelectric sensor
| Model | DR18TI-S1000N R2M |
| Output Method | NPN NO |
| Detection Type | Through-beam |
| Standard Detection Object | diameter 5mm opaque objects |
| Detection Distance | 10m |
| Light Source | 850nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.3ms Max. |
| Protection Degree | IP66 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
Welcome to contact with me for more details, I can be reached by skype:lynn_liu123 and whatsapp:+86 13319542018

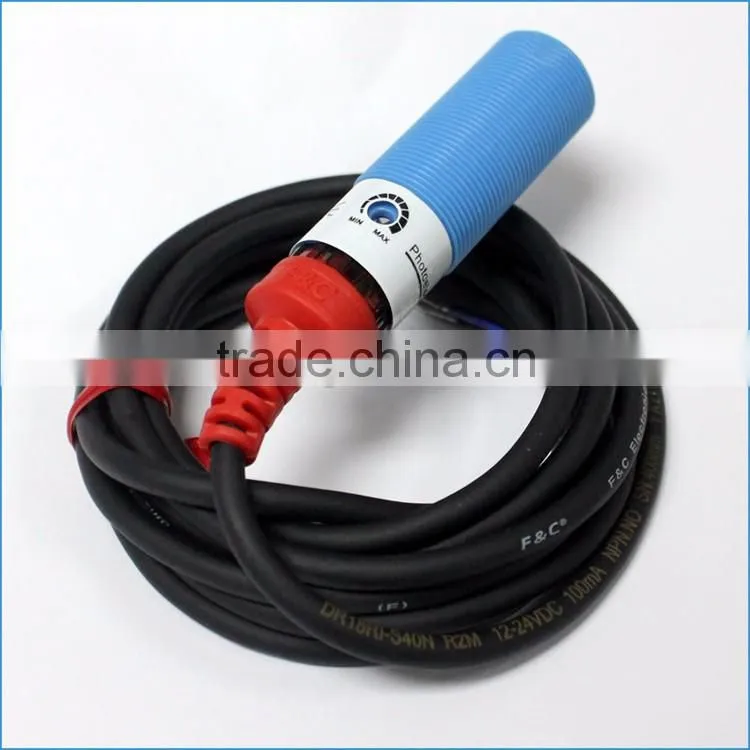

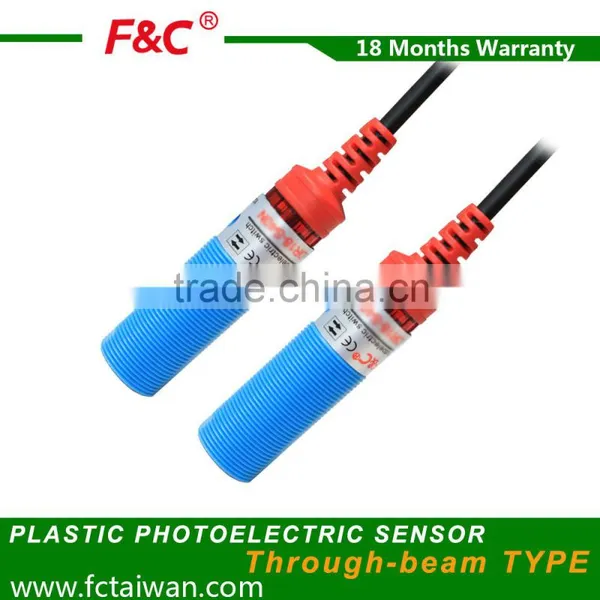

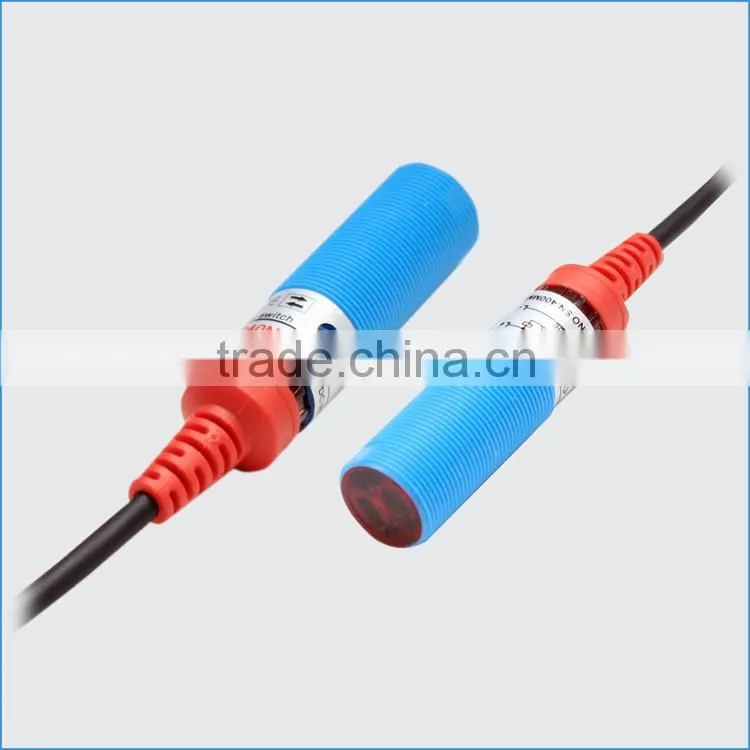

Product display

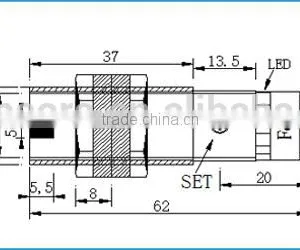

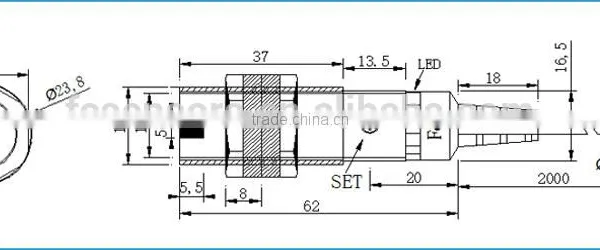

Dimension Drawing
Our Service
About product: All our sensors use high quality material and we accept customization.
About warranty: we promise replacement within 18 months if any quality problems are found.
About lead time: For sample, 3work days only.
For mass production order, 7 days after deposit.
About price: The most favorable price in the same quality products.
Our factory
F&C Sensing Technology(Hunan)Co.,Ltd ,specialized in researching ,developing,producing and marketing high quality industrial automating sensors, located in Building 1, Luguyuyuan,No#27 Wenxuan Road, High-Tech Development Zone, Changsha, Hunan.
F&C has become a famous brand at home and aboard.
Looking into the future, our company will continuously adhere to the quality policy of “Being
innovative and perfect to pursue flawlessness; Keeping improving to satisfy customer needs”.
Order information
Sample is available and welcome.
Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are available.
Lead time: 3 working days for sample order, 7 working days for mass order.
