Help CenterF&C Voltage Analog Output Diffuse Photoelectric Sensor
Related Products
-
Small Square NPN Diffuse Photoelectric Sensor for SalesUS$ 1 - 17MOQ: 1 Piece -
FC-spx200 Series Photoelectirc Sensors, U Shape Photoelectric Sensors, Small Size, With Circuit ProtectedUS$ 3 - 7MOQ: 5 Pieces
-
FC-spx300 Series Fork Sensor, Groove Sensor/Slot Sensor , U Shape Sensors, 5mm Slot, Different Install WayUS$ 3 - 7MOQ: 5 Pieces
-
CR-200 Series Rectangled Photoelectirc Sensors, 200cm Mirror Reflective Photoelectric SwitchesUS$ 15 - 25MOQ: 5 Pieces
-
CR-500/1000 Series Rectangled Photoelectirc Sensors, 500cm/1000cm Through-beam Photoelectric SwitchesUS$ 18 - 25MOQ: 5 Pieces
Dear customer,
Welcome to visit our products.
We are a professional manufacturer. Our factory gets involved in sensor industry in 2003.Our Photoelectric switches are divided into HR series, QR series,DR18 Series,DR12series,DR06 Series by the dimension, which can meet different space installation requirement.We also have DR18 metal photoelectric sensors.
Welcome to conact with us for professional solution.
Feature of HR series photoelectric switch sensor
1.Suitable for general-purpose logistics photoelectric sensor.
2.Detection distance 100-300mm.
3.1-5V voltage analog output

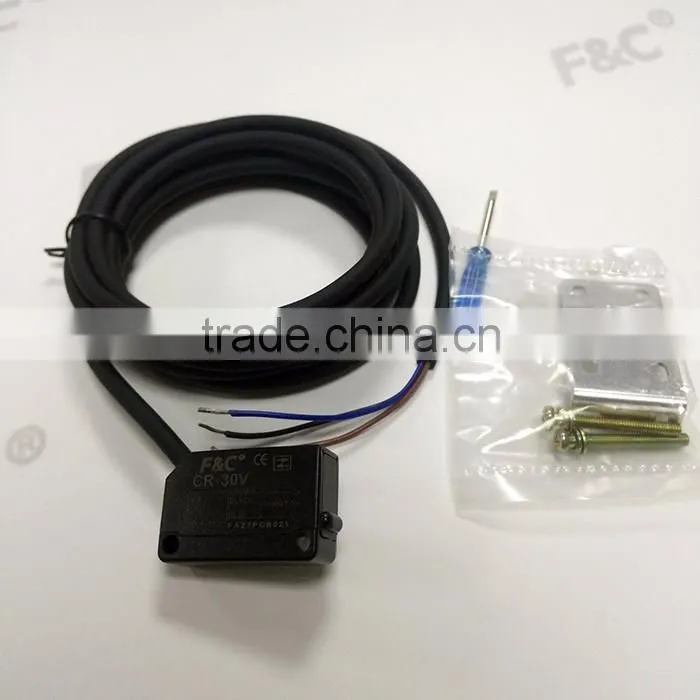

Product Display
Product Specification
| Model | CR-30V |
| Detection Type | Diffuse |
| Standard Detection Object Size | 10cm*10cm(White Paper) |
| Detection Distance | 100-300MM |
| Output Type | 1-5V voltage analog output |
| Light Source | 630nm Red modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.5ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -20℃-60℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
Dimension Drawing
Our service
About product: All our sensors use high quality material and we accept customization.
About warranty: We promise replacement within 18 months if any quality problems are found.
About lead time: For sample, 3work days only.
For mass production order, 7 days after deposit.
About price: The most favorable price in the same quality products.
Our factory
F&C Sensing Technology(Hunan)Co.,Ltd ,specialized in researching ,developing,producing and marketing high quality industrial automating sensors, located in Building 1, Luguyuyuan,No#27 Wenxuan Road, High-Tech Development Zone, Changsha, Hunan.
F&C has become a famous brand at home and aboard.
Looking into the future, our company will continuously adhere to the quality policy of
“Being innovative and perfect to pursue flawlessness; Keeping improving to satisfy
customer needs”.
Order information
140 kinds of regular sensors have stock.Sample is available and welcome.
Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are available.
Lead time: 3 working days for sample order, 7 working days for mass order.
