FC-spx200 Series Photoelectirc Sensors, U Shape Photoelectric Sensors, Small Size, With Circuit Protected

FC-spx200 Series Photoelectirc Sensors, U Shape Photoelectric Sensors, Small Size, With Circuit Protected thumbnail-1
FC-spx200 Series Photoelectirc Sensors, U Shape Photoelectric Sensors, Small Size, With Circuit Protected thumbnail-2
FC-spx200 Series Photoelectirc Sensors, U Shape Photoelectric Sensors, Small Size, With Circuit Protected photo-1

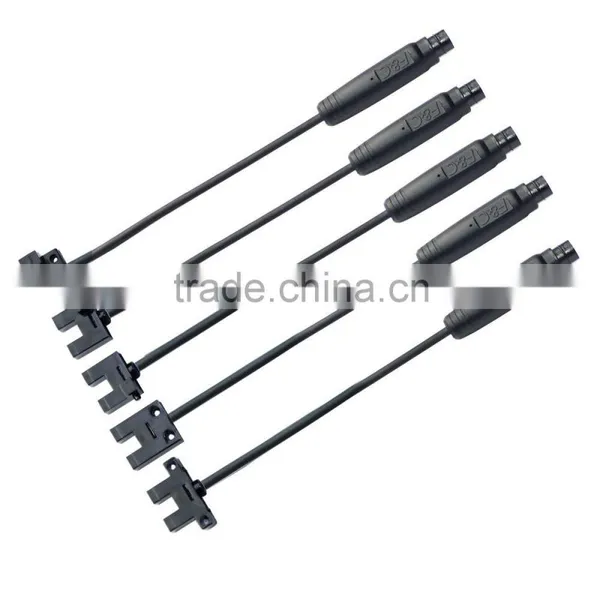

FC-spx200 Series Photoelectirc Sensors, U Shape Photoelectric Sensors, Small Size, With Circuit Protected photo-2
US$ 3 - 7 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FC-spx200series
Contact Supplier Request Quote Chat Now
F&C Sensing Technology (Hunan) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name F&C
Model Number FC-spx200series
Usage Position Sensor
Theory Optical Sensor
Output Switching Transducer

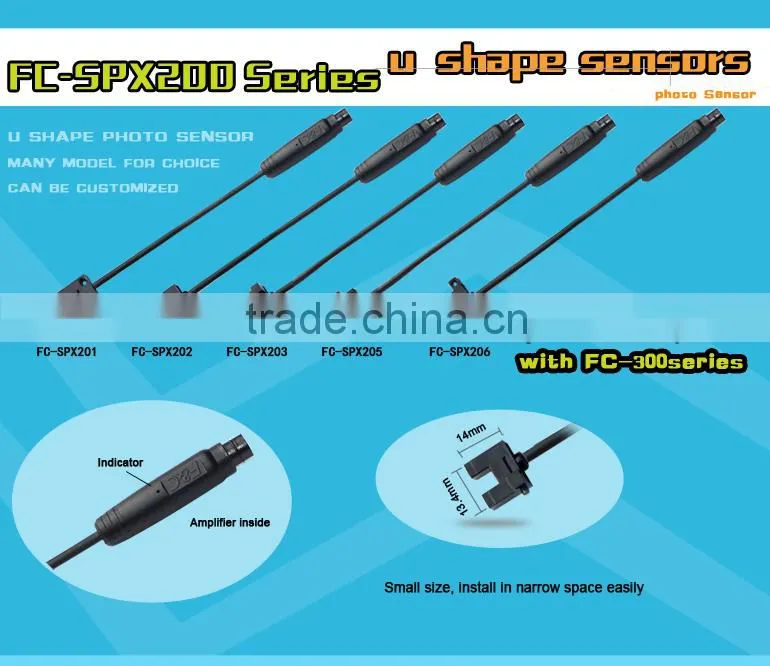

FC-spx200 series photoelectirc sensors, U shape photoelectric sensors, small size, With Circuit Protected



PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.



Product Description


Emitting light
 Red LED:630nm
Operating voltage
 DC:10~30VDC±10%(Ripple P-P:10%Max)
Current consumption
 15mA Max
Load current
 100mA Max at DC 24V
Output type
 N=NPN.NO P=PNP.NPN
Protection circuit

Reversed supply ciruit protection,short citcuit protection output
Response time
 0.3 ms Max
Insulation resistance
 20M Ωmin.(DC500V)
Voltage withstandatility
 AC1000V 60Hz for 60 Sec
Operating temperature
 -10°C~+45°C(No freezing allowed
Ambient hunidity
 35%~95%RH
Storage temperarure
 -10°C~+55°C(No freezing allowed )
Storage hunidity
 35%~95%RH
Material
 ABS
Wiring method
 φ2.6×2M/4-wires/φ4.2×2M/3-wires/φ4.2×2M/4-wires
Protection degree
 IP66
Weight
 Approx.18.5g

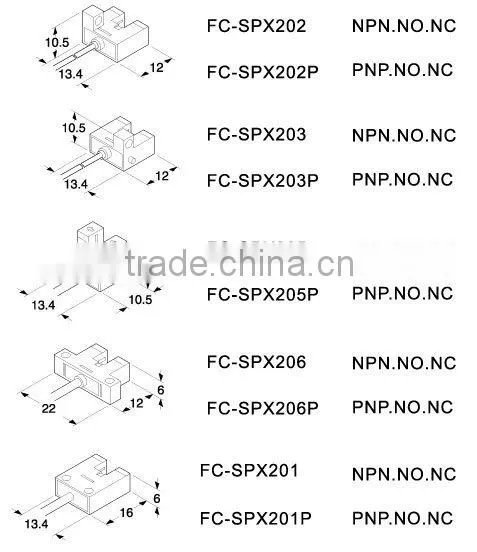

Diagram


 FC-spx200 series photoelectirc sensors, U shape photoelectric sensors, small size, With Circuit ProtectedFC-spx200 series photoelectirc sensors, U shape photoelectric sensors, small size, With Circuit Protected
