Micro U Shape Photo Sensor, Amplifier Outside, 4-Wire, 5mm Slot Size, 5vDC Offered.

Micro U Shape Photo Sensor, Amplifier Outside, 4-Wire, 5mm Slot Size, 5vDC Offered. thumbnail-1
Micro U Shape Photo Sensor, Amplifier Outside, 4-Wire, 5mm Slot Size, 5vDC Offered. thumbnail-2
Micro U Shape Photo Sensor, Amplifier Outside, 4-Wire, 5mm Slot Size, 5vDC Offered. thumbnail-3

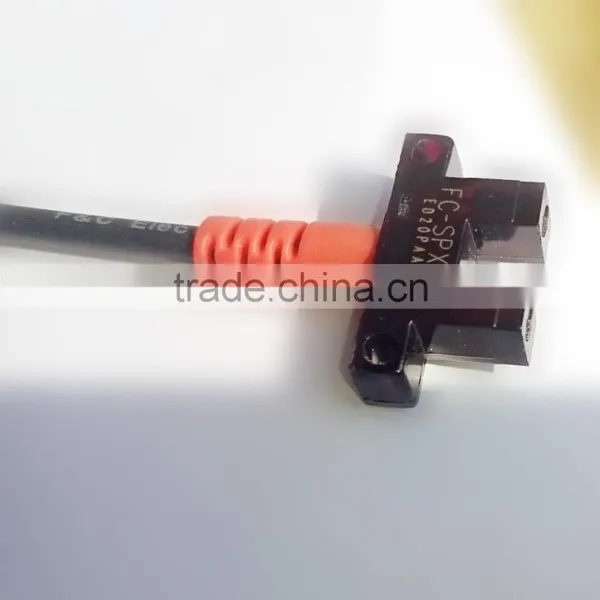

Micro U Shape Photo Sensor, Amplifier Outside, 4-Wire, 5mm Slot Size, 5vDC Offered. photo-1
Micro U Shape Photo Sensor, Amplifier Outside, 4-Wire, 5mm Slot Size, 5vDC Offered. photo-2

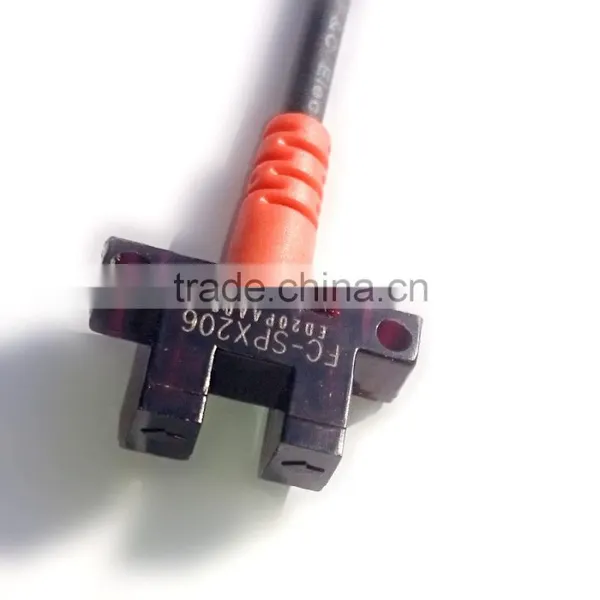

Micro U Shape Photo Sensor, Amplifier Outside, 4-Wire, 5mm Slot Size, 5vDC Offered. photo-3
US$ 4 - 7 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FC-spx206 series
Contact Supplier Request Quote Chat Now
F&C Sensing Technology (Hunan) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name F&C
Model Number FC-spx206 series
Usage Position Sensor
Theory Optical Sensor
Output Switching Transducer

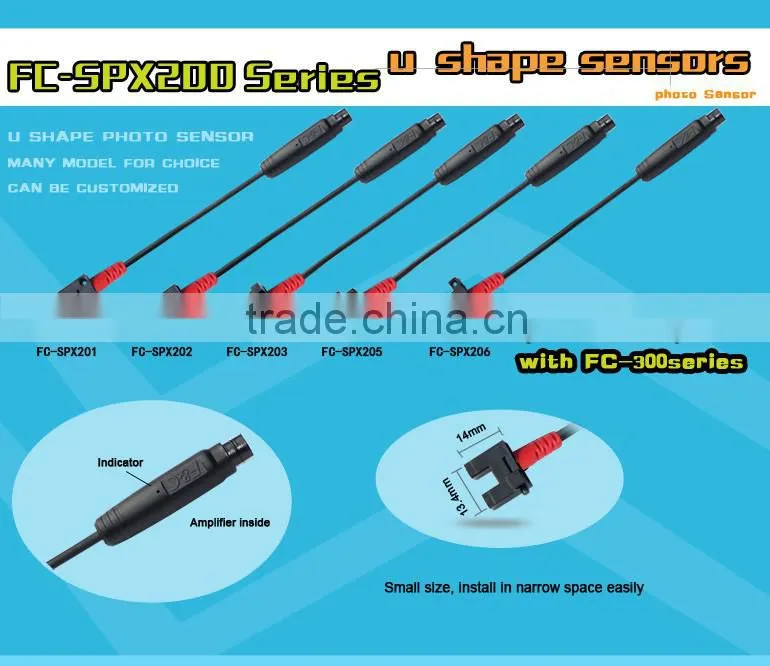

Micro U Shape Photo sensor, Amplifier Outside, 4-Wire, 5mm Slot Size, 5vDC Offered.



PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.



Product Description




Models
 Detection Mode
 Detection Distance
Entry Cable
FC-SPX206P PNP.NO.NC 5mm 3-wires, cable type
FC-SPX206N NPN.NO.NC
FC-SPX206P/15D PNP.NO.NC M8 with 150mm cable, 3-pins, Connector type.
FC-SPX206N/15D NPN.NO.NC



Emitting light
 Red LED:630nm
Operating voltage
 DC:10~30VDC±10%(Ripple P-P:10%Max)
Current consumption
 15mA Max
Load current
 100mA Max at DC 24V
Output type
 N=NPN.NO P=PNP.NPN
Protection circuit

Reversed supply ciruit protection,short citcuit protection output
Response time
 0.3 ms Max
Insulation resistance
 20M Ωmin.(DC500V)
Voltage withstandatility
 AC1000V 60Hz for 60 Sec
Operating temperature
 -10°C~+45°C(No freezing allowed
Ambient hunidity
 35%~95%RH
Storage temperarure
 -10°C~+55°C(No freezing allowed )
Storage hunidity
 35%~95%RH
Material
 ABS
Wiring method
 φ2.6×2M/4-wires/φ4.2×2M/3-wires/φ4.2×2M/4-wires
Protection degree
 IP66
Weight
 Approx.18.5g

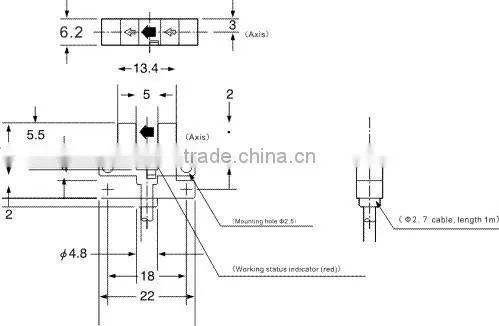

Diagram


 Micro U Shape Photo sensor, Amplifier Outside, 4-Wire, 5mm Slot Size, 5vDC Offered.Micro U Shape Photo sensor, Amplifier Outside, 4-Wire, 5mm Slot Size, 5vDC Offered.
