M18 infrared Through-beam NPN NC photoelectric switch sensor
Feature
1. Integrated structure, waterproof grade can reach IP66
2. Through-beam, retro-reflective, diffuse photoelectric switches for option
3. Detection distance is adjustable.
4. 90 degree connecting and direct connecting are available.

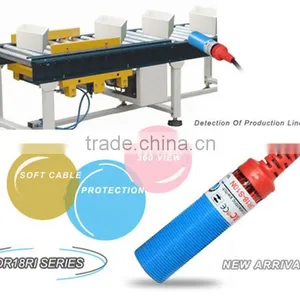

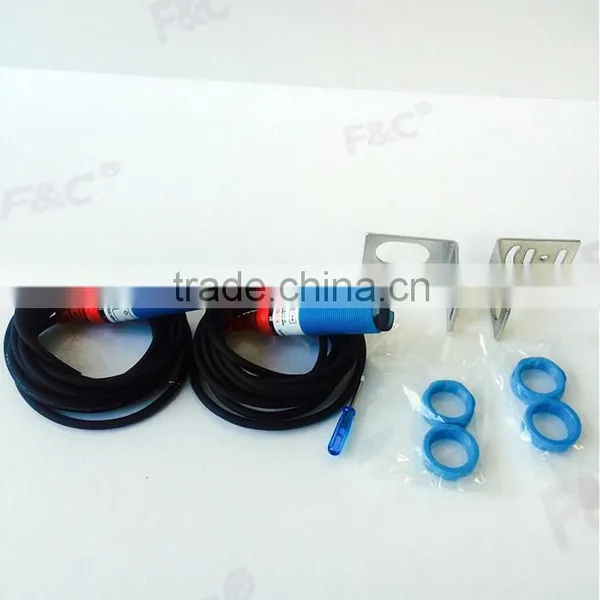

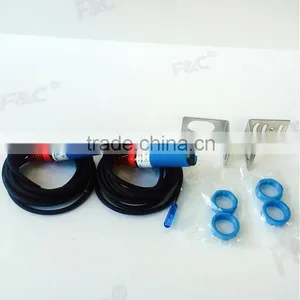

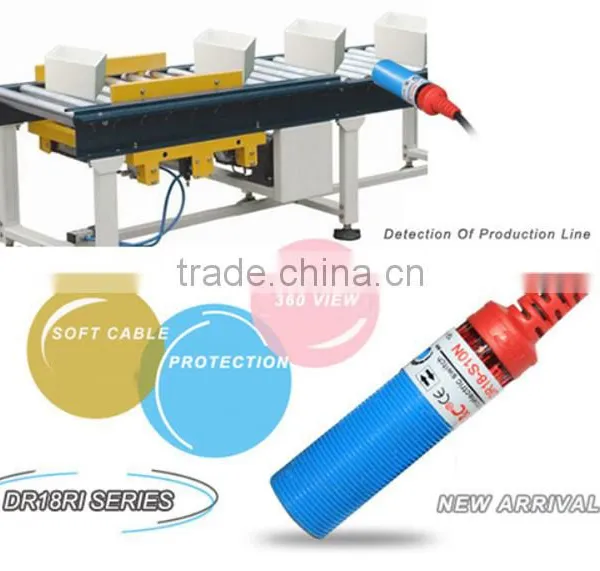

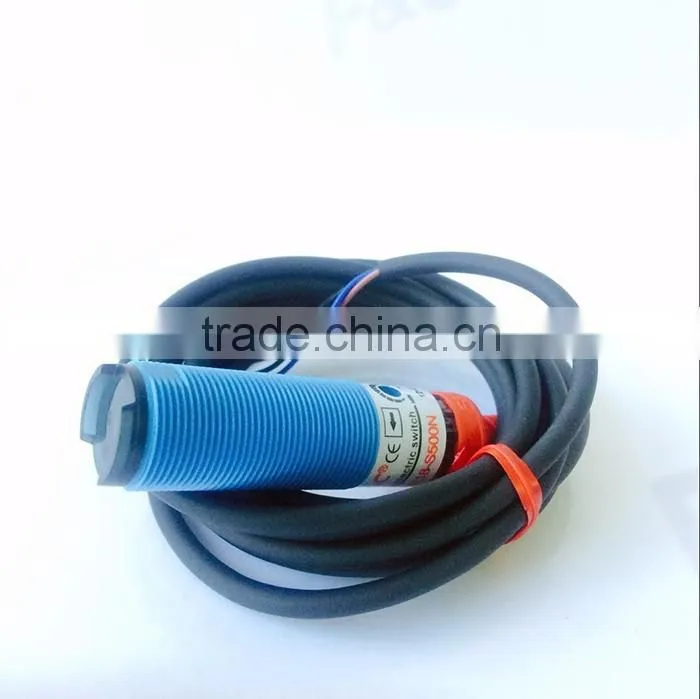

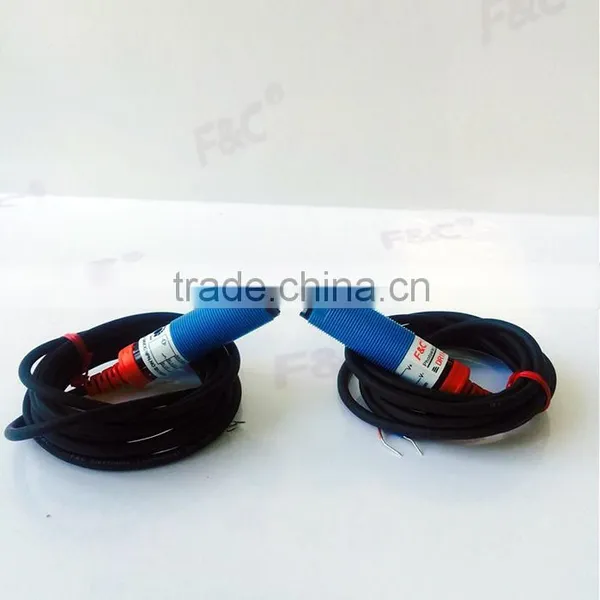

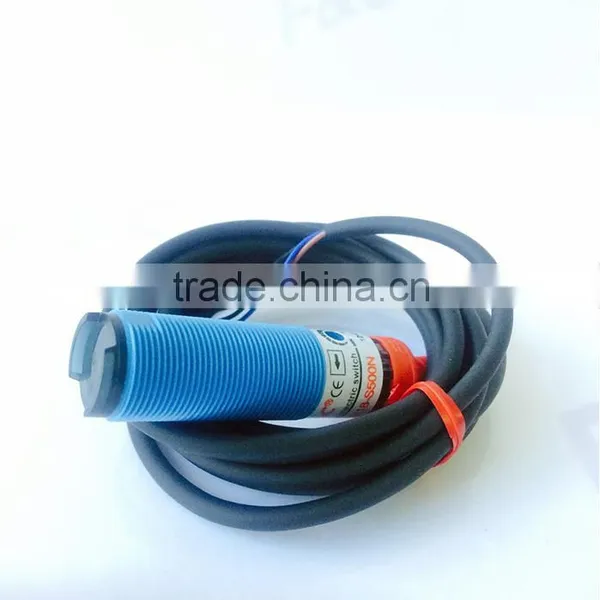

Product display

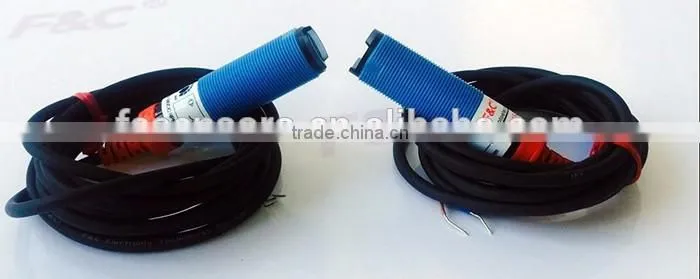

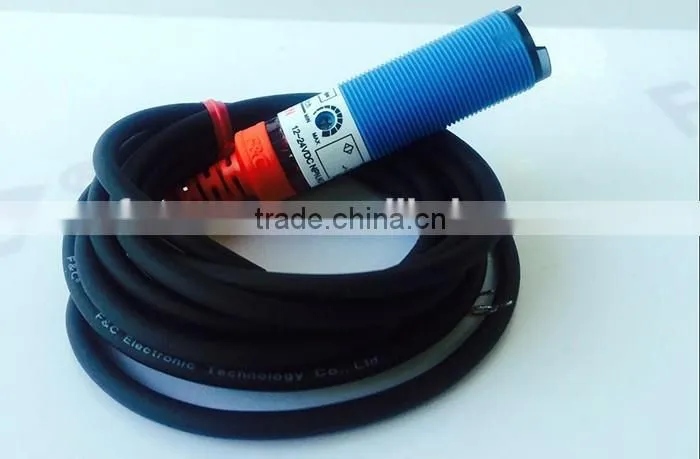

M18 cylinder 5m Through-beam NPN NC infrared photoelectric switch sensor
Specification
| M18 cylindrical Through-beam NPN NC photoelectric switch sensor | |
| Model | DR18TI-S1000N2 R2M |
| Output Method | NPN NC |
| Detection Type | Through-beam |
| Standard Detection Object Size | diameter 5mm opaque objects |
| Detection Distance | 10m |
| Light Source | 850nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.3ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
| Weight | 107g |

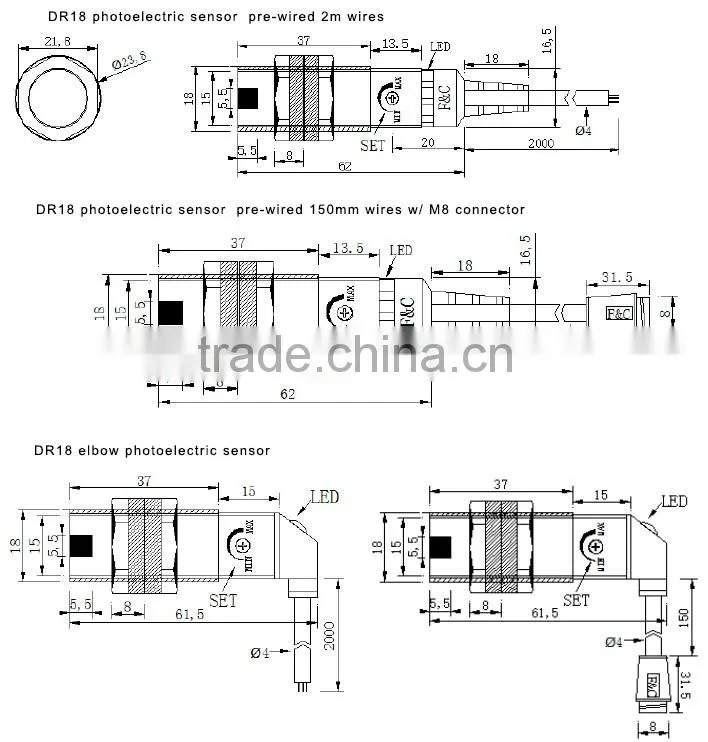

Dimension Drawing
M18 photoelectric sensor info
| Reflection Type | PN | Output Method | Detection Distance | Standard Detection Object |
| Through-beam | DR18TI-S1000N R2M | NPN NO | 10m | diameter 5mm opaque object |
| DR18TI-S1000N2 R2M | NPN NC | |||
| DR18TI-S1000P R2M | PNP NO | |||
| DR18TI-S1000P2 R2M | PNP NC | |||
| DR18TI-S1000NC R2M | NPN NO NC | |||
| DR18TI-S1000PC R2M | PNP NO NC | |||
| Through-beam | DR18TI-S500N R2M | NPN NO | 5m | diameter 5mm opaque object |
| DR18TI-S500N2 R2M | NPN NC | |||
| DR18TI-S500P R2M | PNP NO | |||
| DR18TI-S500P2 R2M | PNP NC | |||
| DR18TI-S500NC R2M | NPN NO NC | |||
| DR18TI-S500PC R2M | PNP NO NC | |||
| Retroreflective | DR18MR-S200N R2M | NPN NO | 2m | diameter 5mm opaque object |
| DR18MR-S200N2 R2M | NPN NC | |||
| DR18MR-S200P R2M | PNP NO | |||
| DR18MR-S200P2 R2M | PNP NC | |||
| DR18MR-S200NC R2M | NPN NO NC | |||
| DR18MR-S200PC R2M | PNP NO NC | |||
| Diffuse | DR18RI-S40N R2M | NPN NO | 40cm | 10mm*10mm white paper |
| DR18RI-S40N2 R2M | NPN NC | |||
| DR18RI-S40P R2M | PNP NO | |||
| DR18RI-S40P2 R2M | PNP NC | |||
| DR18RI-S40NC R2M | NPN NO NC | |||
| DR18RI-S40PC R2M | PNP NO NC | |||
| Diffuse | DR18RI-S10N R2M | NPN NO | 10cm | 10mm*10mm white paper |
| DR18RI-S10N2 R2M | NPN NC | |||
| DR18RI-S10P R2M | PNP NO | |||
| DR18RI-S10P2 R2M | PNP NC | |||
| DR18RI-S10NC R2M | NPN NO NC | |||
| DR18RI-S10PC R2M | PNP NO NC |
