Help CenterVisible Red Light Photo Sensor,300mm Detection Distance,suitable for Logistics Device
Related Products
-
Slot Optical Sensor,level Detection,waterproof Oilproof DustproofUS$ 3.45 - 5.18MOQ: 1 Piece -
EN Standard NPN NO NC Background Suppression Diffuse Photoelectric Switch SensorUS$ 43.91 - 72.45MOQ: 1 Piece
-
100mm Bgs Function Diffuse Photoelectric Sensor With CEUS$ 1 - 58MOQ: 1 Piece
-
F&C M18 Metal Diffuse Photoelectric Sensor for SalesUS$ 14.32 - 17.62MOQ: 1 Piece
-
M18 10-30v dc NPN Diffuse Photoelectric Sensor With CE Quality ChoiceUS$ 5 - 15MOQ: 1 Piece
Know more information about the product,welcome to contact me at any time via Skype:Lulu_Lu1995 or cellphone:86-15173188970
Product display
Specification
| Model | CR-30R | CR-30V |
| Detection distance | 100~300mm | 300mm |
| Light source | Red LED:630nm | |
| Operating voltage | DC12-24V +-10% | |
| Current consumption | 15mA Max | |
| Load current | 100mA Max at DC 24V | |
| Output type | 1-5v voltage output analog | Visible red light |
| Protection circuit | Power anti-received protection and short circuit protection |
|
| Response time | 0.5ms Max | |
| Insolation resistance | 20MΩmin.(DC500V) | |
| Dielectric strength | AC1000V 60Hz for 60sec | |
| Operating Temperature | -10℃-+50℃ | |
| Storage temperarure | -20°C~+60°C(No freezing allowed ) | |
| Storage humidity | 35%-95% Relative humidity | |
| Operating humidity | 35%-85% Relative humidity | |
| Waterproof degree | IP66 | |
| Material | ABS | |
| Wiring method | φ4×2M/3-wires | |
| Weight | Approx.20g | |

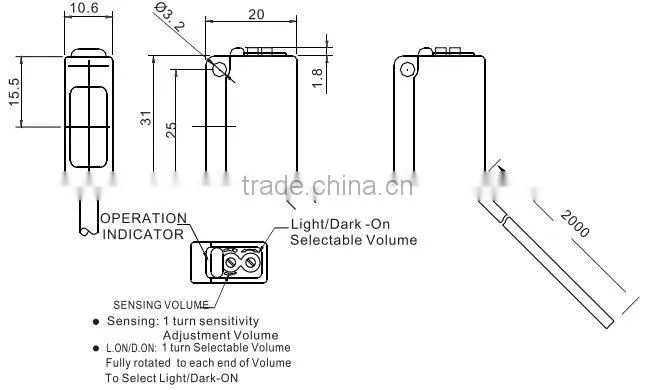

Dimension Drawing
Certifications
More product
Our services
1.Prompt reply to our customer, we have to reply all the email within 24hrs.
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Enterprise profile
F&C main product include fiber optic amplifier , fiber optic sensor, fiber optic lens, proximity sensor, photoelectric sensor, label sensor, light curtain, laser alignment, pressure sensor,magnetic sensor, M8 M12 female connector, laser sensor, color sensor,rail power supply,solid state relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”.
Packaging&Shipping
1.We will ship our product aboard with standard export package.
2.For small Qty, We will Ship our product to you by express.
3.For mass production , We will ship our product to you by Air or sea.
