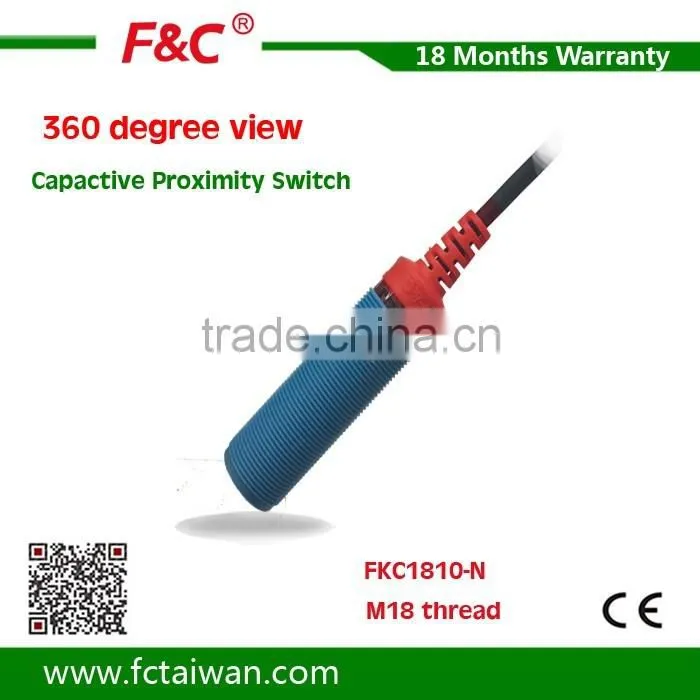

M18 NPN NO Capacitive proximity Switch Sensor
Feature:
1.360 degree LED light , easy to know the status.
2.suitable for Liquid and non-metal detection.
3.M18 capacitive proximity switch accept customization of Aluminum ,copper material
Specification for OEM NPN NO Capacitive proximity Switch Sensor and 5mm capacitance position sensor
| Model | FKC1810-N |
| Detection Distances | 10mm |
| Standard Sensing Object | Non-Metal |
| Response Frequency | 600HZ |
| Hysteresis | Less than 10% of sensing distance |
| Detection Method | NPN NO |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 10mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.0VDC |
| Leakage Current | Less than 0.01mA( No Load) |
| Protection Degree | IP66 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | diameter 3*2M/-3wires , -4wires,-2wires |
*** Please note that all the sensors can pre-wired with 2 meter cables***
***Sensor with M8 quick disconnecting can be customized***

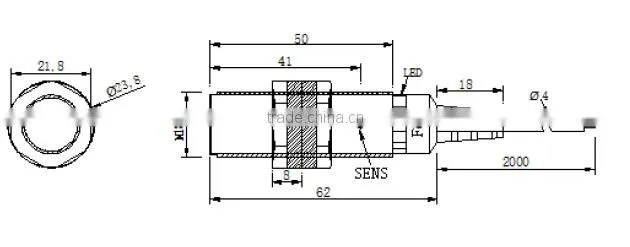

Dimension Drawing
Wiring Drawing
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading and professional sensor supplier in China.
Our product has been sold to all over the world.Its products cover 14 series and 3000 specification.
Our main product include Fiber Optic Sensor, Fiber optic lens, Fiber optic Lens,
Proximity Sensor, Photoelectric sensor,Label Sensor, Light Curtain, Laser Alignment,
Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply,Solid State Relay.
F&C SensingTechnology has been making continuous breakthrough in new technology and new application. Our target is “What you need can be found in F&C Sensing Technology”
