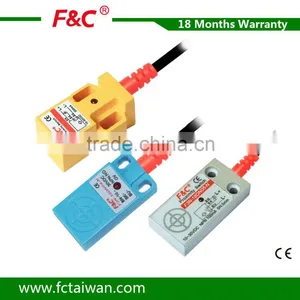

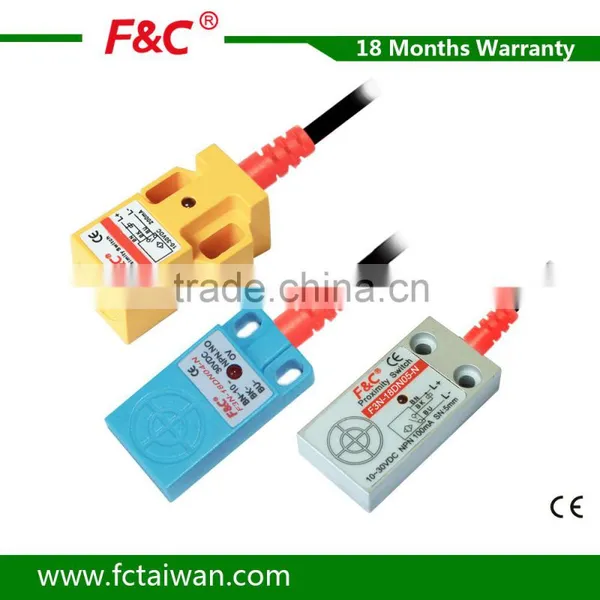

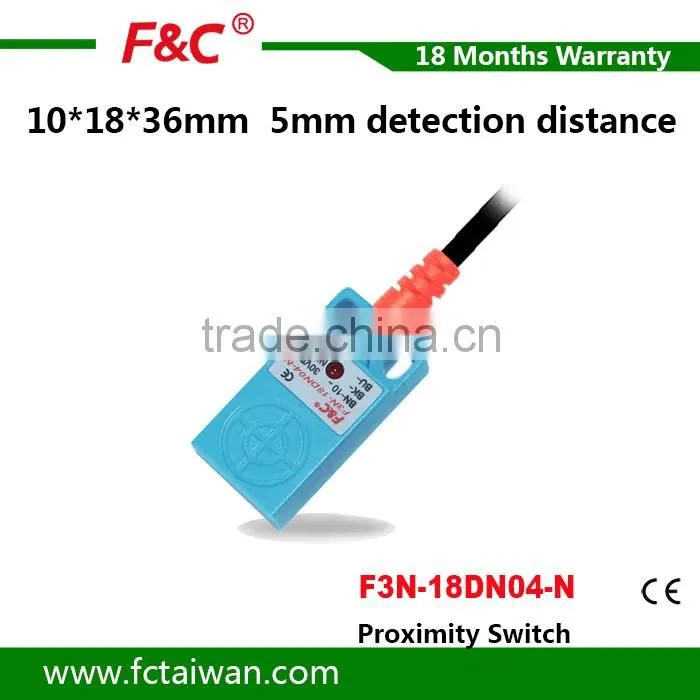

Feature for 10*18*36mm rectangular proximity sensors
1.Stable performance, reverse polarity protection and short circuit protection
2.10-30VDC build-in amplifier, direct output
3.Clear LED indicator
4.200 mA triode output , high responsing speed can reach 0.1ms
5.5V proximity and different frequency proximity switch sensor can be customized
6.5mm,6mm,8mm and other special detection distance can be customized
Specification for Inductive Proximity Sensor Switch
| Output Method | Top Induction | |
| NPN NO | F3N-18DN04-N R2M | |
| NPN NC | F3N-18DN04-N2 R2M | |
| PNP NO | F3N-18DN04-P R2M | |
| PNP NC | F3N-18DN04-P2 R2M | |
| Detection Distance | 4mm | |
| Standard Detection Object | 18×18×1(iron) | |
| Response Frequency | 600HZ (Different Frequency can be customized) | |
| Hysteresis | within 10% of sensing distance | |
| Operating Voltage | 10-30V DC | |
| Current Consumption | Less than 8mA (No Load) | |
| Load Current | 100mA Max@30V DC | |
| Leakage Current | 1.1mA (No Load) | |
| Residual Voltage | Less than 1.0V DC (No Load) | |
| Protection circuit | Reverse circuit protection short circuit protection | |
| Operating Temperature | -25~70℃ | |
| Protection Degree | IP67 | |
| Material | ABS | |
| Wire Method | dia 4*2M/3 wires | |

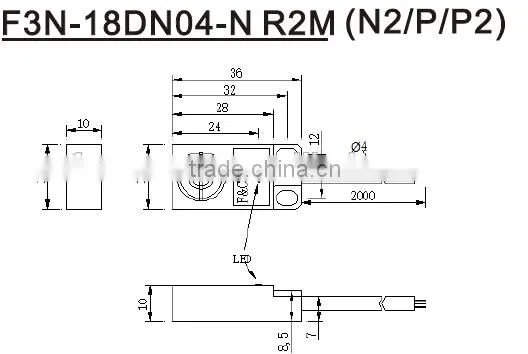

Dimension Drawing
Our Services
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Packaging & Shipping
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
Company Information
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to allover the world.Its products cover 14 series and 300 specification. Our main product include Fiber Optic Sensor, Fiber Tube, Fiber Focus Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”
Note
-------------------------------------------------------------------------------------
1. Customize for cable length, housing material and shape.
2. The above information is only reference.
3. Any question, just feel free to let me know.
I can be reached by Wechat:86-13809275350 and Skype:lynn_liu123.
