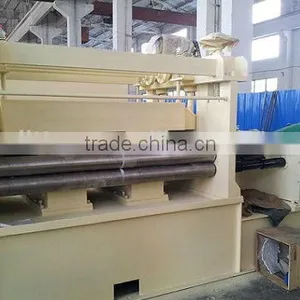

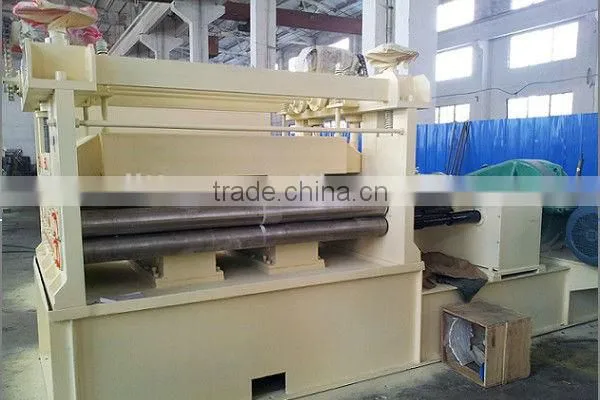

Help Center6x1600 Fourfold-roller Leveling /flattening Machine
Related Products
-
JP 3x1000 Metal Coil Straightening MachineUS$ 20,000 - 80,000MOQ: 1 Set -
Metal Sheet Leveling MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Auto Metal Sheet Straightening MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Thin Steel Uncoiler-straightening-cut to Length LineUS$ 110,000 - 150,000MOQ: 1 Set
-
JPX-12X2000 Middle Plate Uncoil Cut to Length Line Leveling LineUS$ 100,000 - 160,000MOQ: 1 Set
Specifications
1.fourfold-roller--------high accuracy2. electric control-----convenient and east to operate
3.customize
All our machines are customized, so they are quite differnent. Below is one sample leveler .
Technical parameters
1.Specification of processable material: thickness δ=3-6 mm width B≤1600mm
2.Application : various steel plate include ASTM/ Q195/Q235/Q352
3.Tensile strength: δb≤450MPa
4.Leveling rollers : 150(diameter)×1600(width) Material GCr15(HRC59°~61°)
5.No.of leveling rollers : 13.
6.It is equipped with multiple groups of upper and lower supporting rollers.
7.Press model the working rollers use two 2.2kw electric machines through turbine decelerator to adjust the upper and lower gap to make sure the even quality.
8.Transmission model 13 leveling rollers work together in which 2 are pinch rollers and 11 are leveling rollers.
9.Gear distribution model decelerator and distribution of two stage drive can make the gear distribution have a long life-span.
10.Drive model all the independent rollers and gear box are driven by 55kw direct-current electric machine, and decelerator by 650 decelerator, and consists of gear distribution box and all-round shaft connection and hydraulic brake. Etc.
11.The assemblies of leveling rollers with circulating oil lubrication and oil box.

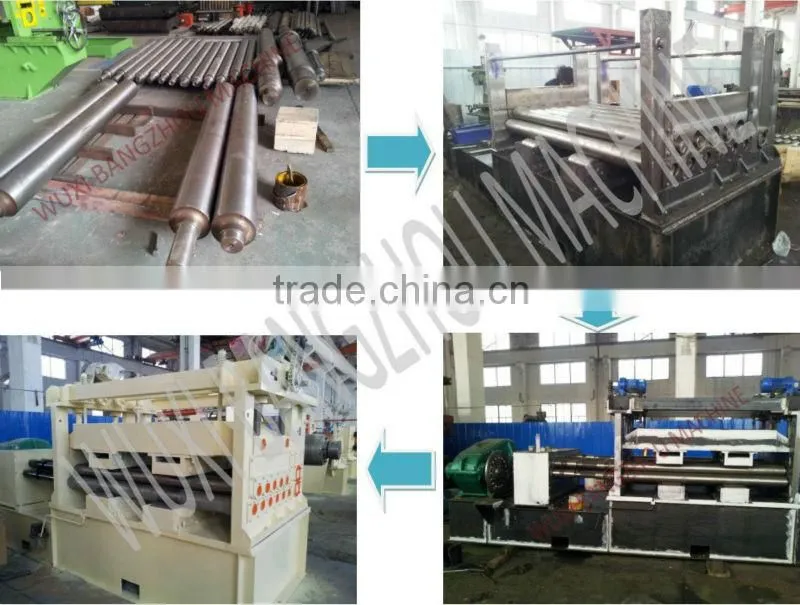

12.The process of rollers: raw material- conditioning- roughing- hardening -finishing.
13.Line speed v=5~20m/min
14.Decelerator distribution box are designed
15.The machine is equipped with electric control box.
