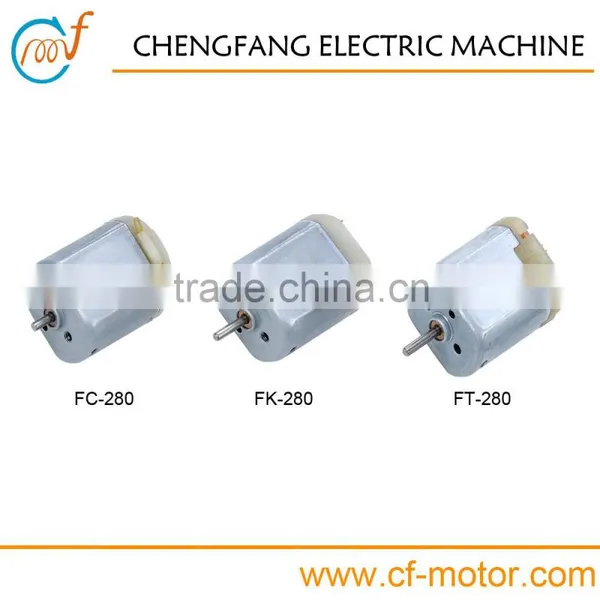

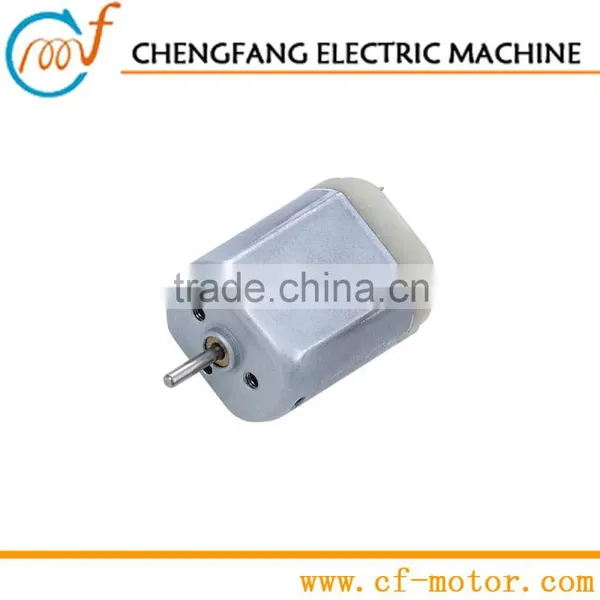

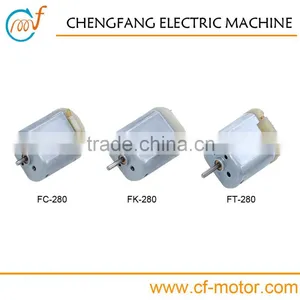

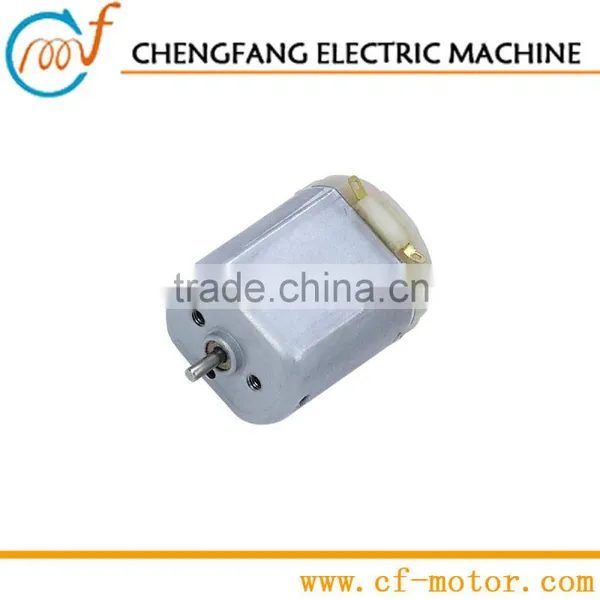

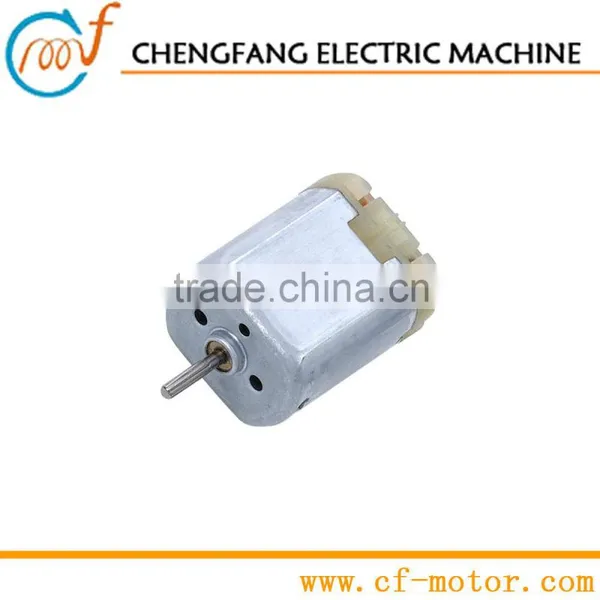

Flat 12 Volt dc Motor for Door Lock FT-280, FC-280, FK-280

Flat 12 Volt dc Motor for Door Lock FT-280, FC-280, FK-280 thumbnail-1
Flat 12 Volt dc Motor for Door Lock FT-280, FC-280, FK-280 thumbnail-2
Flat 12 Volt dc Motor for Door Lock FT-280, FC-280, FK-280 thumbnail-3
Flat 12 Volt dc Motor for Door Lock FT-280, FC-280, FK-280 thumbnail-4
Flat 12 Volt dc Motor for Door Lock FT-280, FC-280, FK-280 photo-1
Flat 12 Volt dc Motor for Door Lock FT-280, FC-280, FK-280 photo-2
Flat 12 Volt dc Motor for Door Lock FT-280, FC-280, FK-280 photo-3
Flat 12 Volt dc Motor for Door Lock FT-280, FC-280, FK-280 photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chengfang Motor
Model Number:
FC-280, FT-280, FK-280
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Chengfang Motor
Model Number FC-280, FT-280, FK-280
Usage Car, Other, Car, door lock actuator
Certification ROHS, UL, Other, ROHS, UL, ISO/TS 16949:2009
Type Micro Motor
Torque Requests
Construction Permanent Magnet
Commutation Brush
Speed(RPM) Variable Speed
Continuous Current(A) TBD
Output Power TBD
Voltage(V) 12V
Efficiency Other, 60%-85%
Performance data

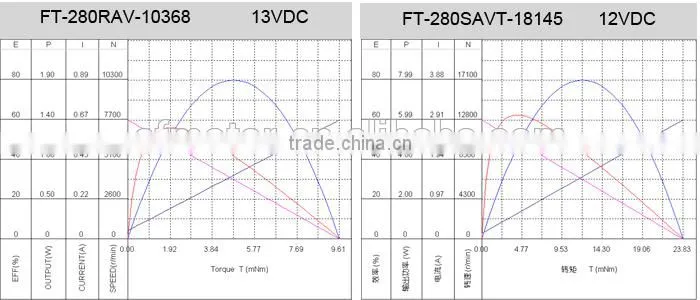

 1. FT-280A

Model No. Main Performance
Rated Voltage No Load At Maximum Efficiency At Stall
Speed Current Speed Current Torque Output Eff. Current Torque
V r/min A r/min A mNm W % A mNm
FT-280RAV-10368 13 7,700 0.05 6,096 0.18 2 1.28 55.9 0.67 9.61
FT-280SAVT-18145 12 12,800 0.13 10,566 0.12 4.16 4.6 62.4 2.91 23.83
FT-280SA-15250B 15 9,000 0.06 7,579 0.32 4 3.2 66.9 1.7 25.5
FT-280SAV-11392B 24 9,000 0.03 7,714 0.18 3.7 2.97 68.8 1.08 25.69
FT-280SA-19170 12 10,600 0.09 8,963 0.49 4.2 3.94 66.6 2.7 27.17
FT-280SA-19165 12 10,900 0.09 9,303 0.53 4.5 4.34 69.9 3.06 30.4



flat 12 volt dc motor for door lock FT-280, FC-280, FK-280

flat 12 volt dc motor for door lock FT-280, FC-280, FK-280

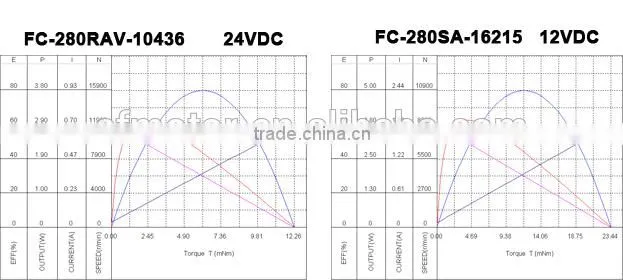

 2. FC-280A

Model No. Main Performance
Rated Voltage No Load At Maximum Efficiency At Stall
Speed Current Speed Current Torque Output Eff. Current Torque
FC-280RAV-10436 24 11,900 0.035 9,717 0.16 2.2 2.29 60.8 0.70 12.26
FC-280SA-16215 12 8,200 0.08 6,780 0.38 4.1 2.88 62.7 1.83 23.44
FC-280SA-23100 12 18,000 0.18 15,514 1.12 5.8 9.35 69.4 7.00 41.67
FC-280SA-13300 12 6,000 0.048 4,937 0.22 3.1 1.62 60.8 1.03 17.65
FC-280SA-18153 24 23,600 0.13 19,661 0.65 4.9 10.01 64.3 3.24 29.13



flat 12 volt dc motor for door lock FT-280, FC-280, FK-280

flat 12 volt dc motor for door lock FT-280, FC-280, FK-280

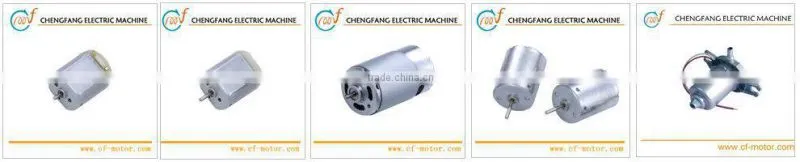

Automotive Motor
Model Dimensions Output Typical Applications
FT-140A φ20.4X25LX15.4ThkXshaft OD2.0mm 8-2.0W Rearview Mirror, Headlight Adjuster

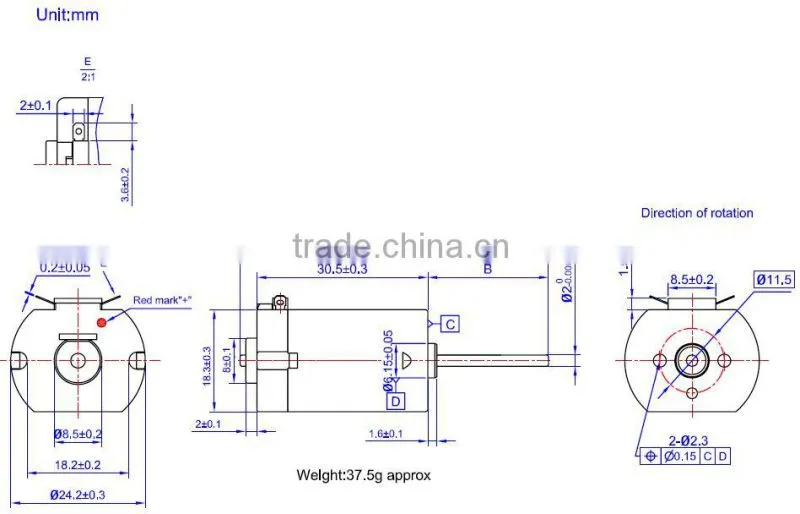

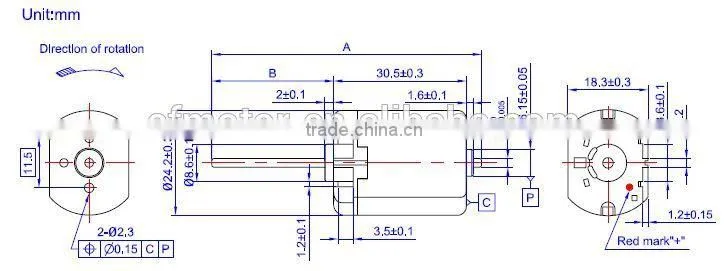

FT-280A φ24X30.5LX18.3ThkXshaft OD2.0mm 3.8-6.0W Door Lock Actuator
RF-370CH φ24.4X30.8LXshaft OD2.0mm 0.2-1.1W Damper Actuator
RS-555H φ36X57LXshaft OD3.175mm 10-20W Electric Throttle Control (ETC)
RS-555VH φ36X57LXshaft OD3.175mm 26-45W Electric Parking Brake (EPB)
RS-558V φ36X57LXshaft OD3.175mm 10-20W Electric Throttle Control (ETC)
RS-9812H φ52Xshaft OD6.0mm 38-60W Braking Vacuum Pump



* Click the model no. to check the motor dimensions and performance in details.



flat 12 volt dc motor for door lock FT-280, FC-280, FK-280

flat 12 volt dc motor for door lock FT-280, FC-280, FK-280

Certifications

flat 12 volt dc motor for door lock FT-280, FC-280, FK-280

Facotry Show

flat 12 volt dc motor for door lock FT-280, FC-280, FK-280
