Home > Electrical & Electronics > Electric Motor > DC Motor > Side Mirror Motor,mirror Adjust Motor,auto Mirror Motor

Side Mirror Motor,mirror Adjust Motor,auto Mirror Motor

Name: Side Mirror Motor,mirror Adjust Motor,auto Mirror Motor
Brand: CF Motor, Chengfang
SKU: 126940895

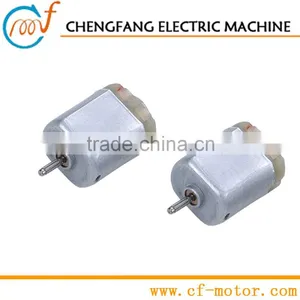

Side Mirror Motor,mirror Adjust Motor,auto Mirror Motor thumbnail-1

Side Mirror Motor,mirror Adjust Motor,auto Mirror Motor photo-1

Negotiable MOQ: 40 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CF Motor, Chengfang

Usage:

Fan

Contact Supplier Request Quote Chat Now

Shenzhen Chengfang Electric Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CF Motor, Chengfang

Usage Fan

Certification UL

Type Gear Motor

Construction Permanent Magnet

Commutation Brush

Model Number FT-140A

The models we list below are part of our existing designs.

We offer specific motor design for every customer.

Model No.	FT-140SA-10340
Rated voltage	11.2VDC
No Load	Speed(RPM)	7250
No Load	Current(A)	0.06
At Max Efficiency	Speed(RPM)	5479
	Current(A)	0.19
	Torque(mNm)	2.2
	Output(W)	1.24
	Eff.(%)	68.4
At stall	Torque(mNm)	539.4
At stall	Current(A)	38

Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz

Side mirror actuator motor
Dimension: dia. 20.4 x 15.4 Thk. x 25 L. shaft O.D. 2.0 mm
Basic Structure: SECD housing / Plastic end cap / Female Terminal
Application: Side Mirror
Weight: Approx. 20g

Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire

·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
