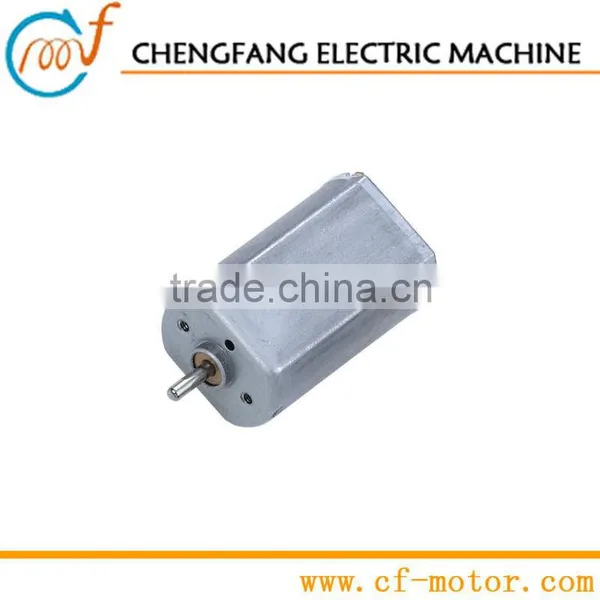

6v Small dc Electric Motor Used for Printer, Hair Drier Motor FK-180H

6v Small dc Electric Motor Used for Printer, Hair Drier Motor FK-180H thumbnail-1
6v Small dc Electric Motor Used for Printer, Hair Drier Motor FK-180H photo-1
Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Use:
Electrical Toys
Place of Origin:
Guangdong, China
Brand Name:
CF Motor, Chengfang
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use Electrical Toys
Place of Origin Guangdong, China
Brand Name CF Motor, Chengfang
Model Number FK-180, FK-180PH / 180SH

The models we list below are part of our existing designs. We offer specific motor design for every customer.



Model No. FK-180SHV-14185
Rated voltage 6.0VDC
No Load Speed(RPM) 5000
Current(A) 0.06
At Max Efficiency Speed(RPM) 3919
Current(A) 0.22
Torque(mNm) 2.12
Output(W) 0.87
Eff.(%) 66.5
At stall Torque(mNm) 9.8
Current(A) 0.8



Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz



6v small dc electric motor used for printer, hair drier motor FK-180H

  • Aeromodelling DC motor
  • Remote control plane DC motor

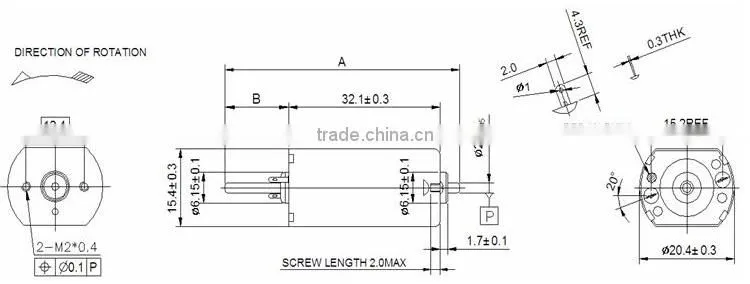

  • Dimension: dia. 20.4 x 15.4 Thk. x 32.1 L. shaft O.D. 2.0 mm
  • Basic Structure:  SECD housing / SECC end cap
  • Application: Aeromodelling/Toy racing car/Remote control plane motor
  • Weight: Approx. 33g








Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire







·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets





6v small dc electric motor used for printer, hair drier motor FK-180H
