Specifications
Hand dryer motorWeight: Approx.55g
Application: Massager/Toys/Hair Dryer/Hand Dryer
dia*L27.7*32.6mm

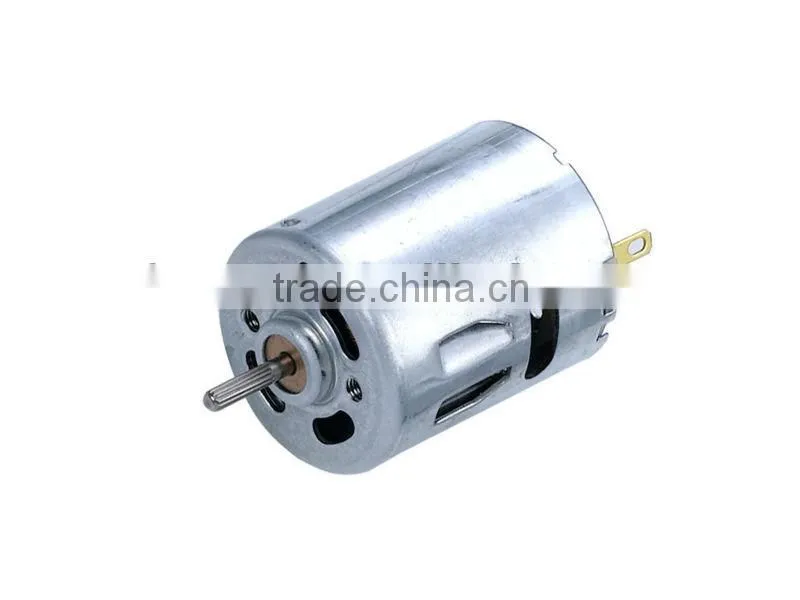

DC Motor with 24v low rmp motor,used for toys motor,water pump motor
Hand dryer motor
Weight: Approx.55g
Application: Massager/Toys/Hair Dryer/Hand Dryer
dia*L27.7*32.6mm
The models we list below are part of our existing designs.
We offer specific motor design for every customer.
RS-365H
| Model No. | RS-365PHV-14130R | RS-365PHVC-09280L | ||
| Rated voltage | 12VDC | 24v dc | ||
| No Load | Speed(r/min) | 6200 | Speed(RPM) | 5500 |
| Current(A) | 0.09 | Current(A) | 0.05 | |
| At Max Efficiency | Speed(r/min) | 4896 | Speed(RPM) | 4270 |
| Current(A) | 0.34 | Current(A) | 0.17 | |
| Torque(mNm) | 4.95 | Torque(mNm) | 4.2 | |
| Output(W) | 2.54 | Output(W) | 1.86 | |
| Eff.(%) | 62.6 | Eff.(%) | 44.8 | |
| At stall | Current(A) | 1.3 | Torque(mNm) | 18.6 |
| Torque(mNm) | 23.5 | Current(A) | 0.6 | |
Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz
- Hand dryer motor

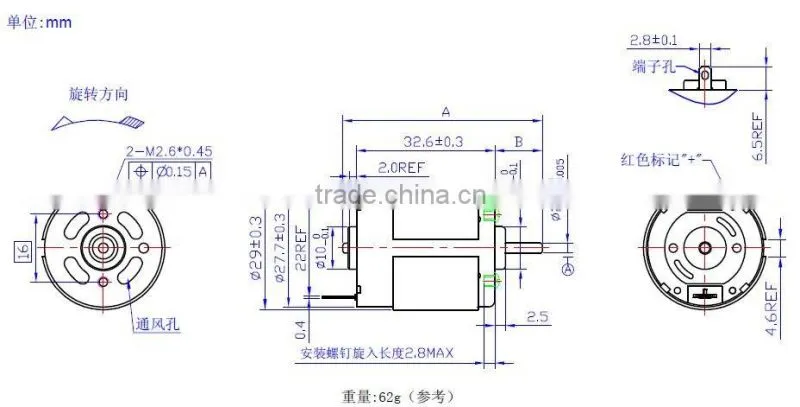

- Dimension: φ 27.7 x 32.6 L. shaft O.D. 2.3 mm
- Basic Structure: SECD housing / SECC end cap
- Application: Massager/Toys/Hair Dryer/Hand Dryer
- Weight: Approx. 55g
Basic Structure of Chengfang Motors |
Customized Options |
|
·2-pole stator
|
·Leadwires with connector / pins |
