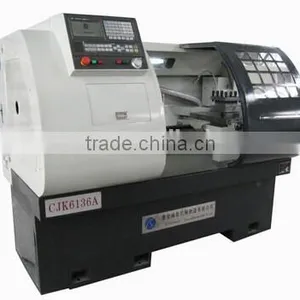

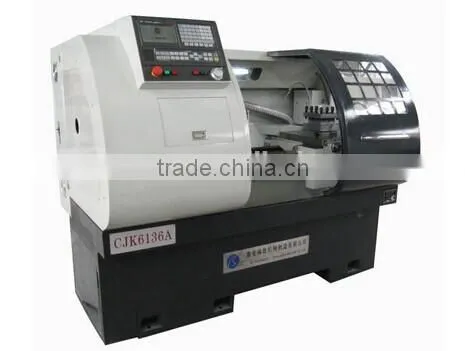

2016, CJK6136A--CNC LATHE FROFESSONAL

Name: 2016, CJK6136A--CNC LATHE FROFESSONAL
Brand: HAISHU
SKU: 128457601

US$ 10,000 - 30,000 MOQ: 1 Set

Key Specifications

CNC Machining or Not:

CNC Machining

Type:

Milling, Rapid Prototyping, Wire EDM

Material Capabilities:

Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, Other

Taian Haishu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

CNC Machining or Not CNC Machining

Type Milling, Rapid Prototyping, Wire EDM

Material Capabilities Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, Other

Micro Machining or Not Not Micro Machining

Place of Origin Shandong, China

Model Number CJK6136A

Brand Name HAISHU

Standard configuration:

1) CNC system: GSK928,

2) Manual chuck ,

3)Manual tailstock,

4)Vertical four-station electric turret,

5)Automatic lubrication system,

6) Turning the cooling system.

Select configure

1) CNC system: GSK980, KND, Siemens, Fanuc, etc.,

2) Horizontal six-station turret, eight-station turret, tool row.

Item	Unit	Technical parameters
		CK6136L/CK6140L	CJK6136A/CJK6140A
Max. rotation diameter over bed	mm	φ400/φ420
Max. rotation diameter over pallet	mm	φ210/φ220
Max. workpiece length	mm	750
Bed foot structure		Overall bed foot
Bed width	mm	335
Main transmission form		Independent spindle		Six gears
Spindle Lubrication		Mechanical oil lubrication
Spindle speed mode		Frequency stepless speed		Frequency stepless speed in gears
Spindle speed range	r/min	200~2500		25~1600
Spindle head form		6-A2
Spindle bore	mm	φ52
Spindle hole outside taper		MT6
Chuck diameter	mm	φ200/φ250
Main motor power	kw	5.5
Turret maximum stroke	mm	X:260 Z:750
Fast-moving feed	mm/min	X:6000 Z:8000
Repeat positioning accuracy	mm	X:0.01 Z:0.015
Workpiece accuracy		IT6-IT7
Workpiece surface roughness		Ra1.6
Dia. of tailstock quill	mm	φ60
Tailstock quill stroke	mm	120
Taper of tailstock quill	mm	MT4
Repeat positioning accuracy	mm	0.008
Section of turning tool	mm	20×20/25×25
Size(L×W×H)	mm	2050×1250×1600
Net weight	kg	2000
