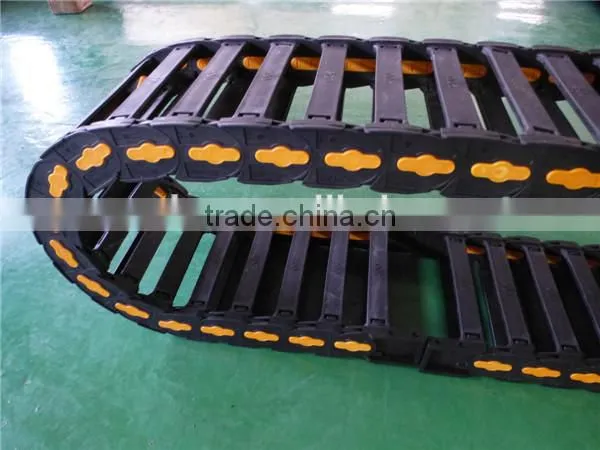

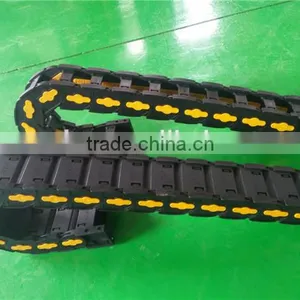

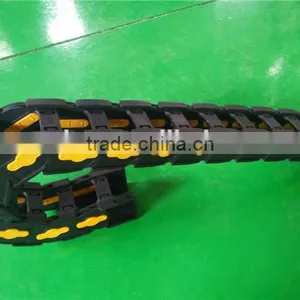

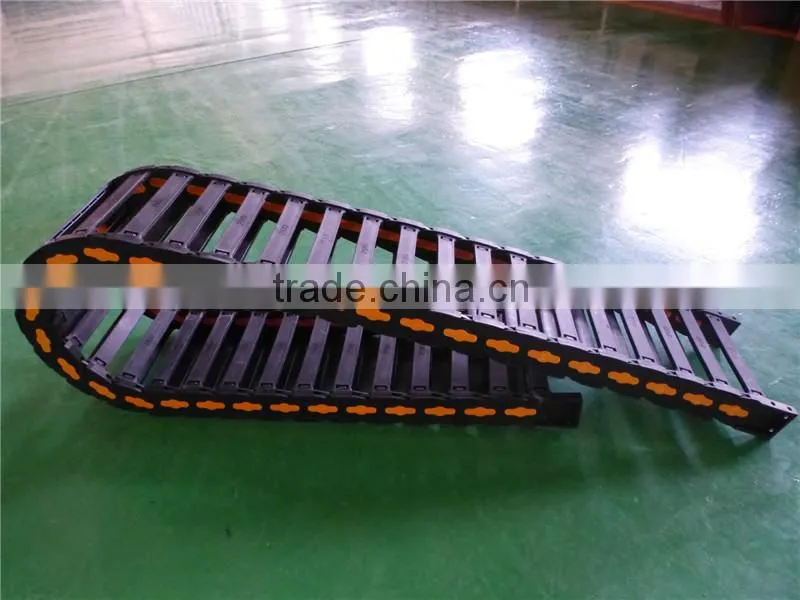

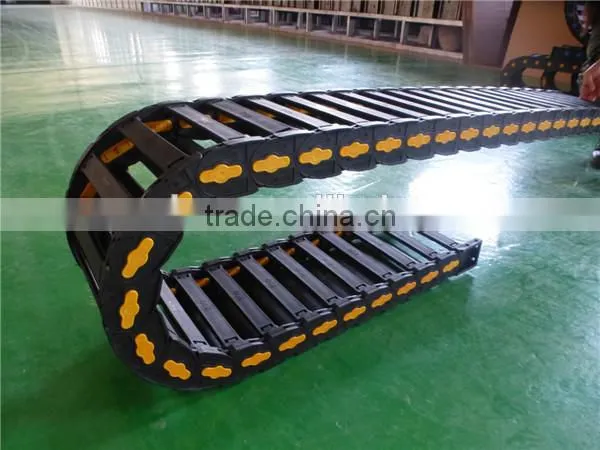

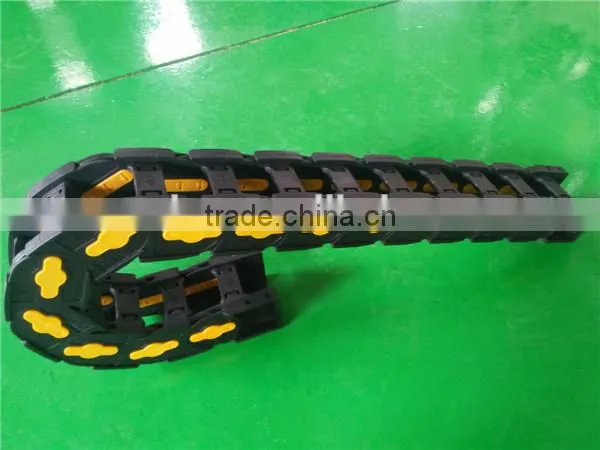

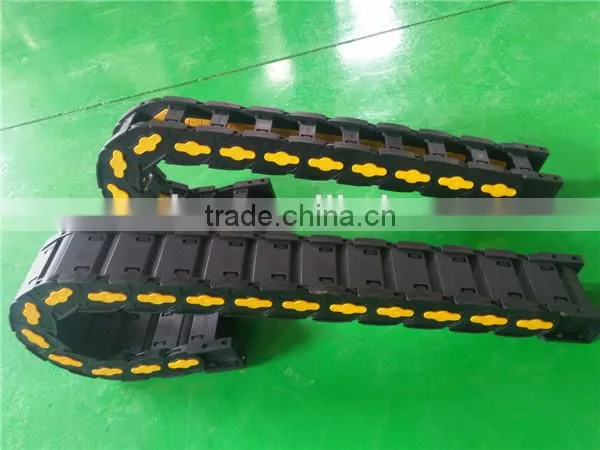

Free sample RUIAO TLC series plastic cnc cable carrier chain china supplier
| Type | Outside size | Bending radius | Pitch | |
| TLC35*50 | 64*85 |
75/100/125/150/ 175/200 |
62 |
bridge or enclosed |
| TLC35*60 | 64*95 | |||
| TLC35*75 | 94*110 | |||
| TLC35*100 | 64*135 | |||
| TLC35*125 | 64*160 | |||
| TLC35*150 | 64*185 | |||
| TLC35*175 | 64*210 | |||
| TLC35*200 | 64*235 |
| Type | Outside size | Bending radius | Pitch | |
| TLC45*50 | 77*90 |
75/100/125/150/ 175/200 |
74 |
bridge or enclosed |
| TLC45*60 | 77*100 | |||
| TEZ45*75 | 77*115 | |||
| TLC45*100 | 77*140 | |||
| TLC45*125 | 77*165 | |||
| TLC45*150 | 77*190 | |||
| TLC45*175 | 77*215 | |||
| TLC45*200 | 77*240 |
Guide for type selection of RUIAO cnc cable carrier
1.Material: steel cable carrier, stainless steel cable carrier, nylon cable carrier.
2.Function: single row type, compound rows type, enclosed type,anti-noise type, S-type
3.Environment:oil/rain/salt/humidity/rubbish/high-TEMP/low-TEMP/load-bearing/long travel range/low noise~
4.Assembly: Unitary type,bridge type, semi enclosed type,total enclosed type.
5.RUIAO size: TP/TEZ/TLZ/TLJ/TLC/TL/TLG/JR-2/DGT
Brief introduction of RUIAO cable carrier
1. The cable chain is assembled by single unit, each unit can be disassembled easily by the flat screwdriver, welcome ask us for installation video!
2. For the same series,
they have the same'height'and pitch, while the width and bending radius can be difference,
you can choose the most suitable one according to our parameter list below,
or ask us to help you choose the right one at any time~
3. Above TEZ35*50 size,in order to manage your moving wires and tubes,you can add separators.
4. When the length of the cable chain is more than 7meters per piece, pls add support roller or guide bridge
you can ask for any detail pictures about our products,these are some normal ones.
your wise choice of RUIAO,more than200 kinds of types can be offered,thank you for choosing,here,you can get any machine tools within 24hours,just believe me~
located at this booming industial estate,we have the advantage to massive manufacture ,welcome to visit our plant, RUIAO is just here waiting for you~
