Help CenterAluminum Smallest Load Cell
Related Products

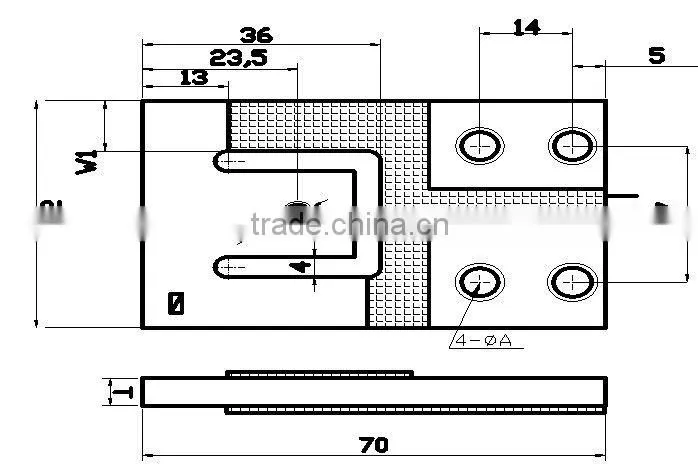

Cap. |
S |
Dia.A |
W1 |
W2 |
30 |
1.5 |
5.1 |
7.5 |
39 |
75 |
1.5 |
6.1 |
10 |
45 |
150 |
2.0 |
6.1 |
10 |
45 |
300 |
2.0 |
6.1 |
10 |
45 |
Product Characteristics:
Aluminum Load Cell AM90A Colorless anodized; Hermetically sealed with glue to IP65. The Aluminum Load Cell is a low profile single point load cell designed for direct mounting of low cost weighing platforms. Its small physical size, combined with high accuracy and low cost, makes this load cell ideally suited for floor scale ,electronic floor scale, low profile floor scale ,digital floor scale, floor weighing scale, floor balance scale, frameless floor, frame type floor scale, explosion-proof floor scale, moveable floor scale, bench scale, cattle scales, pit scale, track scale, digital platform balances, digital weight balance,digital scale balance,digital precision balance,digital counting balance,digital electronic balance,digital body balance, platform balances, platform scale, baby scale,electronic counting scales.
Technical Parameter:
Capacity: |
30Kg~75Kg, 150Kg~300Kg |
Outline Size: |
W2×T×70 |
Rated Output: |
1.5mv/V±20%(30Kg~75Kg);2.0mv/V±20%(150Kg~300Kg) |
Zero Balance: |
±0.1mv/V |
Non-Linearity: |
±0.5%of R.O |
Hysteresis, Non-Repeatability: |
±0.05%R.O. |
Creep(30 Minute): |
±0.05%R.O. |
Temp. Compensated For Output: |
±0.05%R.O. |
Temp. Compensated For Zero: |
±2%R.O. |
Input Resistance: |
1130±20Ω |
Output Resistance: |
1000±10Ω |
Insulation Resistance: |
≥5000MΩ |
Temperature Compensated: |
-10to+40°C |
Operating Temperature Range: |
-20to+60°C |
Excitation, Recommended: |
10VDC |
Safe Overload: |
150%.R.C |
Cable, And Length: |
4 Coreφ0.8×70cm |
