3leds Addressable Ws2801 50mm Led Pixel

3leds Addressable Ws2801 50mm Led Pixel thumbnail-1
3leds Addressable Ws2801 50mm Led Pixel thumbnail-2
3leds Addressable Ws2801 50mm Led Pixel photo-1
3leds Addressable Ws2801 50mm Led Pixel photo-2
US$ 0.5 - 0.99 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar 5050
Input Voltage(V):
DC12V
Lamp Power:
0.72
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 5050
Input Voltage(V) DC12V
Lamp Power 0.72
Lamp Luminous Flux(lm) 100
Lamp Luminous Efficiency(lm/w) 60
Color Temperature(CCT) Other, addressable
Working Temperature(℃) -30, +40
Working Lifetime(Hour) 50000
Lamp Body Material PVC
IP Rating IP65
Certification CE
Emitting Color Other, addressable
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number P503V12

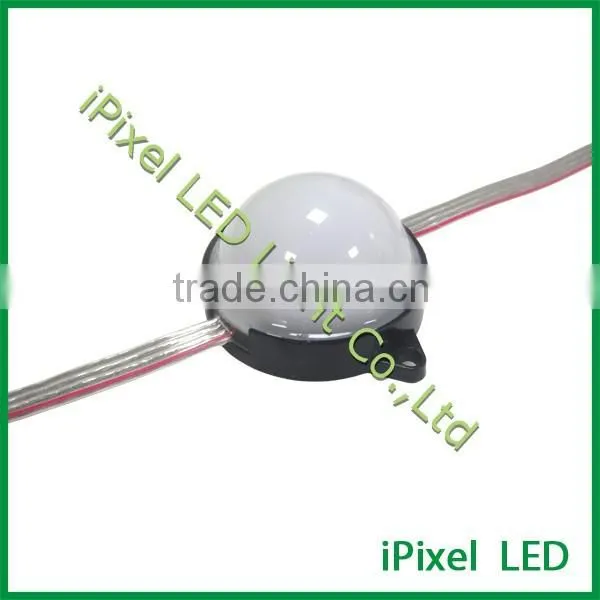

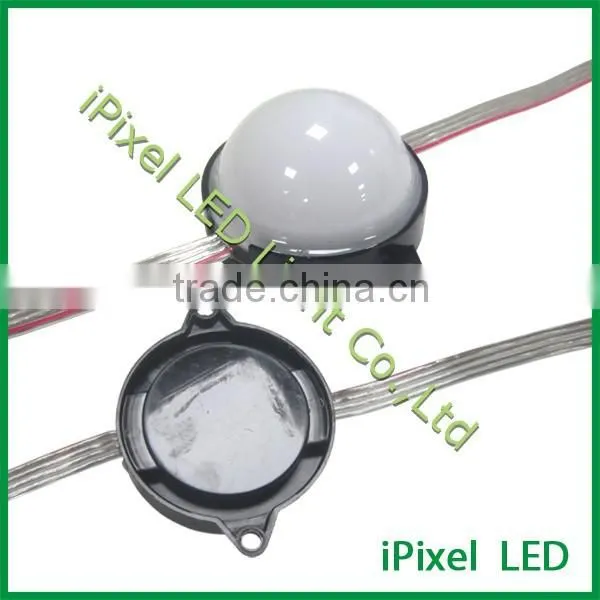

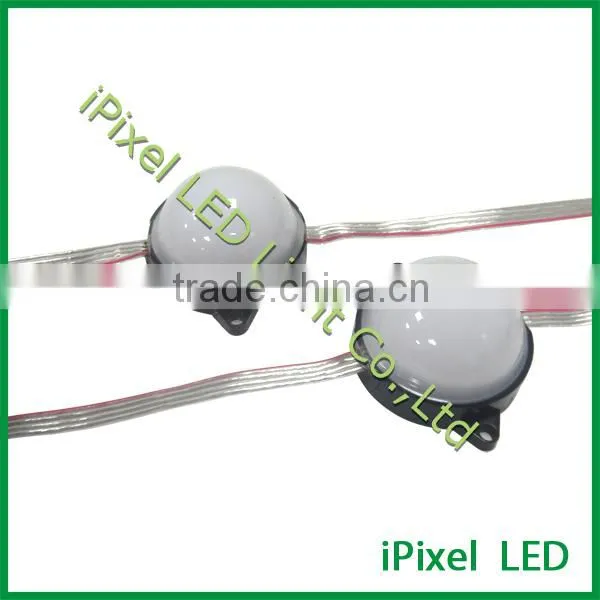

3leds addressable ws2801 50mm led pixel



DESCRIPTION:

1. Individually control, 1PCS LED pixel & 1IC (ws2801)

2. 50mm diameter with white opaque diffuser giving 140 degree viewing, pitch customized.

3. You must use a 12V DC power supply to power this pixel, do not use higher than 13V

     or you can destroy the entire pixel.

4.  SPI signal is in parallel connection, avoiding all lights influenced by the failure of one light in serial connection

5. Connetors: 4PIN waterproof female and male connectors, DAT, CLK, DC12V+, GND-

6. addressable lights you can set to any color, or animate

7. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.

8. Brand: iPixel LED





SPECIFICATION:

Product Name 50mm led pixel
Product No. P503V12
LED Chip  Epistar SMD 5050 RGB LED chip
IC Chip WS2801
Input Voltage DC12V
Watts 0.72W/PCS
Cover Color Milky white cover
Connectors 4PIN waterproof female and male connectors
Beam angle 140
Certification CE, RoHS
LED Qty 3LEDs/pcs
Cable Length 10cm usually, also can be customized







PICTURES:

3leds addressable ws2801 50mm led pixel3leds addressable ws2801 50mm led pixel3leds addressable ws2801 50mm led pixel

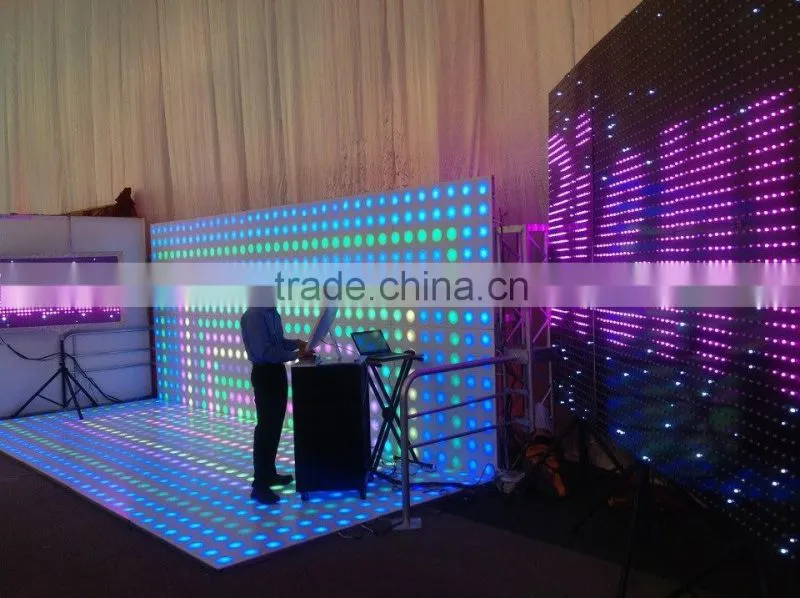

Showing pictures:



3leds addressable ws2801 50mm led pixel3leds addressable ws2801 50mm led pixel3leds addressable ws2801 50mm led pixel





CONNECTION WAY:

SPI signal: LED Pixels+LED power supply +LED controller

DMX control: LED Pixels+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...

(offline control/ PC online control)

LED power suppply: Meanwell power supply, T- series, A- series power supply...

(waterproof / non-waterproof)

3leds addressable ws2801 50mm led pixel

3leds addressable ws2801 50mm led pixel

PACKING:

20pcs/String, 40pcs/Bag, 200pcs/Carton
13KG/Carton(volume weight)
Carton Size: 46cmx26cmx46cm



TRADE TERMS:

1. Payment Terms:

T/T, Western Union, Ali Excrow(Credit Card, Debit Card, Bank Transfer)

2. Lead Time:

Usually we had materials in stock, regular order delivery time 1--7days after the order(PI) paid,

Customized products 8--15days(Custom PCB).

3.Warranty:

2 years warranty since the data of purchase our LED products.

4. Delivery Ways:

DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc.





FAQ:

1. What are the advantages of iPixel LED and its items?

A. iPixel LED is one of professional Pixel LED light manufactures.

B. We keep focus on the LED with IC which could change the color, we don't produce any spot light, pane

   or bube....

C. We already had worlfd wide customers and most of them located in Euro and North America and Mexico

D. We had 5 years experience with the pixel LED and a sales team



2. Could you  provide the OEM or ODM service?

We had rich experience in OEM or ODM service according to customer demad to design and delelop

the products. Actually, 90% of our item are customized.

Pease visit our website to view the DIY products.



3. Can you design a animation before we do business ?

 We have a animation and program designer in company, even if we dont had business before,

 we will be happy to do a animation design or program file for you and it will be free.

 It's a part of business to help someone built something.



4. Do all items produced by your company?

90% our products are make production in our workshop by ourselfs.

We sorcing the different controllers, LED power supply etc from supplier.




OUR COMPANY:

iPixel LED was born on 2010 when Mr Kevin Con entry LED Pixel light industry,

We found 90% of our customers request custom product based on our standard size like

change cable length, different PCB color or different IC etc. after then, iPixel LED came out in his mind.

We're a manufacture which focus on different pixel LEDs, mainly products are

round shape pixel, flexible pixel strips, rigid pixel bar, pixel led modules.

The main markets in North America , Mexico and whole Europ

We're not a huge company, but our strength is accept custom products and

we could turn quickly without big MOQ request.

Our Vision is to make the world colorful !

welcome your inquiry !
