Help CenterMagnetic Drill JC23B-2
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Yang Zhou Golden
Model Number:
JC23B-2
Drill Type:
Magnetic Drill
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
Yang Zhou Golden
Model Number
JC23B-2
Drill Type
Magnetic Drill
Frequency
50Hz
Max. Drilling Diameter
23mm
Rated Input Power
1100W
Rated Voltage
240V
Weight
23 Kg

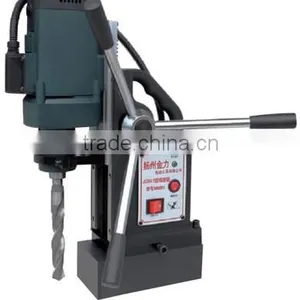

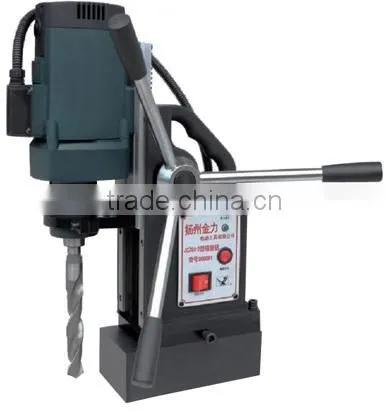

JC23B-2 Magnetic Drill
Characteristics:
Before using Magnetic Drill should be read using manual.
- When using magnetic drill, electric arc welding operation can not be performed on the same structural materials, in order to avoid a DC current through the solenoid return to the ground and cause personal injury.
- Handheld drill can also solve the low accuracy problems.
- The magnetic drill is a applied electric drill which attracts steel plate work piece by direct current magnetic chuck in drilling of electric tools.
- It is different from a drilling machines.
- This may reduce labour intensity and increase precision of a work piece than a electric drill.
| Model | JC23B-2 |
| Max. Diameter of drilling hole | Φ23mm |
| Attraction of magnet | 13000N |
| Travel of slide plate | 180mm |
| Horizontal diaplacement | 20mm |
| Voltage | 240V 50Hz |
| Rated speed | 350 rpm |
| Rated input | 1100W |
| Taper of spindle | 2# |
| Weight (KG) | 23 KG |
| Packing Size | 48cm*26cm*45cm |
