Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > Power Press Machine JB04-1, JB04-2

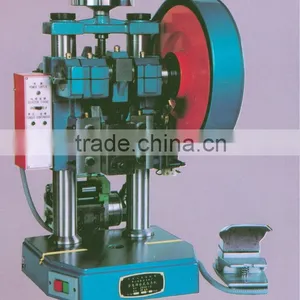

Power Press Machine JB04-1, JB04-2
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Power Source:
Mechanical
Brand Name:
Golden Tortoise
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Power Source
Mechanical
Brand Name
Golden Tortoise
Model Number
JB04-1
Power(W)
370W
Weight
88 Kg
Dimension(L*W*H)
480mm*320mm*540mm
Features:
- "Golden Tortoise" brand JB04 Series bench presses which are honored with the superior-quality by the Ministry of Machine-Building Industry.
- Due to compact structure and excellent performance it is widely used in timekepper, in strument, electronics, cameras, ornaments, hardware garment and footware industries etc.
- The bench press is capable of cutting, punching dividing, bending, riveting and forming material in sheets, strips and rolls.
- It is an ideal equipment performing automatic and precision punching.
| Model | JB04-1 | JB04-2 |
| Norminal pressure | 10kN | 20kN |
| Stroke of slide | 40mm | 40mm |
| Strokes per minute | 250spm | 220spm |
| Max. Shut Height | 150mm | 160mm |
| Slide adjustment | 150mm | 160mm |
| Diameter of steamhole | φ20mm | φ20mm |
| Bed dimensions | 270mm*270mm | 325mm*300mm |
| Motor Power | 370W | 370W |
| Overall Dimensions | 480mm*320mm*540mm | 530mm*240mm*615mm |
| Weight (KG) | 88 Kilogram (Kg) | 125 Kilogram (KG) |
