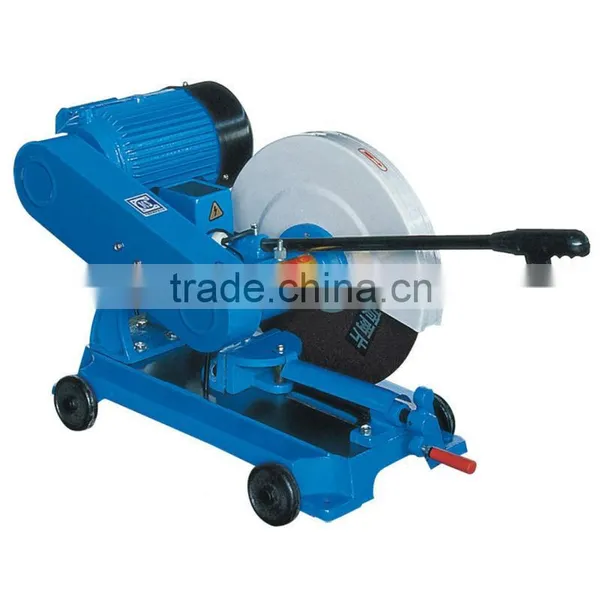

Electric Cut off Machine J3GE-400 (B)single Phase/three Phase
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
West Ling
Model Number:
J3GE-400 (B)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
West Ling
Model Number
J3GE-400 (B)
Voltage
240V or 415V
Rated Power
2.5 Kw or 3Kw
Weight
80 KG
Specifications
1. High speed and stable performance.2. High efficiency.
3. Cast Iron Body.
J3GE-400 (B) Cut off saw characteristics:
- Both the body and base use high quality cast iron, strong and everlasting.
- The handle can match for special switch, safety and reliable.
- There are wheels on base which can moving easily.
- Using bolts fasten the base enable working more reliable.
- Using high quality fiber strengthen grinding flat, safety and reliable.
| Model | J3GE-400 (B) |
| Motor (Kw) |
2.5 Kw / 3.5HP (single phase) 3 Kw / 4HP (three phase) |
| Spindle no-load speed (R/ min) | 2280 |
| Emery wheel no-load line speed (m/s) | 48 |
| Emery wheel safety line speed (m/s) | 60 |
| Fiber strengthen grinding flat (mm) | Φ400xΦ32x3.2 or Φ400xΦ25.4x3.2 |
| Cutting Ability (mm) ---Steel tube | Φ 135 x6 |
| Cutting Ability (mm) ---Angle iron | 100 x10 |
| Cutting Ability (mm) ---Channel steel | 126 x53 |
| Cutting Ability (mm) ---Round-bar steel | Φ50 |
| Tongs rotary angle (°) | ±45° |
| Dimensions of base (mm) | 650mm*340mm |
| G.W / N.W (KG) | 95 Kg / 80 Kg |
| Packing Dimensions (cm) |
80cm*46cm*59cm (single phase) 80cm*44cm*59cm (three phase) |
