R407c Scroll Compressors,copeland Scroll Compressor- Digital Scroll Compressor ZRD72KCE-TFD
US$ 200 - 2,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
United States
Brand Name:
Copeland
Model Number:
ZRD72KCE-TFD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10hp Digital Copeland Scroll Compressor ZRD125KCE-TFDUS$ 200 - 2,000MOQ: 1 Unit -
DWM Copeland Compressor All Models D3DS-150 X,D3DS-1500US$ 1,000 - 10,000MOQ: 1 Unit
-
DWM Copeland Piston Air Compressor D4DF-100 X,D4DF-1000 DCUS$ 1,000 - 10,000MOQ: 1 Unit
-
Refrigeration Compressor D4DA-100XUS$ 1,000 - 10,000MOQ: 1 Unit
-
20hp Dwm Copeland Compressor D4DA-2000US$ 1,000 - 10,000MOQ: 1 Unit
Place of Origin
United States
Brand Name
Copeland
Model Number
ZRD72KCE-TFD
Type
Refrigeration Compressor
Application
Refrigeration Parts
Certification
CE
Copeland Digital Scroll Compressor ZRD Series
1,Digital type
2,R407C
3,ZRD48KCE,ZRD61KCE,ZRD72KCE,ZRD81KCE,ZRD94KCE,ZRD125KCE
1,Digital type
2,R407C
3,ZRD48KCE,ZRD61KCE,ZRD72KCE,ZRD81KCE,ZRD94KCE,ZRD125KCE
Type: Hermetic scroll compressors - digital
Producer: Copeland
Series: ZRD
Model: ZRD72KCE-TFD
Technical data
| Nominal motor power [HP]: | 6 | |
| Displacement [m³/h]: | 20,6 | |
| Net Weight [kg]: | 40 | |
| Gross weight [kg]: | 44 | |
| Oil charge [dm³]: | 1,9 |
Electrical data
| Power supply [V/~/Hz]: | 380-420V/3/50Hz | |
| Locked rotor current [A]: | 35 | |
| Max. operating current [A]: | 6 | |
| Winding resistance [Ω]: | 5,35 |
Connections
| inches | |||
| Suction Rotolock valve connection: | - | ||
| Discharge Rotolock valve connection: | - | ||
| Suction connection with supplied sleeve: | 3/4" | ||
| Discharge connection with supplied sleeve: | 1/2" |
Standard equipment
- screwed sight glass
- Rotalock connections
- Schraeder connection
- assembly washer
- discharge temperature control
Optional equipment
- external crankcase heater (70W)
Application
- medium temperatures (from 7 ºC to -30 ºC)
- refrigerant R407C
Capacity : R407C

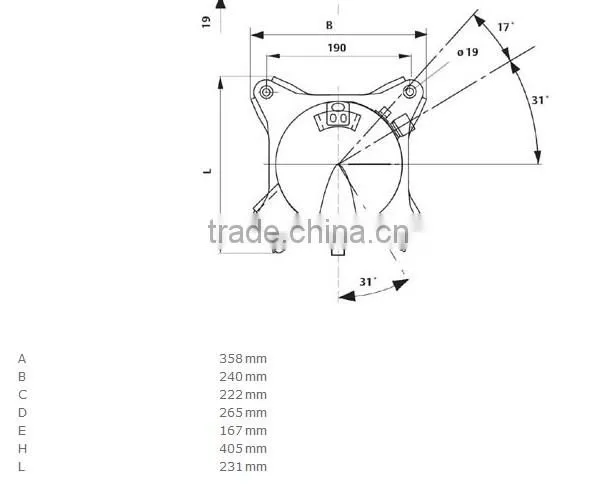

Drawing:
Pictures:
