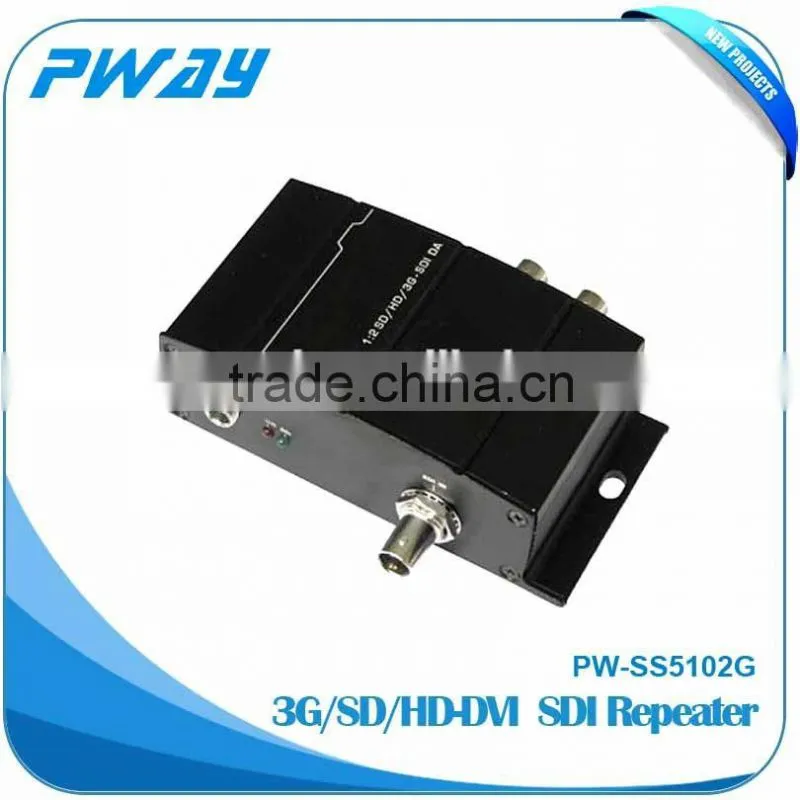

Pway 1x2 Black 3G-SDI, HD-SDI,SD-SDI Audio Signal Repeater

Name: Pway 1x2 Black 3G-SDI, HD-SDI,SD-SDI Audio Signal Repeater
Brand: Pway
SKU: 135022055

Pway 1x2 Black 3G-SDI, HD-SDI,SD-SDI Audio Signal Repeater thumbnail-1

Pway 1x2 Black 3G-SDI, HD-SDI,SD-SDI Audio Signal Repeater photo-1

US$ 90 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Pway

Model Number:

SS5102G

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen City Pin Wei Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Pway

Model Number SS5102G

Place of Origin Guangdong, China

Pway 1x2 Black 3G-SDI, HD-SDI,SD-SDI audio signal Repeater

Product Description

Feature

SDI Standard:3G-SDI, HD-SDI, SD-SDI
Data Rates: 270Mbps/1.485 Gbps/2.97Gbps
Signal Type: SMPTE 292M, SMPTE 259M,SMPTE424M
Two separately buffered outputs
Cable equalization (Beldon 1694A) retiming and signal
Re-clocking function capability – unlimited repeater connection
Dual color LED indication of nput locik and rate
Pass all ancillary data
5V~24V DC

Model	PW-SS5102G
Re-clocking Function	Yes
SDI Standards	3G-SDI, SD-SDI, HD-SDI
HD/SD-SDI Detection	Auto
Data Rates	270 / 1483 / 1485 /2970Mbps
Video Support	SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98/24Hz/25Hz/29.97Hz/30Hz/50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29.97Hz/30Hz 3G:1080p @ 50Hz / 59.94Hz / 60Hz
SDI Signal Type	SMPTE-292M, SMPTE-259M, SMPTE-424M
Output Impedance	75 ohms
Max. Distance	Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;3G-SDI 140m / 450ft
Audio Support	Yes
Input	1x BNC [SDI]
Output	2x BNC [SDI]
BNC Connector	75 ohms inter-locked socket
Power Consumption	2~4 Watts
Relative Humidity	20~90% RH (no condensation)
Dimension	9212036
Weight	160g

Instructions for use

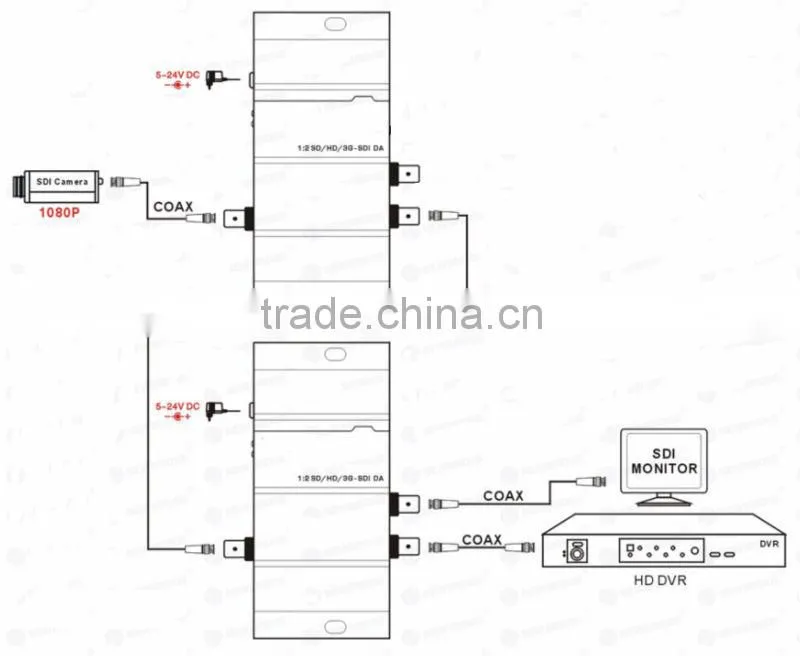

Application Diagram
