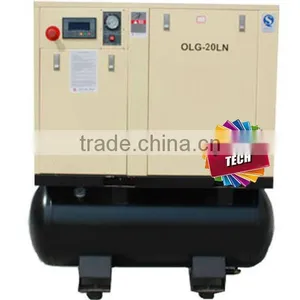

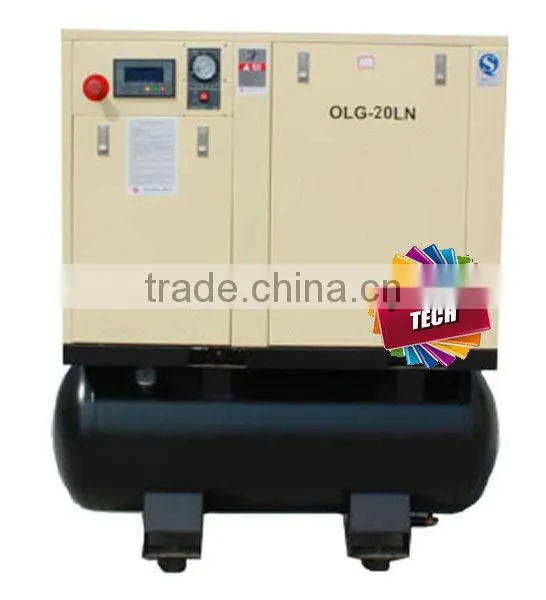

Name: OLG-20LN Integration Type Screw Air Compressor
Brand: Acecare
SKU: 137814469

ALL CATEGORIES

OLG-20LN Integration Type Screw Air Compressor

Send Inquiry to This Supplier

Mr. Steven Liu

Managing Director

Shenyang Acecare Technology Co., Ltd.

Shenyang, Liaoning, China

* Message

0/5000

* Email

Get quotes from multiple Verified Suppliers simultaneously.

NO.	project		unit	parameters
1	air displacement		(m³/min)/ MPa	2.4/0.7
				2.3/0.8
				2.2/1.0
				1.7/1.25
2	ambient temperature		°C	-5~+45
3	cooling temperature			fan cooling
4	exhaust air temperature		°C	≤ambient temperature+15
5	lubricant oil		L	12
6	drive model			belt
7	volume adjustment model			ON-OFF automatic adjustment
8	gas oil content		ppm	≤3
9	noise		dB(A)	65±2
10	brand of lubricant oil			ORIENT oil
11	safety valve work pressure		MPa	specified work pressure x1.1
12	motor	power	KW/HP	15/20
		speed	rpm	2930
		drive model		Y
		voltage/rate	V/Hz	380/50
		levels of protection/insulation rating		IP54,F stage
13	fan	power	kW	0.37
		voltage/rate	V/Hz	380/50
		speed	rpm	960
		fan power	m³/min	55
14	tank		L	410
15	size(L ×W ×H)		mm	1400×700×1870
16	net weight		kg	480
17	output interface		in	G3/4″

OLG-20LN Integration Type Screw Air Compressor
