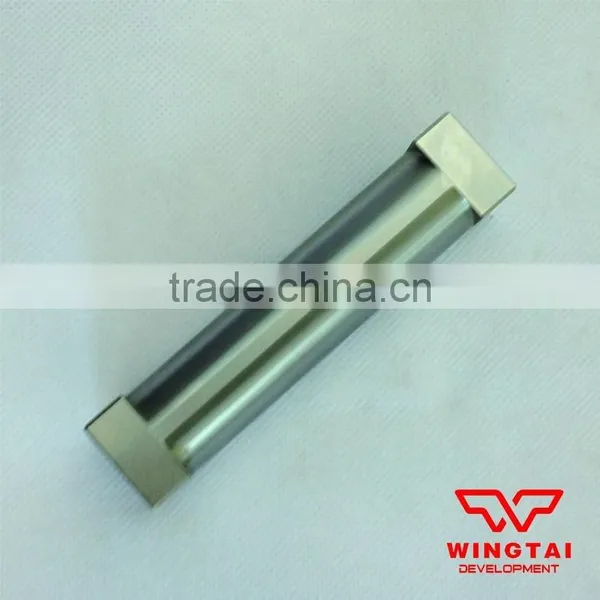

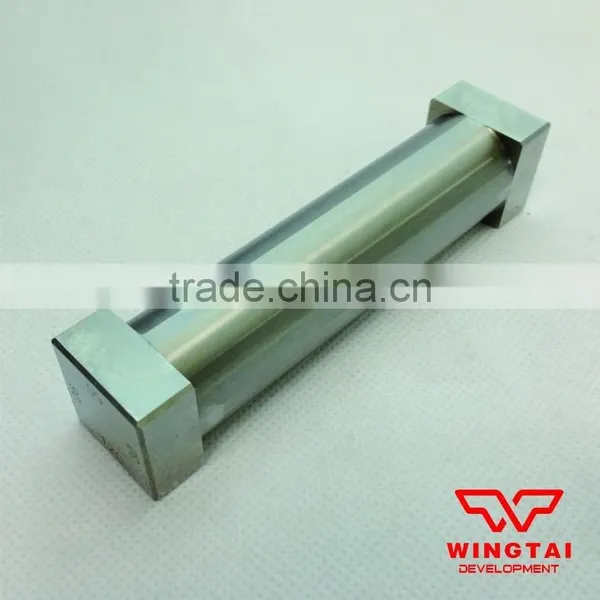

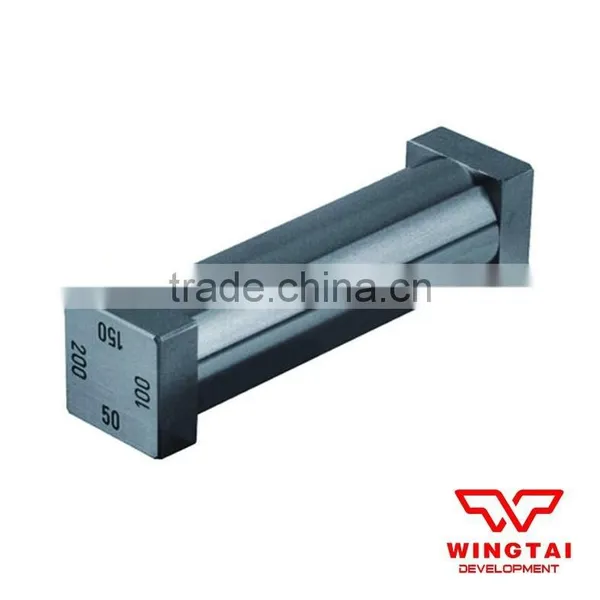

Stainless Steel Four Sides Wet Membrane Applicator
Main technical parameters:
1. Advanced stainless steel wear-resisting material

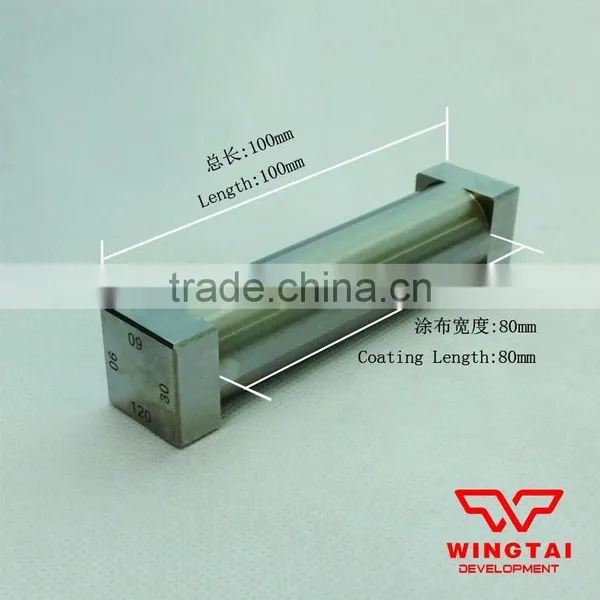

2. Effective Width of coating: 80 mm; Total Length: 100 mm
Description:
Multi-groove coating applicator is designed to use on dip-coating evenly paint on flat substrate, Binder and similar products. The multi-groove coating applicator combines the diversity of option and the accuracy of fixed groove coating machine on a device. It applies to water, acid and alkaline products.
Interstitial applicator is known as the highest quality one. (We can control the precision of coating in the range of ± 2µm.) Because the design is simple, solid structure; it is the easiest to clean and maintain.
Specification |
206/1:(5µm,10µm,15µm,20µm) |
206/2:(25µm,50µm,75µm,100µm) | |
206/3:(50µm,100µm,150µm,200µm) | |
206/4:(30µm,60µm,90µm,120µm) | |
206/5:(100µm, 200µm,300µm,400µm) | |
206/6:(50µm, 75µm,100µm,150µm) | |
206/7:(100µm, 150µm,200µm,250µm) | |
206/8:(250µm, 500µm,750µm,1000µm) |
Our Promise |
All the applicator before delivery have passed our lab test, together with the certificate of quality |
The portable plastic packing box and soft lining effective protection coating to prevent breakage |
Made of imported high-quality wear-resisting corrosion resistance stainless steel, ensure that there is only small tolerance, can be repeated use |

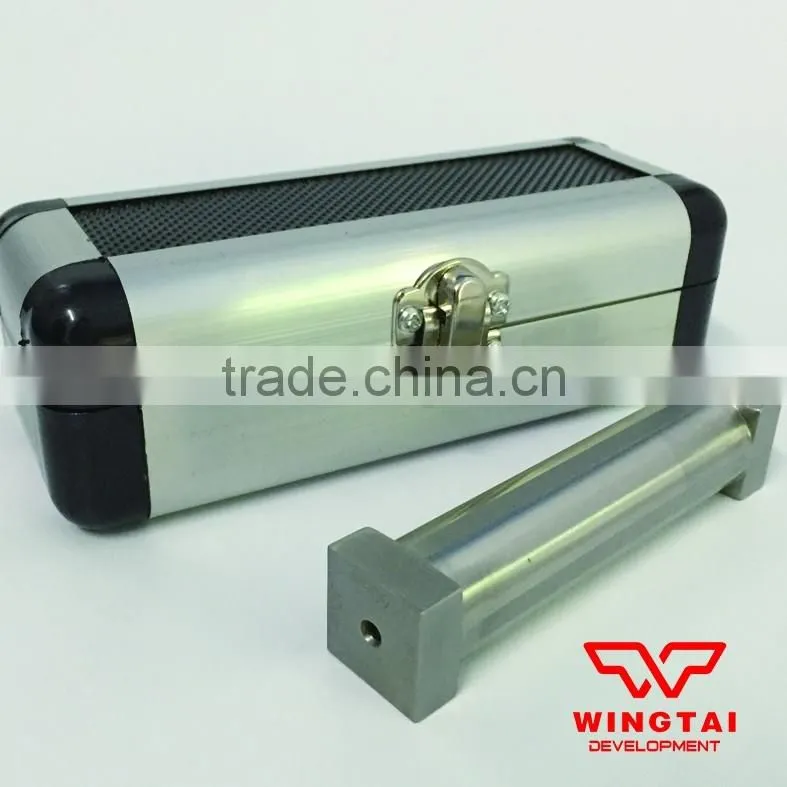

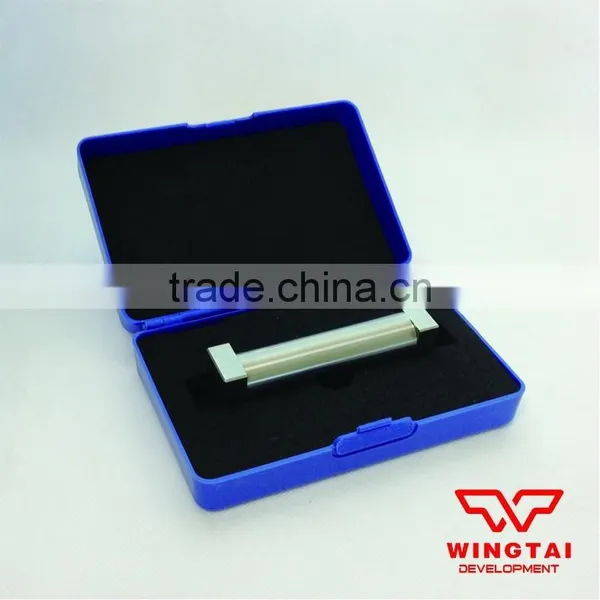

Two Packing: Plactic Box VS Aluminium Alloy Box
